| Performance and Scalability |
| Switching capacity (data rate, full duplex, stacking enabled) |
2.56 Tbps |
| Forwarding capacity (data rate, full duplex, stacking enabled) |
1.90 Bpps |

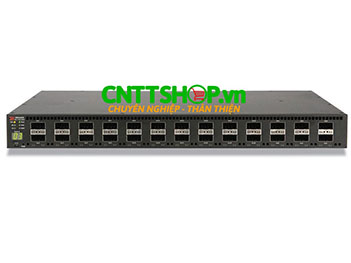

| Fixed ports: 40 Gbps QSFP+ |
26 |
| Modular slots |
1 |
| Modular ports: 40 Gbps QSFP+ (max.) |
6 |
| Latency |
550 ns |
| Dynamic packet buffer size |
12.2 MB |
| Base IPv4/IPv6 Layer 3 routing entitlement (Static Routing, RIP) |
Yes |
| Advanced IPv4/IPv6 Layer 3 routing (OSPF, BGP, PIM, PBR, VRF) |
With Certificate of Entitlement |
| Aggregated stacking bandwidth |
5.76 Tbps |
| Stacking density (maximum switches in a stack) |
12 |
| Stacking ports (maximum ports usable for stacking) |
Up to 12×40 GbE QSFP+ per switch |
| Maximum stacking distance (distance between stacked switches) |
10 km |
| Campus Fabric |
Fabric Control Bridge (CB) |
| Power |
| Power inlet (AC) |
C14 |
| Input voltage/frequency |
AC: 100 to 240 VAC @ 50 to 60 Hz DC: 40 to 60 VDC |
| Maximum power draw |
586 W |
| Power supply rated maximum |
2×500 W (AC or DC) |
|
Switch power utilization1 (25°C) Typical
Maximum
|
274 W
350 W
|
| Airflow |
front-to-back, or back-to-front (depending on power supplies and fans installed)
|
|
Switch heat dissipation1 (25°C) Typical
Maximum
|
935 BTU/hour
1,194 BTU/hour
|
| ENVIRONMENT |
| Net Weight (Kg) |
8.83 kg (19.43 lb) |
| Dimensions (mm) |
440 mm (17.323 in.) W 406.4 mm (16 in.) D 43.6 mm (1.730 in.) H; (1U) |
| Acoustics (25°C, min fan speed) |
62 dBA |
| MTBF (25°C) |
364,061 hours |
| SPECIFICATIONS |
| DRAM |
8 GB |
| NVRAM (Flash) |
2 GB |
| Packet buffer size |
12.2 MB |
| Maximum MAC addresses |
96,000 (switch image), 32,000 (router image) |
Maximum VLANs
Maximum PVLANs |
• 4,096
• 256 |
| Maximum STP (spanning trees) |
254 |
| Maximum VEs |
512 |
| Maximum routes (in hardware) |
• 128K (IPv4)
• 7K (IPv6)
• 16,000 (Next Hop Addresses) |
| Trunking |
• Maximum ports per trunk: 16
• Maximum trunk groups: 256×8 or 128×16 per stack |
| Maximum jumbo frame size |
9,216 bytes |
| QoS priority queues |
8 per port |
| Multicast groups |
• 8192 (Layer 2)
• 6144 (Layer 3) |
| FEATURE SETS |
| Layer 2 feature set |
• 802.1s Multiple Spanning Tree
• 802.1x Authentication with dynamic VLAN and ACLs
• Auto MDI/MDIX
• BPDU Guard, Root Guard
• Dual-Mode VLANs
• Dynamic VLAN Assignment
• Dynamic Voice VLAN Assignment
• Fast Port Span
• GVRP: GARP VLAN Registration Protocol
• IGMP Snooping (v1/v2/v3)
• IGMP Proxy for Static Groups
• IGMP v2/v3 Fast Leave
• Inter-Packet Gap (IPG) adjustment
• Link Fault Signaling (LFS)
• MAC Address Filtering
• MAC Learning Disable
• MLD Snooping (v1/v2)
• Multi-device Authentication
• Per-VLAN Spanning Tree (PVST/PVST+/PVRST)
• Mirroring—Port-based, ACL-based, MAC Filter-based, and VLAN-based
• PIM-SM v2 Snooping
• Port Loop Detection
• Private VLAN
• Remote Fault Notification (RFN)
• Single-instance Spanning Tree
• Trunk Groups (static, LACP)
• Uni-Directional Link Detection (UDLD)
• Metro-Ring Protocol MRP (v1, v2)
• Virtual Switch Redundancy Protocol (VSRP)
• Topology Groups
• Q-in-Q and selective Q-in-Q
• VLAN Mapping
• MCT (Ruckus Multi-Chassis Trunking)
• VXLAN |
| Base Layer 3 IP routing |
• IPv4 and IPv6 static routes
• RIP v1/v2, RIPng (IPv6)
• ECMP (up to 32 paths)
• Port-based Access Control Lists
• Layer 3/Layer 4 ACLs
• Host routes
• Virtual Interfaces
• Routed Interfaces
• Route-only Support
• Routing Between Directly Connected Subnets
• Virtual Route Redundancy Protocol (VRRP) |
| Premium Layer 3 IP routing (require license) |
• IPv4 and IPv6 dynamic routes
• OSPF v2, OSPF v3 (IPv6)
• PIM-SM, PIM-SSM, PIM-DM, PIM passive (IPv4/IPv6 multicast routing functionality)
• PBR
• VRRP-E (IPv4, IPv6)
• VRRPv3 (IPv6)
• BGP4, BGP4+ (IPv6)
• GRE
• IPv6 over IPv4 tunnels
• VRF (IPv4 and IPv6) |
| Quality of Service (QoS) |
• ACL Mapping and Marking of ToS/DSCP
• ACL Mapping and Marking of 802.1p
• ACL Mapping to Priority Queue
• ACL Mapping to ToS/DSCP
• Classifying and Limiting Flows Based on TCP Flags
• DiffServ Support
• Honoring DSCP and 802.1p
• MAC Address Mapping to Priority Queue
• Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP
• Priority Flow Control |
| Traffic management |
• ACL-based inbound rate limiting and traffic policies
• Broadcast, multicast, and unknown unicast rate limiting
• Inbound rate limiting per port
• Outbound rate limiting per port and per queue |
| STANDARD COMPLIANCE |
| ENVIRONMENT |
| Operating temperature |
−5°C to 45°C, 50°C at sea level (0°F to 113°F, 122°F at sea level) |
| Non-operating temperature |
−40ºC to 60ºC (−40ºF to 140ºF) |
| Operating humidity |
10% to 90% at 50ºC (122ºF) |
| Non-operating humidity |
10% to 90% at 60ºC (140ºF) |
| Operating altitude |
10,000 ft. (3,000 m) maximum |
| Non-operating altitude |
39,000 ft. (12,000 m) maximum |
| COMPLIANCE/CERTIFICATION |
| Electromagnetic emissions |
FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker; EN 61000-6-3 Emission Standard (supersedes: EN 50081-1) |
| Safety |
CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1 Second Edition; IEC 60950-1 Second Edition; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification, Requirements and User’s Guide; EN 60825-2 Safety of Laser Products—Part 2: Safety of Optical Fibre Communication Systems |
| Immunity |
EN 61000-6-1 Generic Immunity and Susceptibility (supersedes EN 50082-1); EN 55024 Immunity Characteristics (supersedes EN 61000-4-2 ESD); EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags |
| Environmental regulatory compliance |
RoHS-compliant (6 of 6); WEEE-compliant |
| Vibration |
IEC 68-2-36, IEC 68-2-6 |
| Shock and drop |
IEC 68-2-27, IEC 68-2-32 |
