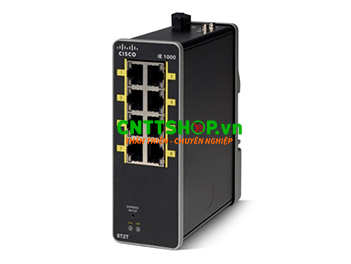

Switch Cisco Industrial IE-1000-6T2T-LM
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật
| Description | Specification |
| Configurations | |
| Ports |
6x Fast Ethernet Copper Downlink 2x Fast Ethernet Copper Uplink |
| Performance | |
| Maximum Switching Bandwidth | 5.6Gbps |
| Maximum Forwarding Bandwidth | 2.8Gbps |
| Hardware |
DRAM: 128 MB DDR2 without ECC Onboard flash memory: 160 MB |
| Alarm | Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC |
| Software features | LLDP, Cisco CDP aware, MSTP, STP Portfast, ICMP Vlans, static IP, Trust Ingress DSCP, COS, Priority Port, port - security, IGMP querier, DHCP server SNMP v2/v3, SNMP traps, syslog, IGMP snooping, DHCP snooping, BPDU guard, Etherchannel, Alarms, PoE capability, Smartport Macro, SPAN/Port Mirroring, Strom Control, EtherNet/IP (EDS) |
| Safety Certifications |
UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) UL/CSA/IEC/EN 61010-2-201 CE Marking |
| Hazardous Locations |
ANSI/ISA 12.12.01 (Class1, Div2 A-D)* EN 60079-0, -15 ATEX certificate (Class 1, Zone2 A-D)* IEC 60079-0, 15 (report only)* UL 60079-0, 15* CAN/CSA C22.2 No. 60079-0, -15* * Cabinet enclosure required |
| EMC Emissions and Immunity Compliance |
FCC 47 CFR Part 15 Class A EN 55022/CISPR 22 Class A EN 55016-1-1, -1-4, -2-3 Class AVCCI Class A RoHS compliance AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 CISPR11 Class A, CISPR22 Class A ICES 003 Class A KCC Marking (Korea) CE Marking RCM Marking (Australia/New Zealand) EAC Marking (Eurasian Conformity) Anatel (Brazil) China NAL IEC/EN/EN61000-4-2 (Electro Static Discharge), 8kV air/6kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m 80-2000MHz, 3V/m 2000-2700MHz) IEC/EN 61000-4-4 (Fast Transients - 2kV DC power, 2kV data line, 4kv earth) IEC/EN 61000-4-5 (Surge 2 kV/1 kV DC power, 2 kV shielded and unshielded data line) IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf 0.15-80MHz) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity 30A/m 60 sec, 300A/m 3 sec) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity 300A/m) IEC/EN 61000-4-29 (Voltage Dips Immunity) |
| Industry Standard |
IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 (Emissions for Industrial Environments) EN 61131-2 (PLC Zone A & B, EMC/EMI, environmental, mechanical) EN61326-1 (Industrial Controls) Marine –TAC (Temp-A, Humid-B, Vib-A, EMC-A, Enc-A) EN 50581 (RoHS) China RoHS EU WEEE NEMA TS-2 (EMC, environmental, mechanical) IP30 |
| Humidity |
IEC 60068 -2-3 IEC 60068-2-30 (Test Db) Relative humidity: 5% to 95% non-condensing |
| Operating Temperature |
-20 C to 70 C (vented enclosure operating) -20 C to 60 C (sealed enclosure operating) -16 C to 75 C (fan or blower-equipped enclosure operating) Operational altitude: Up to 13.8k ft IEC 60068-2-1IEC 60068-2-2 © 2020 IEC 60068-2-56 -40 C to +85 C (storage temperat IEC 60068-2-56 -40 C to +85 C (storage temperature) IEC 60068-2-14 (Test Nb) Storage altitude: Up to 15,000 ft |
| Mean Time Between Failure (MTBF) | Meantime between failure: 374,052 hours (42.7 years) |
| Power consumption | 4.2W |
| Connectors and cabling |
100BASE-FX MMF (2 km)—TBD with engineer input 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Dimensions (H x W x D) including DIN rail | 5.0” H x 1.8” W x 4.5” D (127mm H x 45.7mm W x 115mm D) |
| Weight | 1.25 lb (0.57 kg) |
Bạn đang cần tư vấn về sản phẩm: IE-1000-6T2T-LM ?
Siwtch có bộ nhớ DRAM là 128 MB DDR2 không có ECC và flash memory là 160 MB ạ
Mã switch công nghiệp Cisco này có không hỗ trợ PoE, Anh vui lòng để lại liên hệ để được tư vấn tốt nhất ạ
Báo giá switch công nghiệp Cisco đã được gửi vào mail, anh vui lòng check mail ạ
Switch công nghiệp Cisco này có hỗ trợ nguồn DC ạ, anh vui long để lại liên hệ để được tư vấn tốt nhất ạ
Anh có thể cấu hình và quản trị mã switch công nghiệp của Cisco này bằng giao diện Web GUI hoặc dòng lệnh CLI ạ
