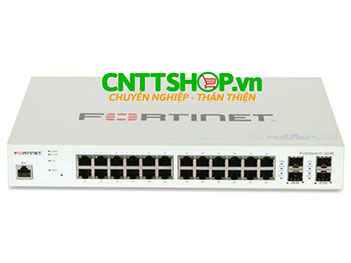

Fortinet SKU : FS-224E
Fortinet Product : FortiSwitch 224E
List Price : $850.00
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ
FortiSwitch FS-224E cung cấp các giải pháp kết nối mạng an toàn, đơn giản, khả năng mở rộng cao với các tính năng bảo mật, hiệu suất và khả năng quản lý các mối đe dọa như virut, DDOS... đến các doanh nghiệp vừa và nhỏ, chi nhánh doanh nghiệp hoặc văn phòng làm việc.
View Datasheet FS-224E |
FortiSwitch FS-224E có thể được quản lý trực tiếp từ giao diện FortiGate quen thuộc giống như các thiết bị Firewall của Fortigate thường dùng. Giao diện quản lý của Fortinet FS-224E cung cấp khả năng hiển thị và kiểm soát hoàn toàn tất cả người dùng và thiết bị trên mạng, bất kể họ kết nối như thế nào.
Hardware Specifications | |
Total Network Interfaces | 24x GE RJ45 ports and 4x GE SFP ports |
Dedicated Management 10/100 Port | 1 |
RJ-45 Serial Console Port | 1 |
Form Factor | 1 RU Rack Mount |
Power over Ethernet (PoE) Ports | - |
PoE Power Budget | - |
Mean Time Between Failures | > 10 years |
System Specifications | |
Switching Capacity (Duplex) | 56 Gbps |
Packets Per Second (Duplex) | 83 Mpps |
MAC Address Storage | 16 K |
Network Latency | < 1µs |
VLANs Supported | 4 K |
Link Aggregation Group Size | 8 |
Total Link Aggregation Groups | Up to number of ports |
Packet Buffers | 1.5 MB |
DRAM | 512 MB |
FLASH | 128 MB |
Dimensions | |
Height x Depth x Width (inches) | 1.73 x 9 x 12.99 |
Height x Depth x Width (mm) | 44 x 230 x 330 |
Weight | 4.78 lbs (2.17 kg) |
Environment | |
Power Required | 100–240V AC, 50–60 Hz |
Power Supply | AC Built in |
Redundant Power | Redundant AC |
Power Consumption (Average / Maximum) | 17.2 W / 17.3 W |
Heat Dissipation | 59.095 BTU/h |
Operating Temperature | 32–122°F (0–50°C) |
Storage Temperature | -4–158°F (-20–70°C) |
Humidity | 10–90% non-condensing |
Certification and Compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Product |
SKU |
Description |
1 GE SFP LX transceiver module |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP RJ45 transceiver module |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP SX transceiver module |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP RJ45 transceiver module |
1 GE SFP RJ45 transceiver module for systems with SFP/SFP+ slots |
|
1 GE SFP SX transceivers, MMF, -40–85°C operation |
1 GE SFP SX transceiver module, -40–85°C, over MMF, for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP LX transceivers, SMF, -40–85°C operation |
1 GE SFP LX transceiver module, -40–85°C, over SMF, for all systems with SFP and SFP/SFP+ slots |
|
1 GE SFP transceivers, 90 km range, -40–85°C operation |
1 GE SFP transceivers, -40–85°C operation, 90 km range for all systems with SFP slots |
Bạn đang cần tư vấn về sản phẩm: #FS-224E ?
Thiết bị chuyển mạch Fortinet FortiSwitch FS-224E không cấp PoE nhé bạn.
phụ kiện đi kèm theo thiết bị chuyển mạch Fortinet FS-224E FortiSwitch FS-224E bao gồm: dây nguồn, bộ rackmount kit, sách hướng dẫn, dây console
thiết bị chuyển mạch Fortinet FS-224E FortiSwitch FS-224E chỉ có tính năng DHCP Relay, do vậy không thể cấu hình DHCP server trên switch này đc
Switch fortint FS-224EFortiSwitch 224E 24 Ports GE RJ45, 4 SFP ports là switch lớp 3, ban có thể tham khảo thêm theo link bên dưới
https://cnttshop.vn/storage/Datasheet/FortiSwitch-Secure-Access-Series-datasheet.pdf
Đã báo giá 10 con switch Fortinet FS-224E Fortinet FortiSwitch 224E 24 Ports GE RJ45, 4 SFP ports, bạn vui lòng check mail nhé.
