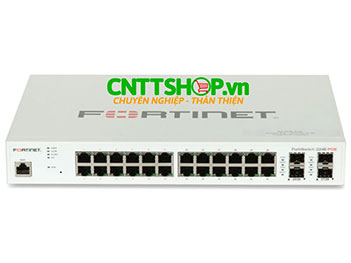

FS-224E-POE Fortinet FortiSwitch 224E-POE 24 Ports GE RJ45 (12 Port PoE+ 180W) 4 SFP ports
Fortinet SKU : FS-224E-POE
Fortinet Product : FortiSwitch 224E-POE
List Price : $1000.00
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ
Mô tả tổng quan
FortiSwitch FS-224E-POE cung cấp các giải pháp kết nối mạng an toàn, đơn giản, khả năng mở rộng cao với các tính năng bảo mật, hiệu suất và khả năng quản lý các mối đe dọa như virut, DDOS... đến các doanh nghiệp vừa và nhỏ, chi nhánh doanh nghiệp hoặc văn phòng làm việc.
FortiSwitch FS-224E-POE có thể được quản lý trực tiếp từ giao diện FortiGate quen thuộc giống như các thiết bị Firewall của Fortigate thường dùng. Giao diện quản lý của Fortinet FS-224E-POE cung cấp khả năng hiển thị và kiểm soát hoàn toàn tất cả người dùng và thiết bị trên mạng, bất kể họ kết nối như thế nào.

Thông số kỹ thuật FortiSwitch FS-224E-POE
Hardware Specifications |
Total Network Interfaces |
24x GE RJ45 ports and 4x GE SFP ports |
Dedicated Management 10/100 Port |
1 |
RJ-45 Serial Console Port |
1 |
Form Factor |
1 RU Rack Mount |
Power over Ethernet (PoE) Ports |
12 (802.3af/802.3at) |
PoE Power Budget |
180 W |
Mean Time Between Failures |
> 10 years |
System Specifications |
Switching Capacity (Duplex) |
56 Gbps |
Packets Per Second (Duplex) |
83 Mpps |
MAC Address Storage |
16 K |
Network Latency |
< 1µs |
VLANs Supported |
4 K |
Link Aggregation Group Size |
8 |
Total Link Aggregation Groups |
Up to number of ports |
Packet Buffers |
1.5 MB |
DRAM |
512 MB |
FLASH |
128 MB |
Dimensions |
Height x Depth x Width (inches) |
1.73 x 9 x 12.99 |
Height x Depth x Width (mm) |
44 x 230 x 330 |
Weight |
5.37 lbs (2.44 kg) |
Environment |
Power Required |
100–240V AC, 50–60 Hz |
Power Supply |
AC Built in |
Redundant Power |
Optional FRPS-740 |
Power Consumption (Average / Maximum) |
220.18 W / 223.57 W |
Heat Dissipation |
74.29554 BTU/h |
Operating Temperature |
32–122°F (0–50°C) |
Storage Temperature |
-4–158°F (-20–70°C) |
Humidity |
10–90% non-condensing |
Certification and Compliance |
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Nguồn sử dụng cho Switch Fortinet FS-224E-POE
External Redundant AC Power Supply |
FRPS-740 |
Redundant AC power supply for up to 2 units: FS-224D-FPOE, FS-248D-FPOE, FS-424D-FPOE, FS-448D-POE and FS-424D-POE |
License cho Switch Fortinet FS-224E-POE
FortiSwitch Advanced Features License |
FS-SW-LIC-200 |
SW License for FS-200 Series Switches to activate Advanced Features. |
Các loại Module quang sử dụng cho Switch Fortinet FS-224E-POE
Product
|
SKU
|
Description
|
1 GE SFP LX transceiver module
|
FG-TRAN-LX
|
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots
|
1 GE SFP RJ45 transceiver module
|
FG-TRAN-GC
|
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots
|
1 GE SFP SX transceiver module
|
FG-TRAN-SX
|
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
|
1 GE SFP RJ45 transceiver module
|
FS-TRAN-GC
|
1 GE SFP RJ45 transceiver module for systems with SFP/SFP+ slots
|
1 GE SFP SX transceivers, MMF, -40–85°C operation
|
FR-TRAN-SX
|
1 GE SFP SX transceiver module, -40–85°C, over MMF, for all systems with SFP and SFP/SFP+ slots
|
1 GE SFP LX transceivers, SMF, -40–85°C operation
|
FR-TRAN-LX
|
1 GE SFP LX transceiver module, -40–85°C, over SMF, for all systems with SFP and SFP/SFP+ slots
|
1 GE SFP transceivers, 90 km range, -40–85°C operation
|
FR-TRAN-ZX
|
1 GE SFP transceivers, -40–85°C operation, 90 km range for all systems with SFP slots
|
Bạn đang cần tư vấn về sản phẩm: FS-224E-POE ?
Switch Fortinet FS-224E-POE có tính năng routing bạn nhé
Datasheet của switch Fortinet FS-224E-POE đã được gửi vào mail của bạn, bạn vui lòng check giúp shop nha. Nếu có thắc mắc gì khác, hãy liên hệ với shop qua hotline 0906.051.599 để được tư vấn một cách chi tiết hơn bạn nhé
Báo giá của switch Fortinet FS-224E-POE đã được gửi vào mail của bạn. Bạn vui lòng check mail nhé. Nếu cần tư vấn hay có thắc mắc gì khác, bạn vui lòng liên hệ với shop nhé.
Anh vui lòng để lại hệ hoặc liên hệ tới hotline 0906051599 được tư vấn và báo giá tốt nhất nhé.
Thiết bị chuyển mạch Fortinet FortiSwitch FS-224E cấp PoE 12 cổng lên đến 30W mỗi cổng với tổng công suất 180W nhé bạn.
