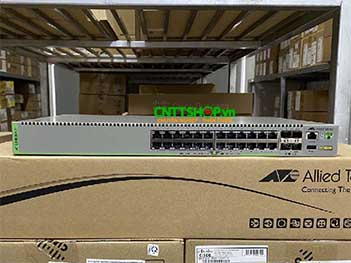

Switch Allied Telesis AT-GS980MX/28 24 port RJ45 1GbE + 4 uplink SFP/SFP+

Thiết bị chuyển mạch Switch Allied Telesis AT-GS980MX/28 có 24 cổng mạng tốc độ 10/100/1000MB , 4 cổng uplink quang tốc độ 10GbE kết nối nhanh và liền mạch đáp ứng nhiều yêu cầu kết nối của hệ thống. AT-GS980MX/28 hỗ trợ VCS, EPSR, AMF tương thích và đồng bộ với các hệ thống sử dụng thiết bị Allied Telesis

✓ Mã sản phẩm: AT-GS980MX/28

✓ Tình trạng: Còn Hàng

Switch Allied Telesis AT-GS980MX/28

Name: AT-GS980MX/28
Brand: Allied Telesis
SKU: AT-GS980MX/28
Availability: InStock
Rating: 5 (24 reviews)

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

Thông số kỹ thuật:

Datasheet Allied Telesis AT-GS980MX/28
Specifications
Compliant standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-LX / SX IEEE 802.3ab 1000BASE-T IEEE 802.3ah 1000BASE-BX10 IEEE 802.3bz 2.5GBASE-T / 5GBASE-T IEEE 802.3 ae 10GBASE-ER / LR / SR IEEE 802.3an 10GBASE-T IEEE 802.3x Flow Control IEEE 802.3az Energy-Efficient Ethernet IEEE 802.1D-2004 Spanning Tree, Rapid Spanning Tree IEEE 802.1Q-2003 GVRP IEEE 802.1Q-2005 VLAN Tagging, Multiple Spanning Tree IEEE 802.1X Port Based Network Access Control IEEE 802.1AB Link Layer Discovery Protocol IEEE 802.1AX-2008 Link Aggregation (static and dynamic) IEEE 802.1p Class of Service, priority protocol
Port	24x 10./100/1000MB 4X uplink SFP/SFP+ 1x RS232 (RJ45 connector) 1x USB 2.0 Type A
Performance
Maximum packet transfer capacity (entire device / 64Byte)	95.23 Mpps
Switching fabric	253Gbps
Flash memory	256MByte
Main memory	1GByte
Number of registered MAC addresses	16K
Number of VLAN registrations	4,094 pieces (VID = 1 to 4,094)
Number of IPv4 host (ARP) registrations	1K
Number of IPv4 route registrations	768
Support function	AMF member function, AMF edge node function, RIPv1 / v2, IPv4 static routing, hardware packet filter, multi-homing, VLAN (port-based / IEEE 802.1Q tag-based / IP subnet-based / protocol-based), multiple VLAN, GVRP, QoS ( IEEE 802.1p / policy-based / metering / shaping), port trunking (IEEE 802.3ad LACP / Manual Configuration), broadcast / multicast / unlearned unicast packet filtering, spanning tree (IEEE 802.1D / IEEE 802.1w / IEEE 802.1) s), BPDU guard, BPDU filter, spanning tree port fast, PVST + Compatibility, Ethernet ring protection (EPSR), EPSR enhanced recovery, port bandwidth limitation, port mirroring, port security, flow control, active fiber monitoring , LLDP, LLDP-MED, Voice VLAN, Loop Guard (LDF detection / MAC slashing detection / reception rate detection (QoS storm protection)), Packet storm protection, IEEE 802.1X authentication mode (Single Host / Multiple Host / Multiple Authentication), 802.1X encryption (MD5 / TLS / TLS / PEAP), dynamic VLAN, L3 mode enhanced guest VLAN, Auth-fail VLAN, multiple dynamic VLAN, multi-VLAN session, MAC address-based authentication, Supplicant MAC authentication, Web authentication, Promise Cass / Intercept Web authentication, 2-step authentication, Web Proxy for Web authentication, Port authentication setting template, Port authentication and DHCP server cooperation, Cable diagnosis, RADIUS client, TACACS + (Accounting / Authentication / Logging), 802.1X v1 / v2 / v3 Snooping , EAP / BPDU transparent, Jumbo frame compatible, LD-VCS (long distance-virtual chassis stack), Virtual chassis stack, switchport resiliency link, attack detection, DNS relay, DHCP client, DHCP snooping, Ping polling, ARP, proxy ARP, local proxy ARP, directed broadcast forwarding control, UDP broadcast helper, SMTP authentication, log ( External media output support), script, trigger, USB trigger, NTP client, Secure Shell, software / configuration file download by TFTP / Zmodem / HTTP, IPv6 Basic, IPv6 static routing, IPv6-SNMPv1 / v2c / v3, MLDv1 / v2 snooping , NTPv6 client, DHCPv6 server / client, DHCPv6-PD, RA guard, VRRP, HOL blocking prevention, Findme, UDLD
Power supply part
Rated input voltage	AC100-240V
Input voltage range	AC90-264V
Rated frequency	50 / 60Hz
Rated input current	1.0A
Maximum input current (measured value)	0.88A
Average power consumption	33W (maximum 43W
Average calorific value	120kJ / h (maximum 160kJ / h)
Environmental condition
Operating temperature	0-50 ℃
Humidity during operation	5 to 90% or less (no condensation)
Storage temperature	-25-70 ℃
Humidity during storage	5 to 95% or less (no condensation)

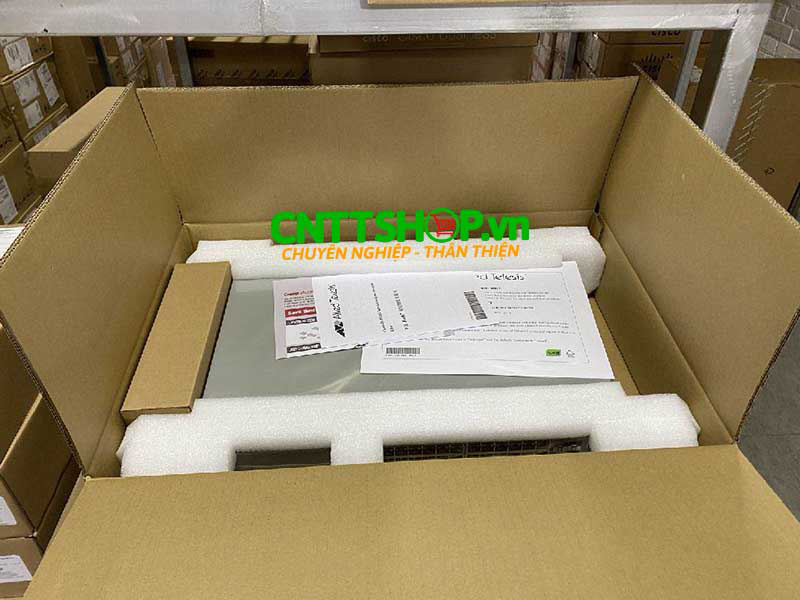

Package contents	Main unit, power cable, power cable disconnection prevention hook, rubber feet (4 pieces), 19-inch rack mount kit (1 set), before using this product, packing contents, English product information , product warranty (5 years), serial number sticker (2 sheets)
