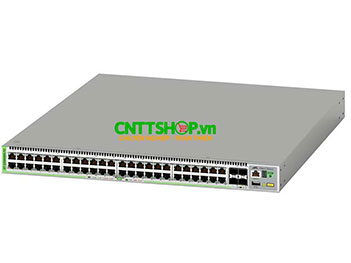

Switch Allied Telesis AT-GS980MX/52 48 port RJ45 1GbE, 4 uplink port 10GbE

Thiết bị chuyển mạch Switch Allied Telesis AT-GS980MX/52 có 48 cổng mạng tốc độ 1GbE, 4 cổng uplink quang tốc độ 10GbE tương thích nhiều thiết bị đầu cuối. Switch Allied Telesis AT-GS980MX/52 có hiệu năng cao, băng thông lớn, thiết kế bền bỉ chắc chắn đáp ứng nhiều yêu cầu kết nối của hệ thống.

✓ Mã sản phẩm: AT-GS980MX/52

✓ Tình trạng: Còn Hàng

AT-GS980MX/52 Datasheet

Switch Allied Telesis AT-GS980MX/52

Name: AT-GS980MX/52
Brand: Allied Telesis
SKU: AT-GS980MX/52
Availability: InStock
Rating: 5 (25 reviews)

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

Thông số kỹ thuật:

Compliant standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-LX / SX IEEE 802.3ab 1000BASE-T IEEE 802.3ah 1000BASE-BX10 IEEE 802.3bz 2.5GBASE-T / 5GBASE-T IEEE 802.3 ae 10GBASE-ER / LR / SR IEEE 802.3an 10GBASE-T IEEE 802.3x Flow Control IEEE 802.3az Energy-Efficient Ethernet IEEE 802.1D-2004 Spanning Tree, Rapid Spanning Tree IEEE 802.1Q-2003 GVRP IEEE 802.1Q-2005 VLAN Tagging, Multiple Spanning Tree IEEE 802.1X Port Based Network Access Control IEEE 802.1AB Link Layer Discovery Protocol IEEE 802.1AX-2008 Link Aggregation (static and dynamic) IEEE 802.1p Class of Service, priority protocol
Conformity standard	CE Safety standard UL60950-1, CSA-C22.2 No.60950-1 EMI standard VCCI Class A EU RoHS Directive
port	x48 10/100/1000MB RJ-45 connector X4 uplink SFP/SFP+ x1 RS-232 (RJ-45 connector) x1 USB port(USB2.0, type A (female))
Performance
Maximum packet transfer capacity (entire device / 64Byte)	179Mpps
Switching fabric	240Gbps
Flash memory	256MByte
Main memory	1GByte
Number of registered MAC addresses	16K
Number of VLAN registrations	4,094 pieces (VID = 1 to 4,094)
Number of IPv4 host (ARP) registrations	1K
Number of IPv4 route registrations	768
Power supply part
Rated input voltage	AC100-240V
Input voltage range	AC90-264V
Rated frequency	50 / 60Hz
Rated input current	1.5A
Maximum input current (measured value)	0.73A
Average power consumption	54W (maximum 65W)
Environmental condition
Operating temperature	0-50 ℃
Humidity during operation	5 to 90% or less (no condensation)
Storage temperature	-25-70 ℃
Humidity during storage	5 to 95% or less (no condensation)
Package contents	Main unit, power cable, power cable disconnection prevention hook, rubber feet (4 pieces), 19-inch rack mount kit (1 set), before using this product, packing contents, English product information, product warranty (5 years), serial number sticker (2 sheets)
