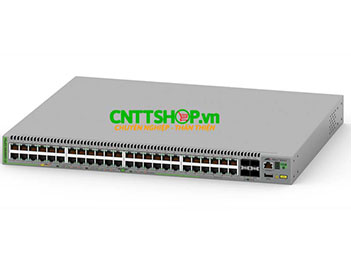

Switch Allied Telesis AT-GS980MX/52PSm 48 port RJ45 1GbE, PoE+, 4 uplink SFP/SFP+

Thiết bị chuyển mạch Switch Allied Telesis AT-GS980MX/52PSm 48 cổng mạng tốc độ 1GbE, cấp nguồn PoE+, 4 cổng Uplink SFP/SFP+. Switch Allied Telesis AT-GS980MX/52PS hỗ trợ AMF, VCS (Virtual Chassis Stack), hỗ trợ giao diện web giúp việc triển khai cài đặt dễ dàng.

✓ Mã sản phẩm: AT-GS980MX/52PSm

✓ Tình trạng: Còn Hàng

AT-GS980MX/52PSm Datasheet

Switch Allied Telesis AT-GS980MX/52PSm

Name: AT-GS980MX/52PSm
Brand: Allied Telesis
SKU: AT-GS980MX/52PSm
Availability: InStock
Rating: 5 (45 reviews)

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

Thông số kỹ thuật:

Compliant standard	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-LX / SX IEEE 802.3ab 1000BASE-T IEEE 802.3ah 1000BASE-BX10 IEEE 802.3bz 2.5GBASE-T / 5GBASE-T IEEE 802.3 ae 10GBASE-ER / LR / SR IEEE 802.3an 10GBASE-T IEEE 802.3x Flow Control IEEE 802.3az Energy-Efficient Ethernet IEEE 802.1D-2004 Spanning Tree, Rapid Spanning Tree IEEE 802.1Q-2003 GVRP IEEE 802.1Q-2005 VLAN Tagging, Multiple Spanning Tree IEEE 802.1X Port Based Network Access Control IEEE 802.1AB Link Layer Discovery Protocol IEEE 802.1AX-2008 Link Aggregation (static and dynamic) IEEE 802.1p Class of Service, priority protocol IEEE 802.3bz 2.5GBASE-T / 5GBASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet +
Conformity standard	CE Safety standard UL60950-1, CSA-C22.2 No.60950-1 EMI standard VCCI Class A EU RoHS Directive
port	x40 10/100/1000 BASE-T RJ-45 connector PoE-OUT x8 100/1000 / 2.5G / 5GBASE-T RJ-45 connector PoE-OUT x1 RS-232 (RJ-45 connector) x1 USB port (USB2.0, type A (female))
Performance
Maximum packet transfer capacity (entire device / 64Byte)	179 Mpps
Switching fabric	240Gbps
Flash memory	256MByte
Main memory	1GByte
Number of registered MAC addresses	16K
Number of VLAN registrations	4,094 pieces (VID = 1 to 4,094)
Number of IPv4 host (ARP) registrations	1K
Number of IPv4 route registrations	768
Power supply part
Rated input voltage	AC100-240V
Input voltage range	AC90-264V
Rated frequency	50 / 60Hz
Rated input current	6.0A
Maximum input current (measured value)	6.5A
Average power consumption	300W (maximum 590W)
Average calorific value	1060kJ / h (maximum 2100kJ / h)
PoE
Power supply method	Alternative A
Maximum power supply	Per port: 30W Whole device: 370W
Environmental condition
Operating temperature	0-50 ℃
Humidity during operation	5 to 90% or less (no condensation)
Storage temperature	-25-70 ℃
Humidity during storage	5 to 95% or less (no condensation)
Package contents	Main unit, power cable, power cable disconnection prevention hook, rubber feet (4 pieces), 19-inch rack / wall mount kit (1 set), before using this product, packing contents, English product information, Product warranty (5 years), serial number sticker (2 sheets)

Các sản phẩm mua kèm sử dụng cho AT-GS980MX/52PSm

Module quang 1GbE dùng cho Switch Allied Telesis AT-GS980MX

Module quang 10GbE dùng cho Switch Allied Telesis AT-GS980MX

Cáp stack 10G module dùng cho Switch Allied Telesis AT-GS980MX
