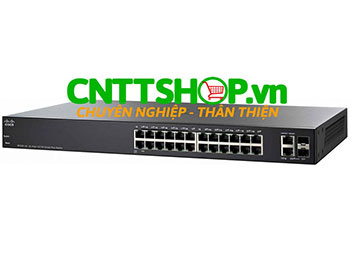

Switch Cisco SF220-24 24 10/100 Ports 2 x1G RJ45/SFP Uplink

Phân phối Thiết bị mạng Switch Cisco SF220-24 (SF220 24) Cisco Small Business 220 Series 24 10/100 ports, 2 Gigabit RJ45/SFP combo port chính hãng giá tốt
Mã sản phẩm: SF220-24
Tình trạng: Còn hàng
Check Giá List

Switch Cisco SF220-24 24 10/100 ports, 2 Gigabit RJ45/SFP combo port

Cisco Model     : SF220-24
Order product ID:   SF220-24-K9
Order product ID:   SF220-24-K9-EU
Bảo hành                       : 12 tháng
Made In                          : Chính hãng

Switch Cisco SF220-24 thuộc dòng sản phẩm Cisco Small Business 220 Series. Switch Cisco SF220-24 được thiết kế để hoạt động ở layer 2 trong mô hình OSI. Switch Cisco SF220-24 cung cấp 24 10/100 ports, 2 Gigabit RJ45/SFP combo port cho các kết nối LAN tại các doanh nghiệp vừa và nhỏ.

View Datasheet SF220-24

Chúng ta có thể sử dụng switch cisco SF220-24 để kết nối các máy tính, máy in, camera hoăc các thiết bị wifi trong 1 phòng ban, trong các doanh nghiệp nhỏ với số lượng user ít... hoặc sử dụng để mở rộng mạng LAN trong các doanh nghiệp.

Switch Cisco SF220-24

Thiết bị mạng switch cisco SF220-24 tự động chuyển chế độ cáp thẳng hoặc chéo (MDI/MDI-X). Các tính năng Address Learning and Aging, and Data Flow Control giúp tối ưu truyền dữ liệu. Thiết kế để bàn hoặc bắt Rack.

Các tính năng mới của Switch Cisco SF220-24

  • Simple and flexible management
  • Power over Ethernet Plus
  • A higher level of security and intelligence
  • Easy configuration and deployment
  • Flexible network management capabilities
  • Reliability and performance
  • Network security
  • IP telephony support
  • Optimal energy efficiency
  • Peace of mind and investment protection
  • Limited lifetime hardware warranty
  • World-class support

Thông số kỹ thuật của Switch Cisco SF220-24

General Information
Product Name SF220-24 24-Port 10/100 Smart Switch
Manufacturer Part Number SF220-24-K9-EU
Product Line Smart Plus
Product Series 220
Product Model SF220-24
Product Type Ethernet Switch
Interfaces/Ports
Total Number of Network Ports 24
Uplink Port Yes
Modular No
Stack Port No
Port / Expansion Slot Details 24 x Fast Ethernet Network

2 x Gigabit Ethernet Network

2 x Gigabit Ethernet Expansion Slot

Performance
Forwarding rate in millions of packets per second (mpps; 64-byte packets) 6.55
Switching capacity in Gigabits per second 8.8
Hardware
Buttons Reset button
Cabling type

Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5

Ethernet or better for 1000BASE-T

LEDs System, Link/Act, Speed
Flash 32 MB
CPU memory 128 MB
Packet buffer 4.1 Mb
Environmental
Dimensions (W x H x D) 440 x 44 x 201 mm
Unit weight 2.6 kg
Power 100-240 V, 50-60 Hz, Internal
Certifications UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick
Operating temperature 0-50° C
Storage temperature -20° C to +70° C
Operating humidity 10% to 90%, relative, noncondensing
Storage humidity 10% to 90%, relative, noncondensing
Green power (mode) EEE + Energy Detect
System power consumption

110V=8.2W

220V=9.2W

Power consumption (with PoE)

N/A

Heat dissipation (BTU/hr)

28.0

Fan (number)

No fan

Acoustic noise

N/A

MTBF @ 50°C (hours)

603,729

Package contents
Package contents
-  Cisco 220 Series Ethernet switch
-  Power cord
-  Mounting kit included in all SKUs
-  Console cable
-  Quick start guide

Các tính năng của Switch Cisco SF220-24

Layer 2 switching

MAC table

Up to 8,192 MAC addresses

Spanning Tree Protocol (STP)

Standard 802.1d Spanning Tree support, enabled by default

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP])

Multiple Spanning Tree instances using 802.1s (MSTP)

16 instances are supported

Port grouping

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

-  Up to 8 groups
-  Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

Load balance based on source and destination MAC address, or source and destination MAC/IP

VLAN

Support for up to 256 VLANs simultaneously

Port-based and 802.1Q tag-based VLANs

Management VLAN

Guest VLAN

Auto voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

QinQ VLAN

VLANs transparently cross a service provider network while isolating traffic among customers

Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)

Protocols for automatically propagating and configuring VLANs in a bridged domain

Head-Of-Line (HOL) blocking

HOL blocking prevention

Jumbo frame

Frame sizes up to 9216 supported

Loopback detection

Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP.

Automatic Media-Dependent Interface Crossover (MDIX)

Automatically adjusts transmit and receive pairs if an incorrect cable type (crossover or straight-through) is installed.

Security

ACLs

Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag

Support up to 512 rules

Port security

Creates the ability to lock source MAC addresses to ports; limits the number of learned MAC addresses

IEEE 802.1X (authenticator role)

802.1X: RADIUS authentication; guest VLAN;

Single-host, multiple-host, and multisession mode

RADIUS, TACACS+

Supports RADIUS and TACACS authentication; switch functions as a client

MAC address filtering

Supported

Storm control

Broadcast, multicast, and unknown unicast

DoS protection

DOS attack prevention

STP Bridge Protocol Data Unit (BPDU) Guard

This security mechanism protects the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port

Spanning Tree Loop Guard

This feature provides additional protection against Layer 2 forwarding loops (STP loops).

Secure Shell (SSH) Protocol

SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported

Secure Sockets Layer (SSL)

SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch

QoS

Priority levels

8 hardware queues per port

Scheduling

Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS)

Class of service

Port-based; 802.1p VLAN priority-based; IPv4/v6 IP precedence, Type of Service (ToS), and DSCP-based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS

Rate limiting

Ingress policer; egress shaping and rate control; per VLAN, per port, and flow-based

Congestion avoidance

A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization

Các loại Module quang Cisco sử dụng cho Switch Cisco SF220-24

pported SFP/SFP+ modules

SKU

Media

Speed

Maximum Distance

MGBBX1

Single-mode fiber

1000 Mbps

10 km

MGBSX1

Multimode fiber

1000 Mbps

500 m

MGBLH1

Single-mode fiber

1000 Mbps

40 km

MGBLX1

Single-mode fiber

1000 Mbps

10 km

MGBT1

UTP cat 5e

1000 Mbps

100 m

MFEFX1

Multimode fiber

100 Mbps

10 km

MFELX1

Single-mode fiber

100 Mbps

20 km

Để có cấu hình, yêu cầu kỹ thuật chi tiết của Switch Cisco SF220-24 cho vào hồ sơ tư vấn, thiết kế kỹ thuật hoặc cho vào hồ sơ mời thầu, quý khách vui long gửi email yêu cầu đến kd@cnttshop.vn

Option Sử Dụng Cho SF220-24
Module quang 1GE sử dụng cho Cisco SMB
Module quang SFP Cisco MGBSX1 1000BASE-SX 850nm 500m Multi Mode transceiver
#MGBSX1

List Price:$95

Module quang SFP Cisco MGBLX1 GE LX 1310nm 10KM Single Mode LC Duplex transceiver
#MGBLX1

List Price:$500
