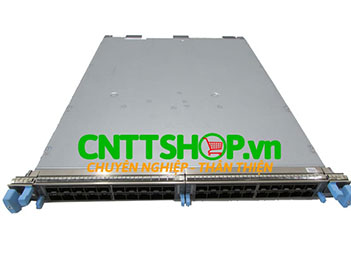

EX9200-40F Juniper 40 Ports 100FX/1000BASE-X SFP line card

Dimensions(W x H x D)

1.25 x 17 x 22 in (3.2 x 43.2 x 55.9 cm)

Port

40-port 10GbE SFP+ line card supporting MACsec AES-128 (AES-256 supported via software in a future release)

Junos OS Release Required

14.2R1 or later

Weight

16.2 lbs (7.3 kg)

IEEE Compliance

IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)

IEEE 802.1D-2004: Spanning Tree Protocol (STP)

IEEE 802.1p: Class-of-service (CoS) prioritization

IEEE 802.1Q: Virtual Bridged Local Area Networks

IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)

IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)

IEEE 802.3: 10BASE-T

IEEE 802.3u: 100BASE-T

IEEE 802.3ab: 1000BASE-T

IEEE 802.3z: 1000BASE-X

IEEE 802.3ae: 10-Gigabit Ethernet

IEEE 802.3ba: 40-Gigabit/100-Gigabit Ethernet

IEEE 802.3ah: Operation, Administration, and Maintenance (OAM)

IEEE 802.3ad: Link Aggregation Control Protocol (LACP)

IEEE 802.1ae: Media Access Control Security

Troubleshooting

• Debugging: CLI via console, Telnet, or SSH

• Diagnostics: Show, debug, and statistics commands

• Firewall-based port mirroring

• IP tools: Extended ping and trace

• Juniper Networks commit and rollback

Environmental Ranges

• Operating temperature: 32° to 104° F (0° to 40° C)

• Storage temperature: -40° to 158° F (-40° to 70° C)

• Operating altitude: Up to 10,000 ft (3,048 m)

• Relative humidity operating: 5 to 90% (noncondensing)

• Relative humidity nonoperating: 5 to 95% (noncondensing)

• Seismic: Designed to meet GmR-63, Zone 4 earthquake requirements

Product Number

Description

EX-SFP-1FE-FX

SFP 100BASE-FX Fast Ethernet Optics,
1,310 nm for 2 km transmission on MMF

EX-SFP-FE20KT13R15

SFP 100BASE-BX Fast Ethernet Optics,
Tx 1,310 nm/Rx 1,550 nm for 20 km
transmission on single strand of SMF

EX-SFP-FE20KT15R13

SFP 100BASE-BX Fast Ethernet Optics,
Tx 1,550 nm/Rx 1,310 nm for 20 km
transmission on single strand of SMF

EX-SFP-1FE-LX40K

SFP 100BASE-LX Fast Ethernet optics,
1310nm for 40km transmission on SMF

EX-SFP-1GE-LX40K

SFP 1000BASE-LX Gigabit Ethernet Optics,
1,310 nm for 40 km transmission on single
mode fber-optic (SMF)

EX-SFP-1GE-SX

SFP 1000BASE-SX Gigabit Ethernet
Optics, 850 nm for up to 550 m
transmission on MMF

EX-SFP-GE10KT13R15

SFP 1000BASE-BX Gigabit Ethernet
Optics, Tx 1,310 nm/Rx 1,550 nm for 10 km
transmission on single strand of SMF

EX-SFP-GE40KT15R13

SFP 1000BASE-BX Gigabit Ethernet
Optics, Tx 1,550 nm/Rx 1,310 nm for 40 km
transmission on single strand of SMF

EX-SFP-1GE-LH

SFP 1000BASE-LH Gigabit Ethernet
Optics, 1,550 nm for 70 km transmission
on SMF

EX-SFP-GE10KT13R14

SFP 1000BASE-BX Gigabit Ethernet
Optics, Tx 1,310 nm/Rx 1,490 nm for 10 km
transmission on single strand of SMF

EX-SFP-GE10KT15R13

SFP 1000BASE-BX Gigabit Ethernet
Optics, Tx 1,550 nm/Rx 1,310 nm for 10 km
transmission on single strand of SMF

EX-SFP-1GE-LX

SFP 1000BASE-LX Gigabit Ethernet Optics,
1,310 nm for 10 km transmission on SMF

EX-SFP-GE10KT14R13

SFP 1000BASE-BX Gigabit Ethernet
Optics, Tx 1,490 nm/Rx 1,310 nm for 10 km
transmission on single strand of SMF

EX-SFP-GE40KT13R15

SFP 1000BASE-BX Gigabit Ethernet
Optics, Tx 1,310 nm/Rx 1,550 nm for 40 km
transmission on single strand of SMF

EX-SFP-1GE-T

SFP 1000BASE-T 10/100/1000 Copper
Transceiver Module for up to 100 m
transmission on Cat5
