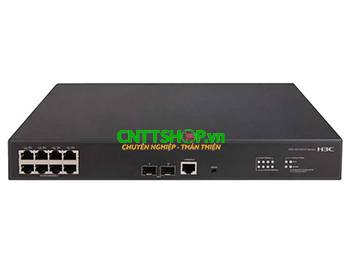

Thiết bị chuyển mạch H3C LS-5120V2-10P-PWR-LI-GL
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Switch H3C LS-5120V2-10P-PWR-LI-GL có 8 cổng đồng 10/100/1000BASE-T PoE+ (tổng công suất PoE là 125W) và 2 cổng quang 1000BASE-X SFP, cho tốc độ chuyển mạch lên đến 20Gbps.
Thông số kỹ thuật switch H3C LS-5120V2-10P-PWR-LI-GL
| Datasheet H3C LS-5120V2-10P-PWR-LI-GL | |
| Specification | |
| Fixed ports | 8x 100/1000BASE-T PoE+ Ports 2x 1G SFP ports |
| Management Ethernet ports | 1x RJ-45 console port |
| Performance | |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 15 Mpps |
| Feature | |
| VLAN | Port-based VLANQinQ Voice VLAN MAC VLAN |
| Link aggregation | 1G/10GE port aggregation Static aggregation Dynamic aggregation Multichassislink aggregation |
| MAC address table | Blackhole MAC Address MAC learning limit |
| Flow control | 802.3x flow control and half-duplex backpressure |
| DHCP | DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Option82 |
| Routing protocols | IPV4/IPV6 static routing RIP/ RIPng, OSPFV1/V2/V3 |
| Multicast | IGMP Snooping V1/V2/V3 MVR |
| QoS/ACL | Packet filter Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL Port-based speed limit Flow redirection Time-range |
| Stacking | Intelligent Resilient Framework 2 (IRF2) |
| Specification Dimensions | |
| Dimensions (H x W x D) | 4.36× 33 × 23 cm |
| Weight | ≤ 3 kg |
| Power | |
| Input voltage range | 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| Power consumption | MIN: 13W MAX:153 W |
| PoE | 125W |
| Operating temperature | 0ºC to 45ºC |
| Operating humidity | 10% RH to 95% RH, non-condensing |
