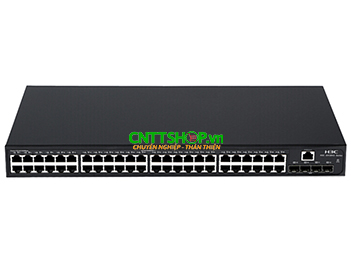

Switch H3C LS-5120V2-52P-PWR-LI-GL 48 Ports PoE+
Thiết bị chuyển mạch H3C LS-5120V2-52P-PWR-LI-GL (S5120V2-52P-PWR-LI) có 48 cổng 10/100/1000Mbps RJ45 hỗ trợ PoE+ (tổng cổng suất PoE dùng nguồn AC là 370W hoặc nguồn DC là 740W), 4 cổng quang 1G SFP, hỗ trợ nguồn AC hoặc nguồn DC.
Thông số kỹ thuật switch H3C LS-5120V2-52P-PWR-LI-GL
| Datasheet H3C LS-5120V2-52P-PWR-LI-GL | |
| Specification | |
| Fixed ports | 48x 100/1000BASE-T PoE+ Ports 4x GE/SFP ports |
| Management Ethernet ports | 1x RJ-45 console port |
| Performance | |
| Switching capacity | 104Gbps |
| Packet forwarding rate | 77.4Mpps |
| Feature | |
| VLAN | Port-based VLANQinQ Voice VLAN MAC VLAN |
| Link aggregation | 1G/10GE port aggregation Static aggregation Dynamic aggregation Multichassislink aggregation |
| MAC address table | Blackhole MAC Address MAC learning limit |
| Layer 2 ring network protocol | STP/RSTP/MSTP STP Root Protection Smart Link RRPP |
| Flow control | 802.3x flow control and half-duplex backpressure |
| DHCP | DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Option82 |
| QoS/ACL | Packet filter Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL Port-based speed limit Flow redirection Time-range |
| Routing protocols | IPV4/IPV6 static routing RIP/ RIPng, OSPFV1/V2/V3 |
| Multicast | IGMP Snooping V1/V2/V3 MVR |
| DNS | Static and Dynamic DNS IPV4 and IPV6 |
| Stacking | Intelligent Resilient Framework 2 (IRF2) |
| Specification Dimensions | |
| Dimensions (H x W x D) | 4.36× 44 × 26 cm |
| Weight | ≤ 6 kg |
| Power | |
| Input voltage range | AC: 100 VAC to 240 VAC @ 50 Hz/60 Hz DC: -48V~-60V |
| Power consumption | MIN: AC: 36W, DC: 26W MAX: AC: 467W (PoE 370W), DC: 807W (PoE 740W) |
| Operating temperature | 0ºC to 45ºC |
| Operating humidity | 10% RH to 95% RH, non-condensing |
