Thiết bị chuyển mạch H3C LS-5130S-28S-LI-GL
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|

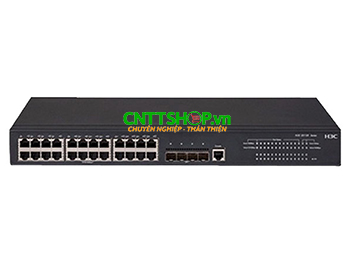

Switch H3C LS-5130S-28S-LI-GL (S5130S-28S-LI) có 24 cổng đồng 1GE RJ45 và 4 cổng uplink quang 1G/10G SFP+. Tốc độ chuyển mạch lên đến 128Gbps, khả năng chuyển tiếp gói tin lên đến 96Mpps, băng thông stacking tối đa 80Gbps.
Thông số kỹ thuật switch H3C LS-5130S-28S-LI-GL
| Datasheet H3C LS-5130S-28S-LI-GL | |
| Specification | |
| Fixed ports | 24-port 10/100/1000Base-T 4-port SFP+ |
| Management Ethernet ports | 1x RJ-45 console port |
| Performance | |
| Switching capacity | 128 Gbps |
| Packet forwarding rate | 96 Mpps |
| Maximum Stacking bandwidth | 80Gbps |
| MAX Stack member | 9 |
| Feature | |
| VLAN | Port-based VLAN QinQ Voice VLAN MAC VLAN |
| Link aggregation | GE/10GE port aggregation Static aggregation Dynamic aggregation M-LAG |
| Stacking | Intelligent Resilient Framework 2 (IRF2) |
| MAC address table | Blackhole MAC address MAC learning limit |
| Flow control | 802.3x flow control and half-duplex backpressure |
| ARP | ARP Detection ARP speed limit |
| DHCP | DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Option82 |
| DNS | Static and Dynamic DNS IPV4 and IPV6 |
| Routing protocols | IPV4/IPV6 static routing RIP/RIPng, OSPFV1/V2/V3 |
| Layer 2 ring network protocol | STP/RSTP/MSTP STP Root Protection Smart Link RRPP |
| QoS/ACL | Packet filter Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL Port-based speed limit Flow redirection Time-range |
| Security | Hierarchical user management and password protection MAC-based authentication 802.1X SSH2.0 Port isolation IP source guard HTTPs EAD RADIUS authentication HWTACACS authentication |
| Specification Dimensions | |
| Dimensions (H x W x D) | 4.36 × 44 × 16 mm |
| Weight | ≤ 2.5 kg |
| Power | |
| Input voltage range | 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| Power consumption | MIN AC: 10W MAX AC: 24W |
| Operating temperature | 0ºC to 45ºC |
| Operating humidity | 10% RH to 95% RH, non-condensing |
Bạn đang cần tư vấn về sản phẩm: LS-5130S-28S-LI-GL ?
