| Product Configurations |
| Device Structure |
Desktop |
| Physical Port |

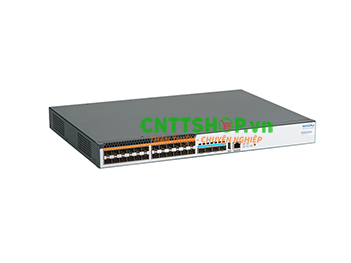

24 x 100/1000M SFP interfaces, 4 x 10G SFP+ interfaces |
| Extension Slot |
N/A |
| Memory |
256MB Flash, 512MB RAM. |
| RJ45 Console Port |
1 |
| USB Port |
1 |
| Power Supply |
One Fixed DC, dual DC input |
| Intelligent Fans |
Yes |
| Performance Parameters |
| Switching capability |
128Gbps |
| Throughput |
95.2Mpps |
| Jumbo |
12K |
| VLAN Entry |
4K |
| MAC Entry |
16K |
| Routing Entry |
496 |
| ACL Entry |
2K |
| Packet Buffer |
12Mbit |
| Anti-static |
Yes |
| Anti-lightning |
Yes |
| MTBF |
>80000 hours |
| Physical Index |
| Dimension (W×D×H) (mm) |
442 x 320 x 44.2 |
| Power Supply |
| Power Input |
AC 100-240V, 50-60Hz |
| Power Consumption (MAX) |
≤75W |
| POE Power Consumption (MAX) |
N/A |
| Environment |
| Working Temperature |
0℃～50℃ |
| Humidity |
10～90%, non-condensing |
| Software Features |
| Standard L2 protocol |
LAN |
Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback, Port Energy Control, Loopback interface, Null interface |
| MAC address aging time, Mac address learning on|off, Mac address learning limitation, Mac address VLAN bunding, MAC debug |
| VLAN, VLAN PVID, VLAN interface, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, VLAN Debug |
| STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard |
| G.8032(ERPSv1&v2) |
| Static Multicast, IGMP Snooping |
| LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug |
| Error-disable based on bpduguard|Dai|DHCP Snooping|Link-Flap|Loopback- detect|Port Security|Storm Control|Transceiver Power, Error-disable recovery |
| ULFD, Track, Loopback Detection, Loopback Debug |
| Standard L3 protocol |
Routing Protocol |
Static route, RIP v1/v2, OSPFv2, Policy Route, VRRP |
| DHCP |
DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DHCP Option51/82 |
| Stacking |
VST |
VST Member, VST Domain, VST Member Priority, VSL Channel |
| MAD |
MAD LACP, MAD Fast-hello |
| Network security |
Port Security |
Port Security On aging|deny|permit|violation|ACL |
| Network Security |
IP Source Guard, DHCP Snooping, Host Guard, Dynamic ARP Inspection |
| Access Control List |
Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, Standard Hybrid ACL, extended Hybrid ACL, Standard IPv6 ACL, extended IPv6 ACL |
| Anti-attack |
Anti-attack detect|drop|flood|log |
| AAA |
Authentication, Authorization, Accounting, Radius, TACACS, 802.1x |
| QoS |
Flow Classification |
802.1P priority, DSCP priority |
| Traffic Speed Control |
Rate Limit, Traffic Shaping |
| Congestion Management |
SP, RR, WDRR, SP+WRR |
| Congestion Avoidance |
Tail-drop, RED, WRED |
Management |
Network Management |
SNMP v1/v2/v3, MIB, RMON, SYSLOG, DNS, CLI, Telnet, FTP/TFTP, Debug |
| Network Monitoring |
SPAN, sFlow, LLDP, IP-SLA Based On ICMP-echo|ICMP-path-echo|ICMP- path-jitter|VoIP jitter|UDP echo |
