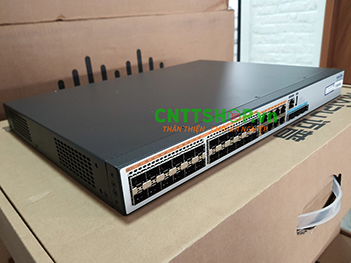

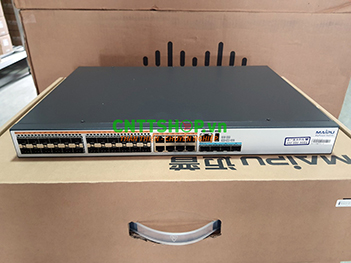

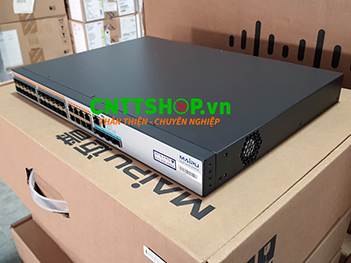

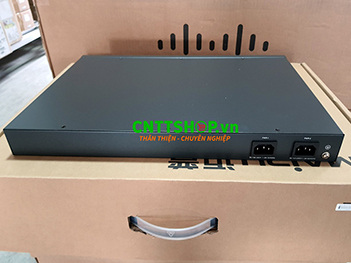

Maipu Switch S4230-36GTXF-AC
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật
| Product configuration | |
| Device Structure | Desktop |
| Physical Port | 24*1000M SFP optical interfaces, 8*10/100/1000M electric interfaces, 4*10G SFP+ interfaces, Dual AC Power Supply. |
| Memory | 256MB Flash, 1GB RAM |
| RJ45 Console Port | 1 |
| USB Port | 1 |
| Power Supply | Dual AC Power Supply |
|
Intelligent Fans |
Yes |
| Performance parameter | |
| Switching capability (Gbps) | 144Gbps |
| Throughput (Mpps) | 107Mpps |
| Jumbo | 12K |
| VLAN Entry | 4K |
| MAC Entry | 32K |
| Routing Entry | 12K |
| Multicast Entry | 6K |
| ACL Entry | 4K |
| Packet Buffer | 16Mbit |
| Anti-static | Yes |
| Anti-lightning | Yes |
| MTBF | >100000 hours |
| Physical Index | |
| Dimension (W×D×H) mm | 442*320*44.2 |
| Power Supply | |
| Power Input |
AC 100-240V, 50-60Hz |
| Power Consumption (MAX) | ≤75W |
| Environment | |
| Working Temperature | 0℃～50℃ |
| Humidity | 10～90%, non-condensing |
| Software Features | |
| Standard L2 Protocol |
- Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback, Port Energy Control, Loopback interface, Null interface. - MAC address aging time, Mac address learning on|off, Mac address learning limitation, Mac address VLAN bunding, MAC debug - VLAN, VLAN PVID, VLAN interface, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, VLAN Debug - STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard - G.8032(ERPSv1&v2) - Static Multicast, IGMP Snooping, IGMP Snooping Proxy - LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug - Error-disable based on bpduguard|Dai|DHCP Snooping|Link-Flap|Loopback-detect|Port Security|Storm Control|Transceiver Power, Error-disable recovery - ULFD, Track, Loopback Detection, Loopback Debug
|
| Standard L3 Protocol |
- Standard L3 Protocol - BFD with Static|RIP|OSPF|BGP|ISIS - IGMP, PIM-SM - DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DHCP Option51/82, DHCPv6 |
| Stacking |
- VST Member, VST Domain, VST Member Priority, VSL Channel - MAD LACP, MAD Fast-hello |
| Network Security |
- Port Security On aging|deny|permit|violation|ACL - IP Source Guard, DHCP Snooping, Host Guard, Dynamic ARP Inspection - Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, Standard Hybrid ACL, extended Hybrid ACL, Standard IPv6 ACL, extended IPv6 ACL - Anti-attack detect|drop|flood|log - Authentication, Authorization, Accounting, Radius, TACACS, 802.1x |
| QoS |
- 802.1P priority, DSCP priority - Rate Limit, Traffic Shaping - SP, RR, WDRR, SP+WRR - Tail-drop, RED, WRED |
| Management | SNMP v1/v2/v3, MIB, RMON, SYSLOG, DNS, CLI, Telnet, FTP/TFTP, Debug |
Các mô hình mạng điển hình sử dụng Maipu S4230 Series
Mạng LAN Campus
ISP FTTH Network
Bạn đang cần tư vấn về sản phẩm: S4230-36GTXF-AC ?
