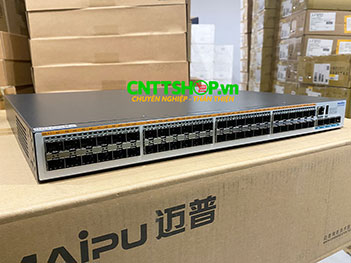

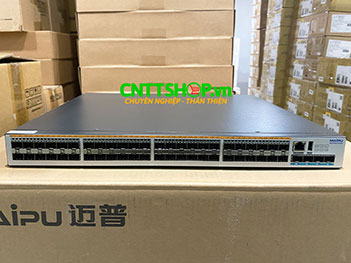

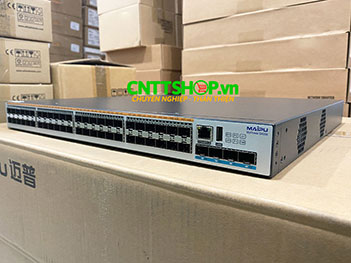

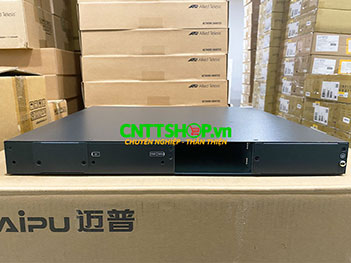

Maipu Switch S4330-54GXF
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật
| Product configuration | |
| Device Structure | Desktop |
| Physical Port | 48*100/1000M SFP interfaces, Four 10G SFP+ interfaces, One Extension Slot, Dual Power Slots. |
| Memory | 256MB Flash, 1GB RAM |
| RJ45 Console Port | 1 |
| USB Port | 1 |
| 10G Extension Slots | 1 |
| Power Supply Slots | Dual |
|
Intelligent Fans |
Yes |
| Performance parameter | |
| Switching capability (Gbps) | 216Gbps |
| Throughput (Mpps) | 160.7Mpps |
| Jumbo | 12K |
| VLAN Entry | 4K |
| MAC Entry | 32K |
| Routing Entry | 12K |
| Multicast Entry | 6K |
| ACL Entry | 4K |
| Packet Buffer | 16Mbit |
| Anti-static | Yes |
| Anti-lightning | Yes |
| MTBF | >100000 hours |
| Physical Index | |
| Dimension (W×D×H) mm | 442*420*44.2(mm) |
| Power Supply | |
| Power Input |
AC 100-240V, 50-60Hz |
| PoE Power consumption (MAX) |
N/A |
| Environment | |
| Working Temperature | 0℃～50℃ |
| Humidity | 10～90%, non-condensing |
| Software Features | |
| LAN |
- Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback, Port Energy Control, Loopback interface, Null interface - MAC address aging time, Mac address learning on|off, Mac address learning limitation, Mac address VLAN bunding, MAC debug - VLAN, VLAN PVID, VLAN interface, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, VLAN Debug - STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard - G.8032(ERPSv1&v2) - Static Multicast, IGMP Snooping, IGMP Snooping Proxy - LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate - Error-disable based on bpduguard|Dai|DHCP Snooping|LinkFlap|Loopback-detect|Port Security|Storm Control|Transceiver Power, - ULFD, Track, Loopback Detection, Loopback Debug |
| Routing Protocol |
Static route, RIP v1/v2, RIPng, OSPFv2, OSPFv3, BGP, BGPv6, ISIS, VRRP, |
| BFD |
BFD with Static|RIP|OSPF|BGP|ISIS |
| L3 Multicast |
IGMP, PIM-SM |
| DHCP |
DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DHCP |
| VST | VST Member, VST Domain, VST Member Priority, VSL Channel |
| MAD | MAD LACP, MAD Fast-hello |
| Port Security | Port Security On aging|deny|permit|violation|ACL |
| Network Security | IP Source Guard, DHCP Snooping, Host Guard, Dynamic ARP Inspection |
| Access Control List | Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, Standard Hybrid ACL, extended Hybrid ACL, Standard IPv6 ACL, extended IPv6 ACL |
| Anti-attack | Anti-attack detect|drop|flood|log |
| AAA | Authentication, Authorization, Accounting, Radius, TACACS, 802.1x |
| Flow Classification | 802.1P priority, DSCP priority |
| Traffic Speed Control | Rate Limit, Traffic Shaping |
| Congestion Management | SP, RR, WDRR, SP+WRR |
| Congestion Avoidance | Tail-drop, RED, WRED |
| Network Management | SNMP v1/v2/v3, MIB, RMON, SYSLOG, DNS, CLI, Telnet, FTP/TFTP, Debug |
| Network Monitoring | SPAN, sFlow, LLDP, IP-SLA Based On ICMP-echo|ICMP-path-echo|ICMPpath-jitter|VoIP jitter|UDP echo |
| IEEE Standard- |
- IEEE 802.3 (10BASE-T) IEEE 802.3u (100BASE-T) - IEEE 802.3z (1000BASE-X) IEEE 802.3ab (1000BASE-T) - IEEE 802.3ae (10G BASE-X) IEEE 802.1x (port authentication) - IEEE 802.3ad (Link Aggregation) IEEE 802.3x (Flow Control) - IEEE802.3az (Energy Efficient Ethernet) - IEEE 802.1d (STP) IEEE 802.1Q (Virtual LAN) - IEEE 802.1w (RSTP) IEEE 802.1s (MSTP) - IEEE 802.1p (Cos priority) |
| MyPower S4330 Series Host | |
| S4330-30TXF | 24*10/100/1000M electric interfaces, Four 10G SFP+ interfaces, One Extension Slot, Dual Power Slots. |
| S4330-30TXP | 24*10/100/1000M electric interfaces, Four 10G SFP+ interfaces, One Extension Slot, Dual Power Slots, PoE&PoE+ Enable. |
| S4330-54TXF | 48*10/100/1000M electric interfaces, Four 10G SFP+ interfaces, One Extension Slot, Dual Power Slots |
| S4330-54TXP | 48*10/100/1000M electric interfaces, Four 10G SFP+ interfaces, One Extension Slot, Dual Power Slots, PoE&PoE+ Enable |
| S4330-54GXF | 48*100/1000M SFP interfaces, Four 10G SFP+ interfaces, One Extension Slot, Dual Power Slots |
| S4330-54TGXF | 36 100/1000M electric interfaces, 16 1000M SFP interfaces, four 10G SFP+ interfaces, One Extension Slot, Dual Power Slots |
| Power Supply | |
| AD120-1S005E | 120W AC Power Supply Module (For Non-POE model) |
| AD500-1D005E | 500W AC Power Supply Module (For POE model) |
| DD250-5D005E | 120W DC Power Supply Module(For Non-POE) |
| DD500-5D005E | 500W DC Power Supply Module(For POE model) |
| 10G Extension Module | |
| SM4C-2XGEF | 2-Port 10G Extension Module |
| Stacking Cable | |
| SM4C-2XGEF-15 | High speed stacking cable, SFP+ to SFP+,10Gbps, L=1.5m |
| SFP-STACK-30 | High speed stacking cable, SFP+ to SFP+,10Gbps, L=3.0m |
| SFP-STACK-50 | High speed stacking cable, SFP+ to SFP+,10Gbps, L=5.0m |
Các mô hình mạng điển hình sử dụng Maipu S4330 Series
Mạng LAN Campus
ISP FTTH Network
Bạn đang cần tư vấn về sản phẩm: S4330-54GXF ?
