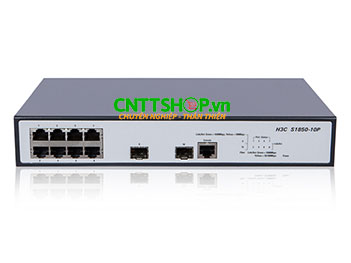

Switch H3C Managed SMB-S1850-10P-GL
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thiết bị chuyển mạch H3C managed SMB-S1850-10P-GL (S1850-10P) với 10 cổng Gigabit Ethernet (8 cổng 1GE và 2 khe SFP 1G), 1 cổng RJ-45 console, thiết kế không quạt êm ái. Tốc độ chuyển mạch lên đến 20 Gbps, tốc độ chuyển gói tin lên đến 15 Mpps. Swicth có đầy đủ tính năng Layer 2 và 1 vài tính năng Layer 3 cơ bản: Static IPv4/IPv6 routing.
Thông số kỹ thuật switch H3C SMB-S1850-10P-GL
| Datasheet H3C SMB-S1850-10P-GL | |
| Specification | |
| Fixed ports | 8x 10/100/1000BaseT Ethernet ports 2x 100/1000 BASE-X SFP ports |
| Management Ethernet ports | 1x RJ-45 console port to access limited CLI port |
| Fan | Fanless |
| Performance | |
| Switching capacity | 20 Gbps |
| Packet forwarding rate | 15 Mpps |
| MAC table | 8K |
| Lightning protection level | 6 KV |
| Feature | |
| Layer 2 switching | Spanning Tree Protocol (STP): Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP). BPDU filtering: Drops BPDU packets when STP is enabled globally but disabled on a specific port. |
| Layer 3 switching | Address Resolution Protocol (ARP): Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network. DHCP relay: Simplifies management of DHCP addresses in networks with multiple subnets. |
| Layer 3 routing | Static IPv4/IPv6 routing: Provides basic routing (supporting up to 32 static routes and 8 virtual VLAN interfaces); allows manual routing configuration. |
| Specification Dimensions | |
| Dimensions (H × W × D) | 4.4 × 26.6 × 16.2 cm |
| Weight | 0.9 kg |
| Power | |
| AC input voltage | AC：100V～240V AC，50/60Hz |
| Power consumption | ≤ 9W |
| Operating temperature | 0ºC to 40ºC Short-term operating temperature : 0ºC to 45ºC |
| Operating humidity | 5% RH to 95% RH, non-condensing |
Bạn đang cần tư vấn về sản phẩm: SMB-S1850-10P-GL ?
