Thiết bị chuyển mạch H3C Managed SMB-S1850-10P-GL
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|

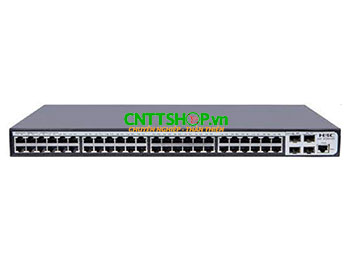

Switch managed H3C SMB-S1850-52P-GL (S1850-52P) bao gồm 48 cổng 10/100/1000Mbps Ethernet, 4 khe cắm SFP 100/1000Mbps, 1x Fan. Switching capacity 104 Gbps, forwarding rate 78 Mpps.
H3C SMB-S1850-52P-GL là bộ chuyển mạch Gigabit Ethernet được thiết kế cho các doanh nghiệp vừa và nhỏ. Switch hỗ trợ nhiều giao thức mạng khác nhau, bao gồm IPv4/IPv6, Spanning Tree, giao thức LACP và chất lượng dịch vụ (QoS). Switch hỗ trợ các tính năng nâng cao như Vlan, bảo mật mạng, giúp nó trở thành một giải pháp hiệu quả về chi phí để xây dựng một mạng an toàn, đáng tin cậy và hiệu suất cao.
Thông số kỹ thuật switch H3C SMB-S1850-52P-GL
| Datasheet H3C S1850-52P | |
| Specification | |
| Fixed ports | 48x 10/100/1000Mbps Ethernet ports 4x 100/1000Mbps SFP ports |
| Management Ethernet ports | 1x RJ-45 console port to access limited CLI port |
| Fan | 1x Fan |
| Performance | |
| Switching capacity | 104 Gbps |
| Packet forwarding rate | 78 Mpps |
| MAC table | 16K |
| Lightning protection level | 6 KV |
| Feature | |
| Layer 2 switching | Spanning Tree Protocol (STP): Supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP). BPDU filtering: Drops BPDU packets when STP is enabled globally but disabled on a specific port. |
| Layer 3 routing | Static IPv4/IPv6 routing: Provides basic routing (supporting up to 32 static routes and 8 virtual VLAN interfaces); allows manual routing configuration. |
| Security | Advanced access control lists (ACLs) Enables network traffic filtering and enhances network control using MAC- and IP-based ACLs; time-based ACLs allow for greater flexibility with managing network access. IEEE 802.1X and RADIUS network logins Controls port-based access for authentication and accountability. Secure Socket Layer (SSL) Encrypts all HTTP traffic, allowing safe access to the browser-based management GUI in the switch. Port Isolation The port isolation feature isolates Layer 2 traffic for data privacy and security without using VLANs. This feature can also be used to isolate the hosts in a VLAN from one another. Port Security Combines and extends IEEE 802.1X and MAC authentication to provide MAC-based network access control. |
| Specification Dimensions | |
| Dimensions (H × W × D) | 4.4 × 44 ×23.8 cm |
| Weight | 3.4 kg |
| Power | |
| AC input voltage | AC：100V～240V AC，50/60Hz |
| Power consumption | ≤ 32W |
| Operating temperature | 0ºC to 40ºC Short-term operating temperature : 0ºC to 45ºC |
| Operating humidity | 5% RH to 95% RH, non-condensing |
