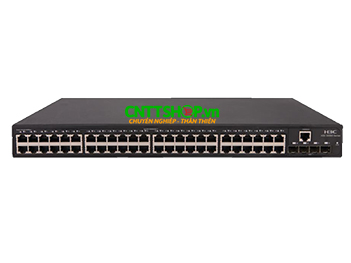

| Datasheet H3C LS-5560S-52P-SI-GL |
| Item |
S5560S-52P-SI |
| Port switching capacity |
104 Gbps |
| Packet forwarding rate |
78 Mpps |
| CPU |
1 Core, 800MHz |
| Dimensions (H × W × D) |
43.6 × 440 × 230 mm |
| Weight |
< 3.5 kg |
| Management Ethernet ports |
1 console port |
| SDRAM/Flash |
512MB/256MB |
| Maximum stacking num |
9 |
| Stacking bandwidth |
16Gbps |
| Service ports |
48× 10/100/1000Base-T autosensing Ethernet ports
4× SFP ports
|
| Power consumption |
MIN: AC 18W
MAX: AC 41W
|
| Operating temperature |
0ºC to 45ºC (32°F to 113°F) |
| Operating humidity |
10% RH to 90% RH, non-condensing |
| Link aggregation |
1G/10G port aggregation
Static aggregation
Dynamic aggregation
Multichassis link aggregation
|
| Jumbo frame |
10,000 byte |
| MAC address table |
Blackhole MAC address
MAC learning limit
|
| Flow control |
802.3x flow control and half-duplex backpressure |
| VLAN |
Port-based VLAN
QinQ
Voice VLAN
MAC VLAN
|
| ARP |
ARP Detection
ARP speed limit
|
| ND |
Supported |
| VLAN virtual port |
Supported |
| DHCP |
DHCP Client
DHCP Snooping
DHCP Relay
DHCP Server
DHCP Option82
|
| DNS |
Static and Dynamic DNS
IPV4 and IPV6
|
| Routing protocols |
IPV4/IPV6 static routing
RIP/RIPng, OSPFV1/V2/V3
|
| Strom suppression |
Storm suppression based on port bandwidth percentage
Storm suppression based on PPS
Storm suppression based on BPS
Broadcast traffic/Multicast traffic/Unknown unicast traffic suppression
|
| Layer 2 ring network protocol |
STP/RSTP/MSTP
STP Root Protection
Smart Link
RRPP
|
| Mirroring |
Flow mirroring
Port mirroring
|
| QoS/ACL |
Packet filter
Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR
Bidirectional ACL
Port-based speed limiting
Flow redirection
Time-range
802.1p priority mapping and DSCP priority mapping
|
| Layer 2 ring network protocol |
STP/RSTP/MSTP/PVST+/RPVST+
STP Root Protection
Smart Link
RRPP
|
| Multicast |
IGMP Snooping v1/v2/v3 and MLD Snooping v1/v2
IGMP v1/v2/v3 and PIM-SM/PIM-SSM/PIM-DM
|
| Security |
Hierarchical user management and password protection
MAC-based authentication
802.1X authentication
RADIUS authentication, HWTACACS authentication
SSH2.0
Port isolation
Port security
IP source guard
Dynamic ARP detection
BPDU guard and root guard
HTTPs
l EAD
|
| Loading and upgrading |
Loading and upgrading through FTP/TFTP |
| Management and maintenance |
Configuration from CLI
Login through Telnet, and the console port
Simple Network Management Protocol (SNMP)
Remote Monitoring (RMON)
IMC network management system
WEB management
System log
Alarming based on severity
IRF2
NTP
LLDP, LLDP-MED
Sflow
Debugging information output
Telnet-based remote maintenance
NQA
DLDP
Virtual Cable Test
Loopback detection
|
