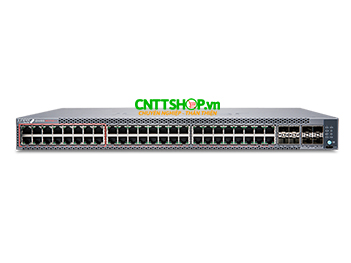

Juniper EX4100-48MP 16 port Multigigabit, 32x RJ45 1GbE, 4x 10GbE, 4x 25GbE port

Juniper EX4100-48MP Multigigabit là một thiết bị chuyển mạch thế hệ mới thuộc dòng EX4100. Thiết bị có thiết kế đặc biệt với 16 cổng kết nối đa tốc độ 100MB/1/2.5GbE, có thể cấp nguồn PoE++ với mức công suất 90W trên 1 cổng và có thể hoạt động liên tục khi Switch đang khởi động lại. Điều này giúp thiết bị thích ứng với các giải pháp IoT, WiFi 6E đang ngày càng phổ biến cho các hệ thống mạng doanh nghiệp.

✓ Mã sản phẩm: EX4100-48MP
✓ Tình trạng: Còn Hàng
Check Giá List
EX4100-48MP Datasheet

So sánh với các sản phẩm Switch khác:

Cam Kết Bán Hàng

✓ Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

✓ Giá Cạnh Tranh Rẻ Nhất Thị Trường

✓ Ưu Đãi Lớn Cho Đại Lý Và Dự Án

✓ Bảo Hành, Đổi Trả Nhanh Chóng

✓ Giao Hàng Trên Toàn Quốc

✓ Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

✓ Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

CNTTShop.vn - 19 năm Uy tín cung cấp Thiết bị mạng & Dịch vụ Mạng trên toàn quốc.

NTT03, Thống Nhất Complex, Thanh Xuân, Hà Nội. Số 31B, Đường 1, Phường An Phú, Quận 2 (Thủ Đức), TP HCM.

Switch Juniper EX4100-48MP

Part Number
List Price
: $
Giá bán
Bảo hành
Made In
Stock

Thông số kỹ thuật Switch Juniper EX4100-48MP specifications

Datasheet Switch Juniper EX4100-48MP
Physical Specifications
Interface 16 x 100 MB/1GbE/2.5GbE
32 x 10 MB/100MB/1GbE
4x 1/10GbE Uplink
4x 10/25GbE Uplink/Stack
1x Console RJ45, 1x Console USB type C
1x Managerment
Hardware
Memory DRAM: 4 GB with Error Correcting Code (ECC)
Storage (Flash): 8 GB
CPU 1.7 GHz ARM CPU
Performance
Switching Capacities 212 Gbps (unidirectional)/424 Gbps
(bidirectional)
Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte
Packets)
315 Mpps
Maximum MAC addresses per system 64,000
Jumbo frames 9216 bytes
Range of possible VLAN IDs 1 to 4094
Virtual Spanning Tree (VST) instances 253
Physical port redundancy Redundant trunk group (RTG)
Layer 2 Switching - Port-based VLAN
- Voice VLAN
- Physical port redundancy: Redundant trunk group (RTG)
- Compatible with Per-VLAN Spanning Tree Plus (PVST+)
- Routed VLAN interface (RVI)
- Uplink failure detection (UFD)
- ITU-T G.8032: Ethernet Ring Protection Switching
- IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
- LLDP-MED with VoIP integration
- Default VLAN and multiple VLAN range support
- MAC learning deactivate
- Persistent MAC learning (sticky MAC)
- MAC notification
- Private VLANs (PVLANs)
- Explicit congestion notification (ECN)
- Layer 2 protocol tunneling (L2PT)
- IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP)
- IEEE 802.1p: Class of service (CoS) prioritization
- IEEE 802.1Q: VLAN tagging
- IEEE 802.1X: Port Access Control
- IEEE 802.1ak: Multiple Registration Protocol
- IEEE 802.3: 10BASE-T
- IEEE 802.3u: 100BASE-T
- IEEE 802.3ab: 1000BASE-T
- IEEE 802.3z: 1000BASE-X
- IEEE 802.3ae: 10-Gigabit Ethernet
- IEEE 802.3by: 25-Gigabit Ethernet
- IEEE 802.3af: Power over Ethernet
- IEEE 802.3at: Power over Ethernet Plus
- IEEE 802.3bt: 90 W Power over Ethernet
- IEEE 802.3x: Pause Frames/Flow Control
IEEE 802.3ah: Ethernet in the First Mile
Spanning Tree

- IEEE 802.1D: Spanning Tree Protocol
- IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
- Number of MST instances supported: 64
- Number of VLAN Spanning Tree Protocol (VSTP) instances
supported: 253
- IEEE 802.1w: Rapid reconfiguration of Spanning Tree Protocol

Link Aggregation - IEEE 802.3ad: Link Aggregation Control Protocol
- 802.3ad (LACP) support
- Number of LAGs supported: 128
+  Maximum number of ports per LAG: 8
- LAG load-sharing algorithm bridged or routed (unicast or
multicast) traffic:
Layer 3 Features
IPv4
Maximum number of ARP entries 32,000
Maximum number of IPv4 unicast routes in hardware 32,650
prefixes; 32,150 host routes
Maximum number of IPv4 multicast routes in hardware 16,100 multicast routes
Routing protocols  RIPv1/v2, OSPF, BGP, IS-IS
Static routing
Routing policy
Bidirectional Forwarding Detection (BFD)
L3 redundancy: Virtual Router Redundancy Protocol (VRRP)
VRF-Lite
IPv6
Maximum number of neighbor discovery (ND) entries 16,000
Maximum number of IPv6 unicast routes in hardware 16,200
prefixes; 16,050 host routes
Maximum number of IPv6 multicast routes in hardware 8000
multicast routes
Routing protocols RIPng, OSPFv3, IPv6, IS-IS
Static routing
High Availability - Redundant, hot-swappable power supplies
- Redundant, field-replaceable, hot-swappable fans
- GRES for Layer 2 hitless forwarding and Layer 3 protocols on
RE failover
- Graceful protocol restart (OSPF, BGP)
- Layer 2 hitless forwarding on RE failover
- Nonstop bridging: LACP, xSTP
- Nonstop routing: PIM, OSPF v2 and v3, RIP v2, RIPng, BGP,
BGPv6, IS-IS, IGMP v1, v2, v3
Multicast - IGMP: v1, v2, v3
- IGMP snooping
- Multicast Listener Discovery (MLD) snooping
- Protocol Independent Multicast-Sparse Mode (PIM-SM), PIM
Source-Specific Mode (PIM-SSM), PIM Dense Mode (PIM-DM)
Management and Analytics Platforms - Juniper Mist Wired Assurance for campus
- Junos Space® Network Director for campus
- Junos Space Management Applications
Device Management and Operations - Junos OS CLI
- Out-of-band management: Serial; 10/100/1000BASE-T
Ethernet
- Rescue configuration
- Configuration rollback
- Image rollback
- RMON (RFC2819) groups 1, 2, 3, 9
- Remote performance monitoring
 - SNMP: v1, v2c, v3
- Network Time Protocol (NTP)
- DHCP server
- DHCP client and DHCP proxy
- DHCP relay and helper
- DHCP local server support
- RADIUS
- TACACS+
- SSHv2
- Secure copy
- HTTP/HTTPs
- Domain Name System (DNS) resolver
- System logging
- Temperature sensor
- Configuration backup via FTP/secure copy
Power Options
Power supplies Autosensing; 100-120 V/200-240 V;
JPSU-920-AC-AFO
Maximum current inrush 30 amps
Minimum number of PSUs required for fully loaded chassis 1 per switch
Dimensions (W x H x D)
Base Unit 17.36 x 1.72 x 13.78 in (44.1 x 4.37 x 35 cm)
With power supply installed 7.36 x 1.72 x 15.05 in (44.1 x
4.37 x 38.24 cm)
Height 1 U
Weight
EX4100-48MP switch (with no power supply or fan module) 10.41 lb (4.72 kg)
920 W AC power supply 1.87 lb (0.85 kg)
Fan module 0.16 lb (0.07 kg)
Environmental Ranges
Operating temperature 32° to 113° F (0° to 45° C)
Storage temperature -40° to 158° F (-40° to 70° C)
Operating altitude Up to 5000 ft at 40° C (1828.8 m)
Nonoperating altitude Up to 16,000 ft (4877 m)
Relative humidity operating 5% to 90% (noncondensing)
Relative humidity non-operating 0% to 90% (noncondensing)
