Specifications
|
| Performance |
|
Switching capacity
|
56 Gbps
|
|
Forwarding rate
|
41.66 Mpps
|
|
Virtual Networks
|
1
|
|
Stacking bandwidth
|
80 Gbps
|
|
Total number of MAC addresses
|
16,000
|
|
Total number of IPv4 routes (ARP plus learned routes)
|
11,000 (8,000 direct routes and 3,000 indirect routes)
|
|
IPv4 routing entries
|
3,000
|
|
IPv6 routing entries
|
1,500
|
|
Multicast routing scale
|
1,000
|
|
QoS scale entries
|
1,000
|
|
ACL scale entries
|
1,500
|
|
Packet buffer per SKU
|
6 MB buffers
|
|
Flexible NetFlow (FNF) entries
|
16,000 flows
|
|
DRAM
|
2 GB
|
|
Flash
|
4 GB
|
|
VLAN IDs
|
1024
|
|
Total Switched Virtual Interfaces (SVIs)
|
512
|
|
Jumbo frames
|
9198 bytes
|
|
Wireless bandwidth per switch
|
N/A
|
|

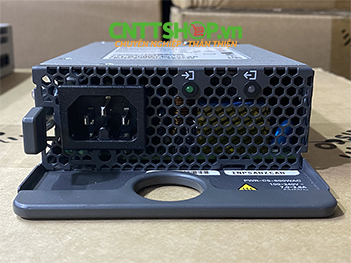

Default primary power supply
|
PWR-C5-600WAC
|
|
Available PoE power with single primary power supply only
|
370W
|
|
Optional secondary power supply
|
PWR-C5-600WAC
|
|
Available PoE power with additional secondary power supply
|
740W
|
|
Features
|
| Switch fundamentals |
Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes), PBR, PIM Stub Multicast (1000 routes), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder |
|
Automation
|
NETCONF, RESTCONF, YANG, PnP Agent, PnP
|
|
Telemetry and visibility
|
Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
|
|
Security
|
MACsec-128
|
|
Physical Specifications
|
| Chassis Dimensions |
1.73 x 17.5 x 11.3 Inches
4.4 x 44.5 x 28.8 Centimeters |
| weight |
10.38 Pounds
4.71 Kilograms |
| Mean time between failures (hours) |
392,210 |
| Connectors |
| Connectors and cabling |
- 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
- 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling
- 100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, dense wavelength-division multiplexing (DWDM) and Coarse Wavelength-Division Multiplexing (CWDM) SFP transceivers: LC fiber connectors (single-mode or multimode fiber)
- Cisco StackWise-80 stacking ports: copper-based Cisco StackWise cabling
- Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling
- Management console port: RJ-45-to-DB9 cable for PC connections,USB-C adaptor, USB adaptor
|
| Power connectors |
Internal power supply connector: The internal power supply is an auto-ranging unit. It supports input voltages between 100 and 240 VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
|
| Standards, Safety and compliance information |
| Standards |
EEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.1x-Rev
IEEE 802.3ad
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS prioritization
IEEE 802.1Q VLAN
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification
IEEE 802.3z 1000BASE-X specification
RMON I and II standards
SNMPv1, v2c, and v3
|
| Safety certifications |
- IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2 No. 60950-1
- EN 60950-1
- AS/NZS 60950.1
- Class I Equipment
|
| Electromagnetic emissions certifications |
- 47 CFR Part 15
- CISPR 22 Class A
- CISPR 32 Class A
- CNS 13438
- EN 300 386
- EN 55022 Class A
- EN 55032 Class A
- EN61000-3-2
- EN61000-3-3
- ICES-003 Class A
- KN 32
- TCVN 7189 Class A
- V-3 Class A
- CISPR 24
- EN 300 386
- EN 55024
- KN 35
- TCVN 7317
|
| Environmental |
Reduction of Hazardous Substances (ROHS) 5
|
Switch
.png){kind=icon}
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: C9200L-24P-4G-E ?
Chào anh,
Switch Cisco C9200L-24P-4G-E hoạt động ở layer 3 trong mô hình OSI. Tuy nhiên thiết bị chỉ hỗ trợ 1 số tính năng layer 3 cơ bản như: Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes), PBR, PIM Stub Multicast (1000 routes), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder .
Thông tin đến anh!
Đi kèm Switch Cisco C9200L-24P-4G-E chỉ bao gồm 1 nguồn. Anh cần mua thêm 1 nguồn PWR-C5-600WAC để sử dụng.
Khi mua thiết bị chuyển mạch Switch Cisco C9200L-24P-4G-E chỉ kèm theo 1 nguồn PWR-C5-600WAC còn nguồn PWR-C5-600WAC/2= phải mua riêng chị nhé.
Anh có thể sử dụng Switch Cisco C9200L-24P-4G-E làm switch core hoặc access đều được anh nhé.
Thiết bị chuyển mạch Switch Cisco C9200L-24P-4G-E bảo hành 12 tháng 1 đổi 1 nếu lỗi do nhà sản xuất nhé bạn.
