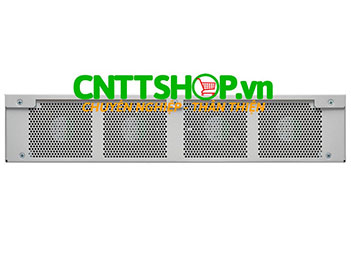

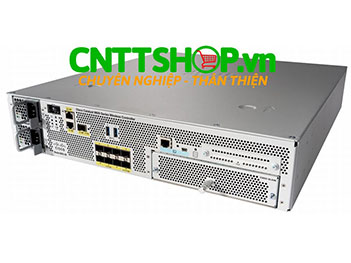

Cisco C9800-80-K9 Catalyst 9800-80 Wireless Controller

Part Number : C9800-80-K9
List Price : $80,000
Bảo hành : 12 tháng
Made In : Asia

Được xây dựng từ nền tảng Intent và Cisco DNA, Bộ điều khiển không dây Cisco C9800-80-K9 sử dụng phần mềm Cisco IOS® XE và tích hợp RF của các điểm truy cập Cisco Aironet® tạo ra trải nghiệm không dây tốt nhất.

View Datasheet

Bộ điều khiển không dây Cisco C9800-80-K9 được xây dựng trên kiến trúc mở và có thể lập trình với bảo mật tích hợp, truyền phát từ xa và phân tích phong phú.

Thông số kỹ thuật Cisco C9800-80-K9

Metric	Value
Maximum number of access points	Up to 6000
Maximum number of clients	64,000
Maximum throughput	Up to 80 Gbps
Maximum WLANs	4096
Maximum VLANs	4096
Max site tags	6000
Max Flex APs per site	100
Max policy tags	6000
Max RF tags	6000
Max RF profiles	12000
Max policy profiles	1000
Max flex profiles	6000
Fixed uplinks	8x 10 GE or 6x 10 GE + 2x 1 GE SFP+/SFP
Modular uplinks (optional)	The supported uplink modules are: ● C9800-18X1GE(=) ● C9800-10X10GE(=) ● C9800-1X40GE(=) ● C9800-2X40GE(=) ● C9800-1X100GE(=) The uplink modules are hot-swappable. Supports 10 GE, 40 GE, and 100 GE QSFP transceivers
Redundant power supply	AC or DC power supply
Maximum power consumption with modules	600W
Deployment modes	Centralized, Cisco FlexConnect^®, and Fabric Wireless (SD-Access)
Form factor	2RU
License	Smart License enabled
Operating system	Cisco IOS XE
Management	Cisco DNA Center^™ 1.2.8, Cisco Prime^® Infrastructure 3.5, integrated WebUI, and third party (open standards APIs)
Interoperability	AireOS-based controllers with 8.8 MR2, 8.5 MR4 and 8.5 MR3 special
Policy engine	Cisco Identity Services Engine (ISE) 2.2, 2.3, and 2.4
Cisco Connected Mobile Experiences (CMX)	CMX 10.5.1
Access points	Aironet 802.11ac Wave 1 and Wave 2 access points
Physical dimensions
Width	17.3 inches (43.94 cm)
Depth	20.5 inches (52.07 cm)
Height	3.47 inches (8.81 cm)
Weight	31.5 lb (14.29 kg)
Specifications
Wireless	IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave 1 and Wave 2
Wired, switching, and routing	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, 1000BASE-T, 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation
Data standards	● RFC 768 User Datagram Protocol (UDP) ● RFC 791 IP ● RFC 2460 IPv6 ● RFC 792 Internet Control Message Protocol (ICMP) ● RFC 793 TCP ● RFC 826 Address Resolution Protocol (ARP) ● RFC 1122 Requirements for Internet Hosts ● RFC 1519 Classless Interdomain Routing (CIDR) ● RFC 1542 Bootstrap Protocol (BOOTP) ● RFC 2131 Dynamic Host Configuration Protocol (DHCP) ● RFC 5415 Control and Provisioning of Wireless Access Points (CAPWAP) Protocol ● RFC 5416 CAPWAP Binding for 802.11
Security standards	● Wi-Fi Protected Access (WPA) ● IEEE 802.11i (WPA2, RSN) ● RFC 1321 MD5 Message-Digest Algorithm ● RFC 1851 Encapsulating Security Payload (ESP) Triple DES (3DES) Transform ● RFC 2104 HMAC: Keyed-Hashing for Message Authentication ● RFC 2246 TLS Protocol Version 1.0 ● RFC 2401 Security Architecture for the Internet Protocol ● RFC 2403 HMAC-MD5-96 within ESP and AH ● RFC 2404 HMAC-SHA-1-96 within ESP and AH ● RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV ● RFC 2407 Interpretation for Internet Security Association Key Management Protocol (ISAKMP) ● RFC 2408 ISAKMP ● RFC 2409 Internet Key Exchange (IKE) ● RFC 2451 ESP CBC-Mode Cipher Algorithms ● RFC 3280 Internet X.509 Public Key Infrastructure (PKI) Certificate and Certificate Revocation List (CRL) Profile ● RFC 4347 Datagram Transport Layer Security (DTLS) ● RFC 5246 TLS Protocol Version 1.2
Encryption standards	● Static Wired Equivalent Privacy (WEP) RC4 40, 104 and 128 bits ● Advanced Encryption Standard (AES): Cipher Block Chaining (CBC), Counter with CBC-MAC (CCM), Counter with CBC Message Authentication Code Protocol (CCMP) ● Data Encryption Standard (DES): DES-CBC, 3DES ● Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit ● DTLS: AES-CBC ● IPsec: DES-CBC, 3DES, AES-CBC ● 802.1AE MACsec encryption
Authentication, Authorization, and Accounting (AAA)	● IEEE 802.1X ● RFC 2548 Microsoft Vendor-Specific RADIUS Attributes ● RFC 2716 Point-to-Point Protocol (PPP) Extensible Authentication Protocol (EAP)-TLS ● RFC 2865 RADIUS Authentication ● RFC 2866 RADIUS Accounting ● RFC 2867 RADIUS Tunnel Accounting ● RFC 2869 RADIUS Extensions ● RFC 3576 Dynamic Authorization Extensions to RADIUS ● RFC 5176 Dynamic Authorization Extensions to RADIUS ● RFC 3579 RADIUS Support for EAP ● RFC 3580 IEEE 802.1X RADIUS Guidelines ● RFC 3748 Extensible Authentication Protocol (EAP) ● Web-based authentication ● TACACS support for management users
Management standards	● Simple Network Management Protocol (SNMP) v1, v2c, v3 ● RFC 854 Telnet ● RFC 1155 Management Information for TCP/IP-based Internets ● RFC 1156 MIB ● RFC 1157 SNMP ● RFC 1213 SNMP MIB II ● RFC 1350 Trivial File Transfer Protocol (TFTP) ● RFC 1643 Ethernet MIB ● RFC 2030 Simple Network Time Protocol (SNTP) ● RFC 2616 HTTP ● RFC 2665 Ethernet-Like Interface Types MIB ● RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions ● RFC 2819 Remote Monitoring (RMON) MIB ● RFC 2863 Interfaces Group MIB ● RFC 3164 Syslog ● RFC 3414 User-Based Security Model (USM) for SNMPv3 ● RFC 3418 MIB for SNMP ● RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs ● RFC 4741 Base NETCONF protocol ● RFC 4742 NETCONF over SSH ● RFC 6241 NETCONF ● RFC 6242 NETCONF over SSH ● RFC 5277 NETCONF event notifications ● RFC 5717 Partial Lock Remote Procedure Call ● RFC 6243 With-Defaults capability for NETCONF ● RFC 6020 YANG ● Cisco private MIBs
Management interfaces	● Web-based: HTTP/HTTPS ● Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port ● SNMP ● NETCONF
Hard Disk Drives (HDD)	● SATA solid-state drive (SSD) ● 240 GB of memory
Environmental conditions supported	Operating temperature: ● Normal: 5° to 40° C (41° to 104°F) ● Short term: 5° to 50° C (41° to 122°F) Nonoperating temperature: ● -40° to 65° C (-104° to 149°F) Operating humidity: ● Normal: 5% to 85% noncondensing ● Short term: 5% to 90% noncondensing Nonoperating temperature humidity: ● 5% to 93% at 82°F (28°C) Operating altitude: ● Appliance operating: 0 to 3000 m (0 to 10,000 ft) ● Appliance nonoperating: 0 to 12,192 m (0 to 40,000 ft) Electrical input: ● AC input frequency range: 47 to 63 Hz ● AC input range: 90 to 264 VAC with AC PEM ● DC input range: -40 to -72 VDC with DC PEM Maximum power with modules: 600W Heat dissipation: 2047 BTU/hr Sound power level measure: ● A-weighted sound power level is 70.5 LpAm(dBA) @ 27C nominal operation

C9800-80-K9 Options

Part Number	Product Name
LIC-C9800-DTLS-K9	Cisco Catalyst 9800 Series Wireless Controller DTLS License
C9800-AC-1100W=	Cisco Catalyst Wireless Controller 1100 AC Power Supply
C9800-DC-950W=	Cisco Catalyst Wireless Controller 950W DC Power Supply
C9800-18X1GE(=)	Cisco Catalyst 9800-80 GE Module
C9800-10X10GE(=)	Cisco Catalyst 9800-80 10 GE Module
C9800-1X40GE(=)	Cisco Catalyst 9800-80 1 Port 40 GE Module
C9800-2X40GE(=)	Cisco Catalyst 9800-80 2 Ports 40 GE Module
C9800-1X100GE(=)	Cisco Catalyst 9800-80 1 Port 100 GE Module

Module quang sử dụng cho Cisco C9800-80-K9 Wireless Controller

Type	Modules supported	Description
Small Form-Factor Pluggable (SFP)	GLC-BX-D	Cisco GLC-BX-D SMF 1490TX 1310RX Single LC 10KM
	GLC-BX-U	Cisco GLC-BX-U SMF 1310TX 1490RX Single LC 10KM
	GLC-LH-SMD	Cisco SFP GLC-LH-SMD 1000BASE-LX/LH SMF 1310nm DOM 10KM
	GLC-SX-MMD	Cisco GLC-SX-MMD SFP transceiver MMF 850-nm, DOM, 500m
	GLC-ZX-SMD	Cisco GLC-ZX-SMD SFP 1000BASE-ZX 1550nm DOM SMF 70km
	GLC-TE	Cisco GLC-TE 1GBASE-T RJ-45 100m Extended Temperature
Enhanced SFP (SFP+)	SFP-10G-SR	Cisco SFP-10G-SR SFP+ for MMF 850-nm LC Duplex 300m
	SFP-10G-SR-X	Cisco SFP-10G-SR-X 10GBASE-SR SFP+ 850nm 300m DOM Transceiver
	SFP-10G-LR	Cisco SFP-10G-LR SFP+ SMF 1310 nm LC duplex 10km
	SFP-10G-LRM	Cisco SFP-10G-LRM SFP+ 1310nm LC 300m Transceiver
	SFP-10G-LR-X	Cisco SFP-10G-LR-X SFP+ SMF 1310 nm LC duplex 10km
	SFP-10G-ER	Cisco SFP-10G-ER for SMF 1550-nm dual LC 40km
	SFP-10G-ZR	Cisco SFP-10G-ZR SFP+ for SMF 1550-nm LC duplex 80km
	SFP-H10GB-ACU7M	Cable DAC Cisco SFP-H10GB-ACU7M 10GBASE-CU SFP+ 7m active
	SFP-H10GB-ACU10M	Cable DAC Cisco SFP-H10GB-ACU10M 10GBASE-CU SFP+ 10m active
	DWDM-SFP10G-30.33 - DWDM-SFP10G-61.41

Quad SFP (QSFP)	QSFP-40G-SR4	Cisco QSFP-40G-SR4 40GBASE-SR4 850nm 150m MMF
	QSFP-40G-LR4	Cisco QSFP-40G-LR4 40GBASE-LR4 1310nm 10km LC SMF
	QSFP-40GE-LR4	QSFP-40GE-LR4 - QSFP 40GBASE-LR4 Transceiver Module, LC, 10KM
	QSFP-40G-ER4	Cisco QSFP-40G-ER4 40GBASE-ER4 1310nm 40km LC Duplex SMF
	QSFP-40G-SR4-S	Cisco QSFP-40G-SR4-S 40GBASE-SR4 4 lanes 850 nm 150m MMF
	QSFP-40G-LR4-S	Cisco QSFP-40G-LR4-S 1310nm 10km LC Duplex SMF
	QSFP-40G-SR-BD	Cisco QSFP-40G-SR-BD 832 - 918nm 150m MMF Transceiver
	QSFP-40G-BD-RX	Cisco QSFP-40G-BD-RX 832 - 918nm 150m MMF Transceiver
	QSFP-100G-SR4-S	Cisco QSFP-100G-SR4-S MPO-12 850-nm 100m MMF transceiver
	QSFP-100G-LR4-S	Cisco QSFP-100G-LR4-S 100GBASE-LR4 LC 10km SMF
