N3K-C3524P-XL Cisco Nexus 3524-XL Switch, 24 SFP+

Thiết bị chuyển mạch Cisco N3K-C3524P-XL Nexus 3524-XL series switch, 24 port SFP+

✓ Mã sản phẩm: N3K-C3524P-XL

✓ Tình trạng: Còn Hàng

Thiết bị chuyển mạch Cisco Nexus N3K-C3524P-XL.

Name: N3K-C3524P-XL
Brand: CISCO
SKU: N3K-C3524P-XL
Availability: InStock
Rating: 5 (19 reviews)

Cisco Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

Thiết bị chuyển mạch Cisco Nexus N3K-C3524P-XL cung cấp chuyển mạch tốc độ cao ở Lớp 2 và 3 với độ trễ cực thấp. Nexus C3524P-XL có 48 cổng 1/10G SFP+ nhưng chỉ được kích hoạt sẵn 24 cổng, người sử dụng có thể mua thêm license để kích hoạt nốt 24 cổng còn lại.

View Datasheet N3K-C3524P-XL

Nexus N3K-C3524P-XL sử dụng hệ điều hành hàng đầu NX-OS Software do Cisco phát triển, cung cấp cho khách hàng các tính năng toàn diện được triển khai trên toàn cầu.

Thiết bị chuyển mạch Cisco Nexus N3K-C3524P-XL.

Thông số kỹ thuật.

Specifications

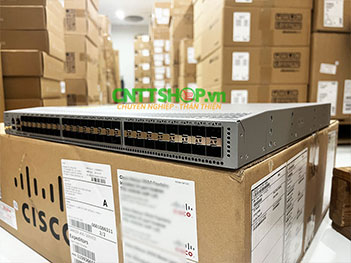

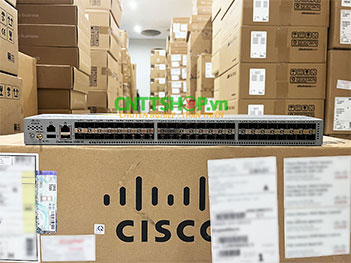

Physical	- 24 fixed SFP+ ports (1 or 10 Gbps) expandable to 48 ports - Dual redundant hot-swappable power supplies - Four individual redundant hot-swappable fans - One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type* - One 10/100/1000-Mbps management port - One RS-232 serial console port - Two USB ports - Locator LED - Locator LED button
Performance	- 480-Gbps switching capacity - Forwarding rate of 360 mpps - Line-rate traffic throughput (both Layer 2 and 3) on all ports - Configurable MTUs of up to 9216 bytes (jumbo frames)
Typical operating power	102W
Maximum power	193W
Typical heat dissipation	348 BTUs per hr
Maximum heat dissipation	658 BTUs per hr
Hardware tables and scalability
Number of MAC addresses	Normal mode: 64,000 Warp mode: 8,00
Number of IPv4 unicast routes	Normal mode: 24,000 Warp mode: 4,000
Number of IPv4 hosts	Normal mode: 64,000 Warp mode: 8,000
Number of IPv4 multicast routes	8,000
Number of VLANS	4096
Number of ACL entries	4096
Number of spanning-tree instances	Rapid Spanning Tree Protocol (RSTP): 512 Multiple Spanning Tree (MST) Protocol: 64
Number of EtherChannels	24
Number of ports per EtherChannel	24
Buffer size	6 MB shared among 16 ports; 18 MB total
System memory	16 GB
Boot flash memory	16 GB
Power
Number of power supplies	2
Power supply types	AC and DC
Input voltage	100 to 240 VAC
Frequency	50 to 60 Hz
Power supply efficiency	89 to 91% at 220V
Cooling

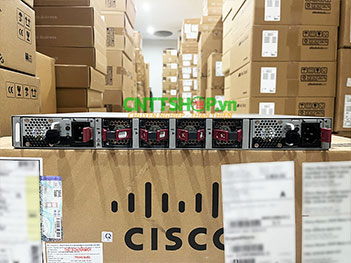

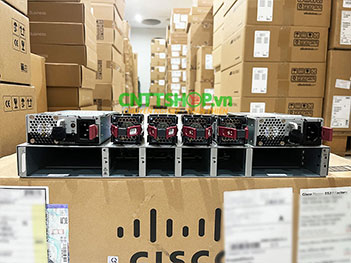

Forward and reversed airflow schemes	- Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports) - Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Four individual, hot-swappable fans (3+1 redundant)
Environment
Dimensions (height x width x depth)	1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)
Weight	17.4 lb (7.9 kg)
Operating temperature	32 to 104° F (0 to 40°C)
Storage temperature	-40 to 158° F (-40 to 70°C)
Relative humidity (operating)	- 10 to 85% noncondensing - Up to 5 days at maximum (85%) humidity - Recommend ASHRAE data center environment
Relative humidity (nonoperating)	5 to 95% noncondensing
Altitude	0 to 10,000 ft (0 to 3000m)
