| I/O ports and slots |
48 fixed 1000/10000 SFP+ ports
4 QSFP+ 40-GbE ports |
| Additional ports and slots |
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 USB 2.0 |
| Power supplies |
2 power supply slots
1 minimum power supply required (ordered separately) |
| Fan tray |
2 fan tray slots
The customer must order fan trays, as fan trays are not included with the switch |
| Physical characteristics |
| Dimensions |
17.32(w) x 25.98(d) x 1.72(h) in (43.99 x 65.99 x 4.37 cm) |
| Weight |
28.66 lb (13 kg) shipping weight |
| Memory and processor |
512 MB flash; Packet buffer size: 9 MB, 2 GB SDRAM |
| Performance |
| 10 Gbps Latency |
< 1.5 µs (64-byte packets) |
| Throughput |
up to 952 Mpps |
| Routing/Switching capacity |
1280 Gbps |
| Routing table size |
16000 entries (IPv4), 8000 entries (IPv6) |
| MAC address table size |
128000 entries |
| Environment |
| Operating temperature |
32°F to 113°F (0°C to 45°C) |
| Operating relative humidity |
10% to 90%, noncondensing |
| Acoustic |
Low-speed fan: 65.7 dB, High-speed fan: 70.6 dB |
| Electrical characteristics |
| Maximum heat dissipation |
887 BTU/hr (935.79 kJ/hr) |
| Voltage |
100 - 240 VAC, rated
-40 to -60 VDC, rated
(depending on power supply chosen) |
| Frequency |
50/60 Hz |
| Maximum power rating |
260 W |
| Idle power |
200 W |
| Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Emissions |
VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR 22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A. |
| Immunity |
| Generic |
ETSI EN 300 386 V1.3.3 |
| EN |
EN 55024:1998+ A1:2001 + A2:2003 |
| ESD |
EN 61000-4-2; IEC 61000-4-2 |
| Radiated |
EN 61000-4-3; IEC 61000-4-3 |
| EFT/Burst |
EN 61000-4-4; IEC 61000-4-4 |
| Surge |
EN 61000-4-5; IEC 61000-4-5 |
| Conducted |
EN 61000-4-6; IEC 61000-4-6 |
| Power frequency magnetic field |
IEC 61000-4-8; IEC 61000-4-8 |
| Voltage dips and interruptions |
EN 61000-4-11; IEC 61000-4-11 |
| Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
| Flicker |
EN 61000-3-3, IEC 61000-3-3 |
| Management |
IMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP |
| Notes |

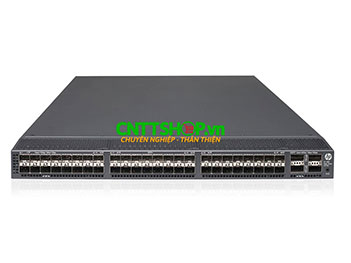

The customer must order a power supply, as the device does not come with one. At least one JC680A or JC681A is required. The HPE 5900AF-48XG-4QSFP+ Switch is NEBS GR-1089-CORE compliant. |
