| I/O ports and slots |
48 fixed 1000/10000 SFP+ ports; PHY-less
4 QSFP+; PHY-less |
| Additional ports and slots |
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 USB 2.0 |
| Power supplies |
2 power supply slots
1 minimum power supply required (ordered separately) |
| Fan tray |
2 fan tray slots
The customer must order fan trays, as fan trays are not included with the switch |
| Physical characteristics |
| Dimensions |
17.32(w) x 18.11(d) x 1.72(h) in (44 x 46 x 4.37 cm) |
| Weight |
24.25 lb (11 kg) shipping weight |
| Memory and processor |
512 MB flash; Packet buffer size: 9 MB, 2 GB SDRAM |
| Performance |
| 10 Gbps Latency |
< 1.5 µs (64-byte packets) |
| Throughput |
up to 952 Mpps |
| Routing/Switching capacity |
1280 Gbps |
| Routing table size |
16000 entries (IPv4), 8000 entries (IPv6) |
| MAC address table size |
128000 entries |
| Environment |
| Operating temperature |
32°F to 113°F (0°C to 45°C) |
| Operating relative humidity |
10% to 90%, noncondensing |
| Acoustic |
Low-speed fan: 65.7 dB, High-speed fan: 70.6 dB |
| Electrical characteristics |
| Maximum heat dissipation |
887 BTU/hr (935.79 kJ/hr) |
| Voltage |
100 - 240 VAC, rated
-40 to -60 VDC, rated
(depending on power supply chosen) |
| Frequency |
50/60 Hz |
| Maximum power rating |
196 W |
| Idle power |
106 W |
| Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Emissions |
VCCI Class A; EN 55022 Class A; ICES-003 Class A; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; FCC (CFR 47, Part 15) Subpart B Class A |
| Immunity |
| Generic |
ETSI EN 300 386 V1.3.3 |
| EN |
EN 55024:1998+ A1:2001 + A2:2003 |
| ESD |
EN 61000-4-2; IEC 61000-4-2 |
| Radiated |
EN 61000-4-3; IEC 61000-4-3 |
| EFT/Burst |
EN 61000-4-4; IEC 61000-4-4 |
| Surge |
EN 61000-4-5; IEC 61000-4-5 |
| Conducted |
EN 61000-4-6; IEC 61000-4-6 |
| Power frequency magnetic field |
IEC 61000-4-8; IEC 61000-4-8 |
| Voltage dips and interruptions |
EN 61000-4-11; IEC 61000-4-11 |
| Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
| Flicker |
EN 61000-3-3, IEC 61000-3-3 |
| Management |
IMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP |
| Notes |

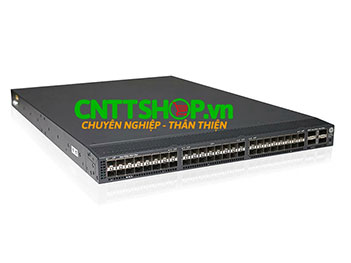

The customer must order a power supply, as the device does not come with one. At least one JC680A or JC681A is required. The HPE 5900AF-48XG-4QSFP+ Switch is NEBS GR-1089-CORE compliant. |
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: JH337A ?
Cảm ơn bạn đã quan tâm sản phẩm của CNTTShop. Hiện tại HPE JH337A FlexFabric 5900 series switch bên mình đang sẵn hàng trong kho bạn nhé. Bạn có thể qua trực tiếp CNTTShop tại địa chỉ: NTT03, Line 1, Thống Nhất Complex, 82 Nguyễn Tuân – Thanh Xuân – Hà Nội để xem hàng nhé.
Datasheet của Switch HPE JH337A đã được gửi vào mail của bạn. Nếu cần tư vấn chi tiết hơn, bạn vui lòng liên hệ với shop để được hỗ trợ thêm nhé.
Hiệu suất làm việc của switch HPE FlexFabric JH337A có tốt không shop?
Switch HPE FlexFabric JH391A cho chuyển mạch lên đến 1280 Gbps và thông lượng lên đến 952 Mpps Mpps ạ
Switch HPE FlexFabric JH337A có 512 MB flash; Packet buffer size: 9 MB, 2 GB SDRAM ạ
Switch HPE FlexFabric JH337A là switch quang và không hỗ trợ PoE ạ
