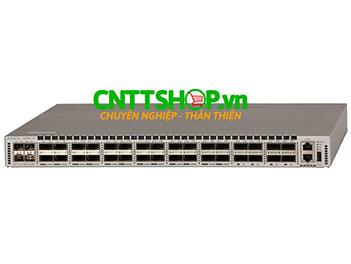

Arista JH580A 7050X 32QSPF 4SFP+ Back-to-Front AC Switch
HPE SKU : JH580A
Arista SKU :
List Price : $31,495
Bảo hành : 12 tháng
Made In : Asia
HPE và Arista chia sẻ một tầm nhìn chung về nhu cầu cung cấp các giải pháp và trải nghiệm CNTT an toàn được xây dựng trên cơ sở hạ tầng được xác định bằng phần mềm dẫn đầu ngành - giúp khách hàng vận hành khối lượng công việc của mình với tốc độ nhanh để phát triển kinh doanh. Sự hợp tác này sẽ cung cấp cho khách hàng các giải pháp mạng đã được chứng minh là vượt trội so với các giải pháp thay thế cũ và bổ sung cho tính toán, lưu trữ, ảo hóa và cung cấp dịch vụ Cloud của HPE.
Arista JH580A cung cấp một mục đích xây dựng giải pháp hiệu suất cao và hiệu quả năng lượng cho việc triển khai trung tâm dữ liệu mật độ cao. Với 32 cổng QSFP+ 40GbEvà 4 cổng SFP+ 10GbE, Back-to-Front AirFlow, AC Power Supply, bộ chuyển mạch Arista JH580A cung cấp non-blocking forwarding 2.56 Tbps với các tính năng chuyển đổi L2 và L3, độ trễ thấp kết hợp với các tính năng của software-defined cloud networking.

Thông số kỹ thuật
Specifications |
Ports |
32 x QSFP+
4 x SFP+
|
Total 40GbE ports |
32 |
Max 10GbE Ports |
96 |
Max 1GbE Ports |
4 |
Throughput |
2.56 Tbps |
Packets/Second |
1440 Mpps |
Latency (RJ45 to uplinks) |
550 ns |
CPU |
Quad-Core x86 |
System Memory |
4 gigabytes |
Flash Storage Memory |
4 GB |
Packet Buffer Memory |
12MB (Dynamic buffer allocation)
|
SSD storage (optional) |
120 gigabytes
|
10/100/1000 Mgmt Ports |
1 |
RS-232 Serial Ports |
1 (RJ-45) |
USB Ports |
1 |
Power Supplies |
2 (1+1 redundant) |
Hot-swappable Fans |
4 (N+1 redundant) |
Airflow Option |
Back-to-Front |
Size (WxHxD) |
19 x 1.75 x 16 in (48.3x 4.4x 40.64 cm)
|
Weight |
20 lb (9.1 kg)
|
Minimum EOS version |
4.14.0
|
Power supply specifications |
Typical Power Draw |
150W |
Max Power Draw |
302W |
Input voltage |
100-240AC |
Typical input current |
6.3-2.2A |
Input frequency |
50/60 Hz |
Input connector |
IEC 320-C13 |
Efficiency (typical) |
93% platinum |
Environmental characteristics |
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
Relative Humidity |
5 to 95% |
Operating Altitude |
0 to 10,000 ft, (0-3,000m) |
Standards compliance |
EMC |
Emissions: FCC, EN55022, EN61000-3-2, EN61000-3-3 or EN61000-3-11, EN61000-3-12 (as applicable) Immunity: EN55024
Emissions and immunity: EN300 386
|
Safety |
UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country differences
|
Certifications |
North America (NRTL)
European Union (EU)
BSMI (Taiwan)
C-Tick (Australia)
CCC (PRC)
MSIP (Korea)
EAC (Customs Union)
VCCI (Japan)
|
European Union Directives |
2006/95/EC Low Voltage Directive
2004/108/EC EMC Directive
2011/65/EU RoHS Directive
2012/19/EU WEEE Directive
|
Các tính năng của switch Arista JH580A
Layer 2 Features |
-
802.1w Rapid Spanning Tree
-
802.1s Multiple Spanning Tree Protocol
-
Rapid Per VLAN Spanning Tree (RPVST+)
-
4096 VLANs
-
Q-in-Q
-
802.3ad Link Aggregation/LACP - 64 ports/channel
- 104 groups per system
-
Multi-Chassis Link Aggregation (MLAG) - 64 ports per MLAG
-
Custom LAG Hashing
-
802.1AB Link Layer Discovery Protocol
-
802.3x Flow Control
-
Jumbo Frames (9216 Bytes)
-
IGMP v1/v2/v3 Snooping
-
Storm Control
-
RAIL
|
Layer 3 Features |
- Routing protocols: OSPF, OSPFv3, BGP, MP-BGP, IS-IS, and RIPv2
- 64-way Equal Cost Multipath Routing (ECMP)1
- Resilient ECMP Routes
- VRF
- BFD
- Route maps
- IGMP v2/v3
- PIM-SM/PIM-SSM/PIM-BIDIR
- Anycast RP (RFC 4610)
- VRRP
- Virtual ARP (VARP)
- Policy Based Routing
- uRPF
- Selective Route Download
|
Advanced Monitoring and Provisioning |
-
Zero Touch Provisioning (ZTP)
-
Latency Analyzer and Microburst Detection (LANZ) - Configurable Congestion Notification (CLI, Syslog)
- Streaming Events (GPB Encoded)
- Capture/Mirror of congested traffic
-
Advanced Monitoring - Port Mirroring (4 active sessions)
- L2/3/4 Filtering on Mirror Sessions
Mirrir to EOS/SSD
-
Advanced Event Management suite (AEM) - CLI Scheduler
- Event Manager
- Event Monitor
- Linux tools
-
Optional SSD for logging and data capture
-
Integrated packet capture/analysis with TCPDump
-
RFC 3176 sFlow
-
Restore & configure from USB
-
Blue Beacon LED for system identification
-
Software Defined Networking (SDN)
- eAPI
- OpenStack Neutron Support
|
Network Management |
- CloudVision
- 10/100/1000 Management Port
- RS-232 Serial Console Port
- USB Port
- SNMP v1, v2, v3
- Management over IPv6
- Telnet and SSHv2
- Syslog
- AAA
- Industry Standard CLI
|
Extensibility |
|
Virtualization Support |
|
Security Features |
- IPv4 / IPv6 Ingress & Egress ACLs using L2, L3, L4 fields
- MAC ACLs
- ACL Drop Logging
- ACL Counters
- Control Plane Protection (CPP)
- DHCP Relay / Snooping
- MAC Security
- TACACS+
- RADIUS
|
Quality of Service (QoS) Features |
- Up to 8 queues per port
- 802.1p based classification
- DSCP based classification and remarking
- Explicit Congestion Notification (ECN)
- QoS interface trust (COS/DSCP)
- Strict priority queueing
- Weighted Round Robin (WRR) Scheduling
- Per-Priority Flow Control (PFC)
- Data Center Bridging Extensions (DCBX)
- 802.1Qaz Enhanced Transmissions Selection (ETS)*
- ACL-based DSCP Marking
- ACL-based Policing
- Policing/Shaping
- Rate limiting
- Audio Video Bridging (AVB)
|
Module quang sử dụng cho switch Arista JH580A
Option cho switch Arista JH580A
Spare options |
JH617A |
Power cord C13 to C14 (2 m) |
JH615A |
Configurable fan module for Arista 7150, 7124SX(FX), 7050, 7050X 1U, 7280 & 7048-A switches (rear-to-front airflow) |
JH599A |
Spare 500W DC power supply for 7050X and 7280 series (rear-to-front airflow switch) |
JH600A |
Configurable 500W DC power supply for 7050X and 7280 series (rear-to-front airflow switch) |
Support |
JH601AAE |
Arista Expanded L3 Software Fix-2 E-LTU |
JH606AAE |
Arista Enhanced L3 Software 10G Fix-2 E-LTU |
JH608AAE |
Arista Provisioning Software 10G Fix-2 E-LTU |
JH609AAE |
Arista Virtualization Software 10G Fix-2 E-LTU |
JQ049AAE |
Arista FlexRoute L3 Lite Software Fix-2 E-LTU |
CloudVision |
JH523AAE |
Arista Cloudvision Software Unlimited 1 Month E-STU |
JH524AAE |
Arista Cloudvision Software Sw-500 1 Month E-STU |
JH525AAE |
Arista Cloudvision Software Sw-150 1 Month E-STU |
JH526AAE |
Arista Cloudvision Software Sw-1 1 Month E-STU |
JH527AAE |
Arista Cloudvision Lite Software Sw-1 1 Month E-STU |
JH895AAE |
Arista CloudVision Software Lab Switch-1 1 Month E-STU |
