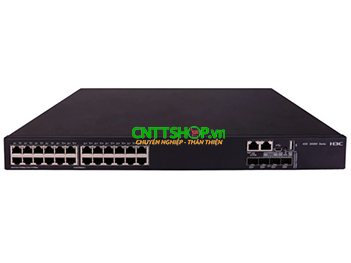

L3 Ethernet Switch H3C LS-5560X-30C-PWR-EI-GL
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
L3 Ethernet Switch H3C LS-5560X-30C-PWR-EI-GL có 24x 10/100/1000BASE-T ports PoE+, tổng công suất 720W, 4x 10G/1G BASE-X SFP+ ports và 1x Expansion slot, 2x power module slots (chưa đi kèm nguồn).
Thông số kỹ thuật switch H3C LS-5560X-30C-PWR-EI-GL
| Datasheet H3C LS-5560X-30C-PWR-EI-GL | |
| Specification | |
| Service ports | 24x 10/100/1000BaseT autosensing Ethernet PoE+ ports 4x 10G SFP+ ports |
| Console ports | 1x RJ-45 console port 1x Micro-USB console port Only the Micro-USB console port is available when you connect both ports |
| Management Ethernet ports | 1 Port |
| Expansion slots | 1 Slot |
| Compatible interface module | 2-port 40GE QSFP+ interface module 2-port 10G SFP+ interface module 2-port 25G SFP28 interface module 2-Port 10G BASE-T Interface Card with MACSec 2-Port 10G SFP Plus Interface Card with MACSec 4-Port 10/100/1000BASE-T Ethernet,6-Port SFP(2-Port Combo) Interface Module 8-Port 10G SFP Plus with MACSec Interface Module 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module |
| Performance | |
| Port Switching capacity | 288Gbps |
| Packet forwarding rate | 216 Mpps |
| Stacking bandwidth | Maximum 160Gbps |
| CPU | Dual Core, 800MHz |
| Flash/SDRAM | 1GB /2GB |
| Feature | |
| VLAN | Port-based VLAN (up to 4094 VLANs) MAC-based VLAN Protocol-based VLAN IP subnet based VLAN QinQ and flexible QinQ VLAN mapping Voice VLAN MVRP (GVRP analog) |
| Link aggregation | 1G/10G/40G port aggregation Static aggregation Dynamic aggregation, Multichassis link aggregation |
| Stacking | IRF2 Distributed device management, distributed link aggregation, and distributed resilient routing Stacking through standard Ethernet interfaces |
| SDN/OpenFlow | OpenFlow 1.3 Multiple controllers (equal/master/slave controller role) Concurrent processing of multiple flow tables Group table Meter |
| MAC address table | 64K MAC address entries Static MAC address Blackhole MAC address MAC learning limit |
| DHCP | DHCP client DHCP snooping DHCP relay DHCP server DHCP snooping Option 82/DHCP relay Option 82 |
| DNS | Static domain name resolution Dynamic domain name resolution for the client IPv4 and IPv6 address |
| Routing protocols | IPv4 routing number 32K IPv6 routing number 16K Static routing RIPv1/v2 and RIPng OSPFv1/v2/v3 BGP and BGP4+ for IPv6 Equal-cost multi-path routing (ECMP) and policy routing VRRP/VRRPv3 |
| VXLAN | VXLAN L2 switching VXLAN L3 routing VXLAN VTEP IS-IS+ENDP distributed control plane MP-BGP+EVPN distributed control plane OpenFlow+Netconf centralized control plane |
| Specification Dimensions | |
| Dimensions (H x W x D) | 43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in) |
| Weight | ≤ 9.2 kg (20.28 lb) |
| Power | |
| AC input voltage | PSR360-56A/PSR720-56A: Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz PSR1110-56A: Rated: 115 VAC to 240 VAC @ 50 Hz/60 Hz Max: 102.5 VAC to 264 VAC @ 47 Hz to 63 Hz |
| DC input voltage | PSR560-56D: Rated: –48 VDC to –60 VDC Max: –36 VDC to –72 VDC |
| Operating temperature | 0ºC to 45ºC (32°F to 113°F) |
| Operating humidity | 5% RH to 95% RH, non-condensing |
