Thiết bị chuyển mạch H3C LS-6860-30HF 24 SFP+
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|

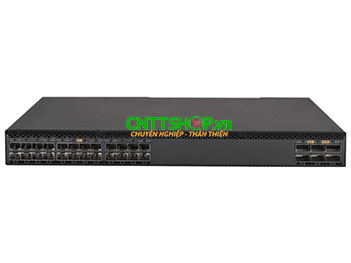

Data Center switch H3C LS-6860-30HF (S6860-30HF) với 24 cổng quang 10G SFP+, 6 cổng quang QSFP+ hoặc 2 cổng quang QSFP28, 2 slots module nguồn AC, 4 module quạt, 1 cổng mini USB port và 1 cổng USB port.
Thông số kỹ thuật switch H3C LS-6860-30HF
| Datasheet H3C LS-6860-30HF | |
| Specification | |
| SFP+ port | 24 × 1/10G SFP Plus ports |
| QSFP28 port | 6 × QSFP+ ports or 2 × QSFP28 ports (each QSFP+ port can be split into 4 × 10GE ports) |
| Console port | 1 |
| Management port | 1x GE copper port 1x one GE fiber port |
| USB port | 1 |
| Mini USB port | 1 |
| Fan tray slot | 4x Fan tray |
| Power module | 2x Power module slots |
| Air flow direction | From front to rear or from rear to front |
| Performance | |
| CPU | 2 core (1GHz) |
| Switching capacity | 960Gbps |
| Forwarding capacity | 720Mpps |
| Forwarding mode | Store-forward and cut-through modes |
| IPV4 routing table | 256K max |
| IPV6 routing table | 128K max |
| MAC address table | 272K max |
| Buffer | 12Mb |
| Stack number | Max 9 |
| Link aggregation group number | 1024 |
| Max ports in a group | 32 |
| Feature | |
| Virtualization | IRF2 Distributed device management, distributed link aggregation, and distributed resilient routing Using standard Ethernet interfaces for IRF connection Setting up an IRF fabric by using IRF member devices in the same site or geographically dispersed |
| Link aggregation | 10GE/40GE port aggregation Static aggregation, dynamic aggregation Link cross board aggregation, cross device link aggregation M-LAG |
| Data center | VXLAN Layer 2 gateway, VXLAN Layer 3 gateway EVPN distributed gateway 802.1Qbb PFC, 802.1Qaz ETS, ECN QCN, ETS, DCBX FCOE MAC & ARP assignment on demand EVB (VEB, VEPA, Muti-channel three modes) TRILL/TRILL & IRF SPB Netconf, python Service chain OpenFlow Telemetry Multiple Openflow controller |
| Specification Dimensions | |
| Dimensions (H × W × D) | 4.4 × 44 × 40 cm (1.73 × 17.32 × 15.75 in) |
| Weight | ≤ 10 kg (22.05 lb) |
| Power | |
| SAC-input voltage | 90 VAC to 290 VAC |
| DC-input voltage | –36 VDC to –72 VDC |
| Maximum heat consumption (BTU/hour) | Single AC: 263 Dual AC: 601 |
| Power module | 2 |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity (noncondensing) | 10% to 90%, noncondensing |
