| Hardware Version |
| Physical interfaces |

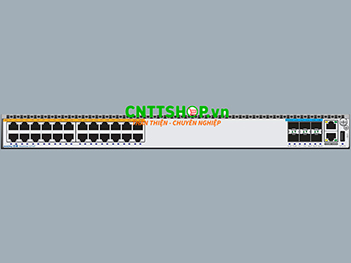

24 x 100/1000M Base-T interfaces, 6 x 10G SFP+ interfaces |
| PoE & PoE+ |
380W/760W |
| Switching capacity |
328Gbps |
| Extension slots |
One |
| Power slots |
Dual |
| Management interfaces |
One Console port, one management Ethernet port, one USB interface |
| Input voltage (AC) |
Input voltage (AC): 100V ~ 240V, 50Hz ~ 60Hz |
| Temperature |
Work temperature: 0℃ to 45℃ |
| Humidity |
Storage temperature: -40℃ to 70℃ |
| Software Specification |
| Interface |
Port Type UNI/NNI, Port Speed, Port MTU, Port Loopback, Loopback interface, Tunnel interface, Null interface, VXLAN interface |
| Ethernet Swithing |
LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug, Port isolation, QinQ, VLAN mapping, Super VLAN, PVLAN, Voice VLAN, STP, MSTP, G.8032, Loopback-detection, Error-disable, GVRP, MLAG, VLAN isolation |
| IP Protocol |
ARP, DHCP, DHCPv6, DHCP Server, DHCPv6 Server, DHCPv6 Client, DHCP Relay, DHCPv6 Relay, DHCP Option82, DNS, GRE, IPIP, IPv6 over IPv4, ISATAP, IPv4 over IPv6, IPv6 over IPv6 |
| Routing Protocol |
Static route for IPv4&IPv6, RIPv1/v2, RIPng, OSPFv2, OSPFv3, IS-IS, IS-ISv6, BGP, BGPv6, Policy Route |
| L2 multicast |
IGMPv1/v2/v3 Snooping, multicast VLAN |
| L3 multicast |
IGMPv1/v2/v3, PIM-SM, IPv6 PIM-SM, IPv6 PIM-SSM, PIM-DM, MSDP, MLD-snooping |
| QoS |
802.1p, DSCP, and other priority mapping, SP, WRED, WDRR, Flow classification, Traffic monitoring, Traffic shaping, Congestion management, Congestion avoidance, Flow-based mirroring |
| ACL |
Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, extended Hybrid ACL, Standard IPv6 ACL, extended IPv6 ACL |
| Stacking |
H-VST, M-VST, M-LAG |
| MAD |
MAD LACP, MAD BFD, MAD Fast-hello |
| ZTP mode A |
ZTP provisioning through DHCP server |
| ZTP mode B |
ZTP provisioning trough USB flash disk |
| L3 BGP MPLS |
MPLS LDP, MPLS L3 VPN, MPLS Option-A & Option-B, MPLS Ping/traceroute |
| MCE |
Multi-VRF |
| VxLAN |
Static VxLAN, EVPN VxLAN |
| Security |
ARP Check, AARF, AARF ARP-Guard, CPU Protection, Port Security, IP Source Guard, IPv6 Source Guard, ND-Snooping, DHCP Snooping, DHCPv6 Snooping, Dynamic ARP Inspection, Host Guard, PPPoE+, AAA, 802.1x, Portal, Anti-attack detect|drop|flood|log, URPF, AARF |
| Network Reliability |
HA, ULFD, G.8032, ULPP, Monitor Link, VRRP, VRRPv3, VBRP, BFD, EEP |
| Network Management |
SNMP v1/v2/v3, MIB, RMON, SYSLOG, DNS, CLI, Telnet, FTP/TFTP, Debug, NTP, Keepalive Gateway |
| Network Monitoring |
SPAN, RSPAN, IPFIX, sFlow, LLDP, IP-SLA, CWMP, NDSP, Telemetry, OAM |
