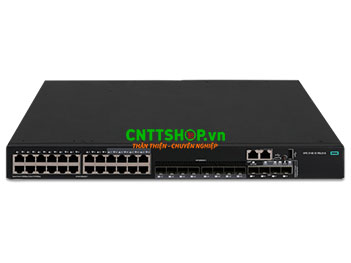

Switch HPE FlexNetwork 5140 HI R9L61A
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật switch HPE R9L61A
| Datasheet R9L61A | |
| Specifications | |
| I/O ports and slots | 24x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) with 8 combo ports (RJ45 or SFP) 4x 1/10G SFP+ ports 1 port expansion module slot Attention: SFP PLUS can also support 1G SFP and 1G SFP-GE-T (only works at GE) |
| Additional ports and slots | 1 dual-personality (RJ-45 or mini-USB) serial console port 1 RJ-45 out-of-band management port 1 USB 2.0 |
| Power Supplies | 2 field-replaceable and hot-swappable power supplies |
| Fan tray | Airflow direction is from side to back |
| Management | RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A |
| Hardware | |
| Memory and processor | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
| Performance | |
| Routing/Switching capacity | 288 Gbps |
| Throughput | 180 Mpps |
| 1000 Mb Latency | < 5 µs |
| 10 Gbps Latency | < 3 µs |
| Routing table size | 1K |
| MAC address table size | 32K |
| Environment | |
| Operating Temperature | 23°F to 113°F (-5°C to 45°C) |
| Acoustic | Low speed fan: 53.0 dB High speed fan: 68.9 dB. ISO 7779 |
| Electrical Characteristics | |
| Frequency | 50/60 Hz |
| Maximum heat dissipation Current | Ranges from 81.89 BTU/hr to 324 BTU/hr depending on power supply configuration 6A |
| Voltage | 100-240 VAC, rated (90-264 VAC, max)-48 to -60 VDC, rated (-36 to -72 VDC, max) (depending on power supply chosen) |
| Maximum power rating | 95 W (dual DC) |
| Idle power | 29 W (dual AC) |
| Physical characteristics | |
| Physical Dimensions | 17.32(W) x 14.17(D) x 1.71(H) in 44.00 x 36.00 x 4.36 cm 1U height (Mounts in an EIA standard 19-inch telco rack or equipment cabinet) |
| Weight | 6.7 kg |
