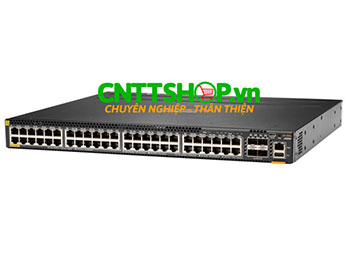

| Datasheet Aruba JL661A |
| Specifications |
| I/O ports and slots |
-
48x ports 10/100/1000 BASE-T PoE+ ports supporting up to 30W per port
-
4x 1/10/25/50G SFP ports
-
Supports PoE Standards IEEE 802.3af, 802.3at
|
| Additional |
|
| Ports And Slots |
1x OOBM
1x USB Type A host port
1x Bluetooth dongle to be used with CX Mobile App
|
| Power supplies |
2 field-replaceable, hot- swappable power supply slots
1 minimum power supply required (ordered separately)
Supported PSUs: JL086A, JL087A, JL670A
Max PoE power: 1600W
|
| Fan tray |
Switch has two fan tray slots and comes with two fan trays installed.
Fan trays are field replaceable and hot-swappable. Minimum 2 fan trays required.
Each fan tray is comprised of two fans.
|
| Physical characteristics |
| Dimensions |
17.4 (w) x 15.2 (d) x 1.73 (h) in (44.2 x 38.5 x 4.4 cm)
|
| Weight |
12.61 lbs (5.72 kg) |
| CPU, Memory And Flash |
| Processor |
Quad Core ARM Cortex™ A72 @ 1.8GHz |
| Memory |
8 GBytes DDR4
|
| Flash |
32 GBytes eMMC |
| Mounting and enclosure |
Rack Mount 1U |
| Performance |
| Packet Buffer |
8 MB packet buffer memory
|
| System switching capacity |
880 Gbps |
| System throughput capacity |
660 Mpps |
| Model switching capacity |
496 Gbps |
| Model throughput capacity |
369 Mpps |
|
Average latency
(LIFO, 64-byte packets)
|
-
1Gbps: 2.28µSec
-
10Gbps: 1.46µSec
-
25Gbps: 1.90µSec
-
50Gbps: 3.49µSec
|
| Stack size |
10 members |
| Max stacking distance |
Up to 10 kms with long range transceivers |
| Stacking bandwidth |
200 Gbps |
| Switched virtual interfaces (dual stack) |
1,000 |
| IPv4 host table (ARP) |
28,800 |
| IPv6 host table (ND) |
28,800 |
| IPv4 unicast routes |
64,000 |
| IPv6 unicast routes |
32,000 |
| IPv4 multicast routes |
8,000 |
| IPv6 multicast routes |
8,000 |
| MAC table capacity |
29,490 |
| IGMP groups |
8,000 |
| MLD groups |
4,000 |
| IPv4/IPv6/MAC ACL entries (ingress) |
5000/1250/5000 |
| IPv4/IPv6/MAC ACL entries (engress) |
2000/500/2000 |
| Environment |
| Operating temperature |
32°F to 113°F (0°C to 45°C), up to 5,000 feet
32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet
1°C de-rating per 1,000 feet above 5,000 feet
Can support excursion to 131°F (55°C) for short periods1 of time. Operating temperature is reduced to 32°F (0°C) to 104°F (40°C) up to 5000ft when 10G SFP+ LR or ER Transceivers are installed.
|
| Operating relative humidity |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
| Non-operating temperature |
-40°F to 158°F ('-40°C to 70°C) |
| Non-operating humidity |
15% to 95% relative humidity at 149°F(65°C), non-condensing |
| Max operating altitude |
Up to 10,000ft (3.048 Km) |
| Max non-operating altitude |
Up to 15,000ft (3.048 Km) |
| Acoustic |
Sound power, LWAd = 4.7 Bel
Sound pressure, LpAm (bystander) = 29.8 dB
|
| Primary airflow |
Front and side-to-back |
| Electrical characteristics |
| Frequency |
50/60 Hz
|
| AC voltage |
JL670A PSU: 110V-120V/208V-240V
JL086A PSU: 100V-240V
JL087A PSU: 110V-240V |
|
Current (for voltages listed above)
|
JL670A PSU: 11A/8A
JL086A PSU: 8A/3.5A
JL087A PSU: 12A/5A |
| Power consumption (230VAC) |
With JL086A PSU:
Hibernation (0 rpm fan): 18W
Idle: 70W
100% traffic rate: 90W
With JL087A PSU:
Hibernation (0 rpm fan): 16W
Idle: 71W
100% traffic rate: 88W
With JL670A PSU:
Hibernation (0 rpm fan): 16W
Idle: 73W
100% traffic rate: 96W
|
| Safety and Emissions |
| Safety |
Europe: EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013
US: UL 60950-1 2nd Ed
Canada: CAN/CSA-C22.2 No. 60950-1-07
Worldwide: IEC 60950-1:2005 w/all known National Deviations
|
| Emissions |
Europe: EN 55022:2010, Class A EN 55032:2012, Class A EN 55024:2010, EN 61000-3-2:2014,
EN 61000-3-3:2013
US: FCC part 15 Class A
Canada: ICES-003 Class A
Worldwide: VCCI Class A, CISPR 22 Class A CISPR 32 Class A CISPR 24:2010
|
| Lasers |
EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
|
| Immunity |
Generic: CISPR 24 / CISPR 35
EN: EN 55024:2010 / EN 55035:2017
ESD: IEC 61000-4-2
Radiated: IEC 61000-4-3
EFT/Burst: IEC 61000-4-4
Surge: IEC 61000-4-5
Conducted: IEC 61000-4-6
Power frequency magnetic field: IEC 61000-4-8
Voltage dips and interruptions: IEC 61000-4-11
Harmonics: IEC 61000-3-2, EN 61000-3-2
Flicker: IEC 61000-3-3, EN 61000-3-3
|
