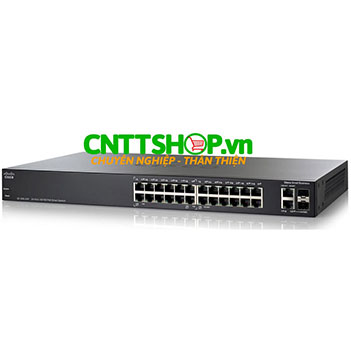

Switch Cisco SLM224PT-EU 24 Ports 10/100 (12 Ports PoE 100W) 2 combo mini-GBIC ports

2 x Gigabit Ethernet Uplink

2 x Gigabit Ethernet Expansion Slot

Fast Ethernet

10/100Base-TX

1000Base-X

• SLM224PT-EU Smart Switch
• Power Cord
• Mounting hardware
• CD-ROM with user documentation (PDF)
• Quick-start guide

• 802.3
• 802.3u
• 802.3ab
• 802.3ad
• 802.3z
• 802.3x
• 802.1D
• 802.1Q
• 802.1p
• 802.1w
• 802.1X
• 802.3af

• DHCP
• VLAN
• Syslog
• QoS
• Web Based Management
• RMON
• MIB

• Category 5 Ethernet network cable TCP/IP, network adapter Installed

• Windows
• Linux
• Mac OS X

• Mozilla Firefox version 2.5 or later
• Microsoft Internet Explorer version 6 or later

220 V AC

Layer 2 Switching

Spanning Tree Protocol (STP)

Standard 802.1d STP support

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default

Port grouping

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

VLAN

Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). 16 VLANs supported in SG200-08
and SG200-08P

Port-based and 802.1Q tag-based VLANs

Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Internet Group Management Protocol (IGMP) versions 1 and 2 snooping

IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups (16 for SG200-08 and SG200-08P)

Head-of-line (HOL) blocking

HOL blocking prevention

Security

IEEE 802.1X (Authenticator role)

802.1X: RADIUS authentication, MD5 hash

Port security

Locks MAC addresses to ports, and limits the number of learned MAC addresses

Storm control

Broadcast, multicast, and unknown unicast

DoS prevention

DoS attack prevention

Quality of Service

Priority levels

4 hardware queues

Scheduling

Strict priority and weighted round-robin (WRR)

Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

Class of service

Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ)

Rate limiting

Ingress policer, per VLAN and per port

Standards

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 2618

IPv6

IPv6

IPv6 host mode

IPv6 over Ethernet

Dual IPv6/IPv4 stack

IPv6 neighbor and router discovery (ND)

IPv6 stateless address auto-configuration

Path maximum transmission unit (MTU) discovery

Duplicate address detection (DAD)

Internet Control Message Protocol (ICMP) version 6

IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) support

IPv6 QoS

Prioritize IPv6 packets in hardware

Multicast Listener Discovery (MLD) snooping

Deliver IPv6 multicast packets only to the required receivers

IPv6 applications

Web, ping, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), RADIUS, syslog, DNS client

IPv6 RFCs supported

RFC 2463: ICMP version 6

RFC 3513: IPv6 address architecture

RFC 4291: IPv6 addressing architecture

RFC 2460: IPv6 specification

RFC 2461: Neighbor discovery for IPv6

RFC 2462: IPv6 stateless address auto-configuration

RFC 1981: Path maximum transmission unit (MTU) discovery

RFC 4007: IPv6 scoped address architecture

RFC 3484: Default address selection mechanism

RFC 4214: ISATAP tunneling

RFC 4293: MIB IPv6: Textual conventions and general group

RFC 3595: Textual conventions for IPv6 flow label

Product Ordering Number

Description

MFE Transceivers

MFEBX1

100BASE-BX-20U SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 20 km

MFELX1

100BASE-LX SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 15 km

MFEFX1

100BASE-FX SFP transceiver for multimode fiber, 1310 nm wavelength, supports up to 2 km

MGE Transceivers

MGBBX1

1000BASE-BX-20U SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 10 km

MGBLH1

1000BASE-LH SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 40 km

MGBLX1

1000BASE-LX SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 10 km

MGBSX1

1000BASE-SX SFP transceiver for multimode fiber, 850 nm wavelength, supports up to 500 m
