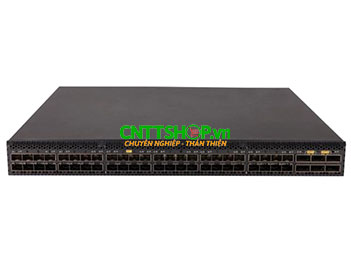

Layer 3 Data Center Switch H3C LS-6860-54HF
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thiết bị chuyển mạch H3C L3 LS-6860-54HF có 48x 10G SFP+, 6x 40g QSFP+ hoặc 2x 100G QSFP28. Khả năng chuyển mạch lên đến 1.44 Tbps, tốc độ chuyển gói là 720 Mpps, hỗ trợ tính năng stack tối đa 9 member, VXLAN, Link aggregation 1024 group number.
Thông số kỹ thuật switch H3C LS-6860-54HF
| Datasheet H3C LS-6860-54HF | |
| Specification | |
| Port | 24 × SFP Plus port 6 × QSFP+ ports or 2 × QSFP28 ports |
| Console port | 1 |
| Management port | 1x 1G copper port 1x 1G fiber port |
| USB port | 1x USB port 1x Mini USB port |
| Fan tray slot | 4x Fan tray |
| Power module | 2x Power module slots |
| Air flow direction | From front to rear or from rear to front |
| Performance | |
| Switching capacity | 1.44 Tbps |
| Forwarding capacity | 720 Mpps |
| CPU | 2 core (1GHz) |
| Latency | 64 byte |
| Forwarding mode | Store-forward and cut-through modes |
| IPV4 routing table | 256K max |
| IPV6 routing table | 128K max |
| MAC address table | 272K max |
| Buffer | 12Mb |
| Stack number | 9 Max |
| Link aggregation group number | 1024 |
| Max ports in a group | 32 |
| Feature | |
| VLAN | Port-based VLAN (quantity: 4094) Super VLAN MAC VLAN Basic QinQ, flexible QinQ |
| Traffic monitoring | sFlow |
| DHCP | DHCP server/client DHCP snooping/DHCP relay DHCP snooping support for Option 82/DHCP relay agent support for Option 82 |
| IP routing | Stating routing, RIPv1/v2, OSPFv1/v2/v3, BGP, IS-IS ECMP, VRRP, policy-based routing BGP4+ for IPv6, VRRP, IPv6 policy-based routing |
| Multicast | IGMP snooping v2/v3 IGMPv1/v2/v3 PIM-DM/SM IPv6 PIM-DM/SM/SSM BIDIR-PIM, MSDP MLD snooping Multicast policy |
| Link aggregation | 10GE/40GE port aggregation Static aggregation, dynamic aggregation Link cross board aggregation, cross device link aggregation M-LAG |
| Data center | VXLAN Layer 2 gateway, VXLAN Layer 3 gateway EVPN distributed gateway 802.1Qbb PFC, 802.1Qaz ETS, ECN QCN, ETS, DCBX FCOE MAC & ARP assignment on demand EVB (VEB, VEPA, Muti-channel three modes) TRILL/TRILL & IRF SPB Netconf, python Service chain OpenFlow Telemetry Multiple Openflow controller |
| Specification Dimensions | |
| Dimensions (H × W × D) | 4.4 × 44 × 40 cm (1.73 × 17.32 × 15.75 in) |
| Weight | ≤ 10 kg (22.05 lb) |
| Power | |
| SAC-input voltage | 90 VAC to 290 VAC |
| DC-input voltage | –36 VDC to –72 VDC |
| Maximum heat consumption (BTU/hour) | Single AC: 263 Dual AC: 601 |
| Power module | 2 |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity (noncondensing) | 10% to 90%, noncondensing |
