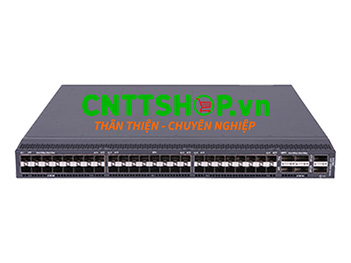

| Datasheet LS-6800-54QF-H3 S6800-54QF |
| Product Specifications |
| Functions and Features |
| Port Switching Capacity |
1.44Tbps |
| Forwarding performance |
1080Mpps |
| Device Virtualization |
IRF2
DRNI |
| Network Virtualization |
VXLAN
MP-BGP EVPN
TRILL
SPB |
| SDN |
VCFC Controller |
| Data center features |
FC/FCoE
RDMA and RoCE
802.1Qbb PFC, 802.1Qaz ETS, ECN, DCBX
SPB
TRILL
OpenFlow1.3.1
Service chain
Netconf , Python |
| Jumbo Frame |
yes |
| MAC address table |
Static MAC address
Blackhole MAC address |
| VLAN |
Port-based VLAN (4094)
Default VLAN |
| Traffic monitoring |
sFlow |
| DHCP |
DHCP Server/Client
DHCP Snooping
DHCP Relay
DHCP Snooping option82/DHCP Relay option82 |
| ARP |
Static table entry
Gratuitous ARP
Dynamic ARP Inspection
ARP anti-attack
ARP source suppression
ARP Detection function (check according to DHCP Snooping safety entry, 802.1x table entry or IP/MAC
static binding table entry) |
| IPv4 routing |
Static routing, RIP v1/2, OSPFv1/v2/v3, BGP, IS-IS
Equal-Cost Multi-Path routing (ECMP), VRRP, policy-based routing |
| IPv6 routing |
RIPng, OSPF v3, IS-IS v6
BGP4 + for IPv6, VRRP, IPv6 routing strategy
ND (Neighbor Discovery)
PMTU
ICMP v6, Telnet v6, SFTP v6, SNMP v6, BFD v6, VRRP v3
IPv6 Portal
IPv6 tunnel |
| Multicast protoco |
IGMP Snooping v2/v3
IGMP v1/v2/v3
PIM-DM/SM
IPv6 PIM-DM/SM/SSM
PIM, MSDP
MLD Snooping
Multicast policy |
| Zero configuration |
Auto-config and Configure Rollback |
| MPLS |
MCE
MPLS VPN and VPLS |
| MSTP |
STP/RSTP/MSTP
PVST+/RPVST+
STP Root Guard
BPDU Guard |
| QoS/ACL |
Flow control
Committed Access Rate (CAR)
Eight output queues per port
Flexible queue scheduling algorithm can be set based on port and queue, support SP, WRR, WFQ, SP + WRR, SP + WFQ and
other models
802.1p and DSCP priority re-marking
L2 (Layer 2) ~ L4 (Layer 4) packet filtering based on source MAC address, destination MAC address, source IP (IPv4/IPv6)
address, destination IP (IPv4/IPv6) address, port, protocol, and VLAN Traffic Classification
Time range
Weighted Random Early Detection (WRED) |
| Mirror |
Flow Mirroring
N: 4 port mirroring
Local and remote port mirroring |
| Security |
Hierarchical user management and password protection
AAA authentication support
RADIUS authentication
HWTACACS
SSH 2.0，SCP
IP + MAC + port binding
IP Source Guard
HTTPs
SSL
Public Key Infrastructure (PKI)
Unicast/Multicast/Broadcast Suppression (percent or pps) |
| Firmware upgrade |
Upgrade via the XModem, File Transfer Protocol (FTP) and Trivial File Transfer Protocol (TFTP) |
| Management and maintenance |
Configuration via CLI, Telnet, and Console port
Schedule job
ISSU
SNMP（Simple Network Management Protocol）
Remote Monitoring(RMON) alarm, event, and history recording
H3C Intelligent Management Centre (iMC)
System log，syslog
Hierarchical alarm
NTP
Power, fan and temperature alarms
Debug string output
Ping, Tracert
Track, LLDP, LLDP-MED
Telnet remote maintenance
Copy switch files to and from a USB flash drive |
| EMC |
FCC Part 15 Subpart B CLASS A
ICES-003 CLASS A
VCCI CLASS A
CISPR 32 CLASS A
EN 55032 CLASS A
AS/NZS CISPR32 CLASS A
CISPR 24
EN 55024
EN 61000-3-2
EN 61000-3-3
ETSI EN 300 386 |
| Safety |
UL 60950-1
CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1
AS/NZS 60950-1
FDA 21 CFR Subchapter J
GB 4943.1 |
| Performance and Scalability |
| Maximum number of MAC address entries |
288K |
| Maximum number of IPv4 Forwarding routes (FIB IPv4) |
250K |
| Maximum number of IPv6 Forwarding routes (FIB IPv6) |
120K |
| Dynamic ARP table size |
208K |
| IPv6 ND (Neighbor Discovery) table size |
104K |
| Maximum Number of multicast routes (Multicast FIB IPv4/IPv6) |
16K/8K |
| Maximum ACL number |
16K ingress
1K egress |
| Maximum number of VSIinterface |
(8k-1)
(4K-1 border) |
Maximum number of
tunnel endpoints (VTEP) |
4K |
Maximum number of
VLAN-interface |
2K |
| Maximum number of lag group |
1024 |
| Maximum number of links in a lag group |
32 |
| Jumbo |
10,000 |
| Hardware |
| Dimensions (H ×W ×D) |
44×440×400 mm (1U)
1.73×17.32×15.75 in |
| Weight |
≤13kg
(28.66 lb) |
| Console port |
Console :1; Mini USB Console: 1 |
| Flash/Memory |
1GB/4GB |
| Ethernet port for management |
10M/100M/1000M Base-T: 1
SFP 1000Base-X: 1 |
| USB port |
1 |
| 1/10G Base-T port |
- |
| 1/10G SFP+ port |
48 |
| QSFP port |
6 |
| QSFP28 port |
- |
| Module slot |
- |
| Input Voltage – AC |
Related voltage range: 100V to 240V AC, 50/60Hz Maximum voltage range: 90V to 290V AC |
| Input Voltage – DC |
Related voltage range: -38.4V to -72V DC |
| Power module |
Two |
| Fan |
Three hot-swappable fan, fan speed adjustable and wind invertible |
Power consumption
(idle) |
PSR250-12A
/PSR250-12A1：
Single AC：65W
Dual AC：71W
PSR450-12A1：
Single AC：68W
Dual AC：79W
PSR450-12D：
Single DC：67W
Dual DC：76W |
| Power consumption (fully loaded) |
PSR250-12A/PSR250-
12A1：
Single AC：165W
Dual AC：175W
PSR450-12A1：
Single AC：166W
Dual AC：175W
PSR450-12D：
Single DC：166W
Dual DC：171W |
