| Product Configurations |
| Device Structure |
Desktop |
| Physical Port |

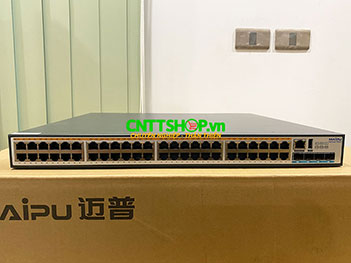

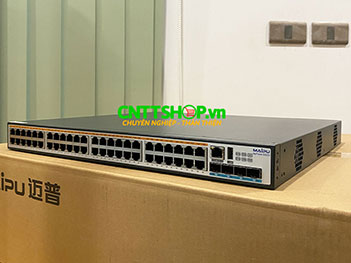

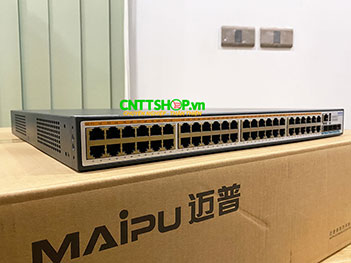

48x 10/100/1000M electric interfaces, 4x 10G SFP+ interfaces, One 2x 10g extension slot, One AC Power Supply. |
| Memory |
256MB Flash, 1GB RAM |
| RJ45 Console Port |
1 |
| USB Port |
1 |
| Extension slot |
1 |
| Power Supply |
One |
| Intelligent Fans |
Yes |
| Performance Parameters |
| Switching Capability |
216 Gbps |
| Throughput |
95.2Mpps |
| Jumbo |
12K |
| VLAN Entry |
4K |
| MAC Entry |
32K |
| Routing Entry |
496 |
| ACL Entry |
2K |
| Packet Buffer |
12Mbit |
| Anti-static |
Yes |
| Anti-lightning |
6KV |
| MTBF |
>80000 hours |
| Physical Index |
| Dimension (W×D×H) (mm) |
442 x 380 x 44 |
| Power Supply |
| Power Input |
AC 100-240V, 50-60Hz |
| Power Consumption (MAX) |
≤50W |
| POE Power Consumption (MAX) |
760W |
| Environment |
| Working Temperature |
0℃～50℃ |
| Humidity |
10～90%, non-condensing |
| Software Features |
| Standard L2 protocol |
LAN |
Port Type UNI/NNI, Port Speed, Port MTU, Switch Port, Port Loopback, Port Energy Control, Loopback interface, Null interface, Storm Control |
| MAC address aging time, Mac address learning on|off, Mac address learning limitation, Mac address VLAN bunding, MAC debug |
| VLAN, VLAN PVID, VLAN interface, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, VLAN Debug |
| STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard |
| G.8032(ERPSv1&v2) |
| Static Multicast, IGMP Snooping, Multicast Control |
| LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug |
| Error-disable based on bpduguard|Dai|DHCP Snooping|Link-Flap|Loopback-detect|Port Security|Storm Control|Transceiver Power, Error-disable recovery |
| UDLD, Track, Loopback Detection, Loopback Debug |
| Standard L3 protocol |
Routing Protocol |
Static route |
| DHCP |
DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DHCP Option51/82 |
| Stacking |
VST |
VST Member, VST Domain, VST Member Priority, VSL Channel |
| MAD |
MAD LACP, MAD Fast-hello |
| Network Security |
Port Security |
Port Security On aging|deny|permit|violation|ACL |
| Network Security |
IP Source Guard, DHCP Snooping, Host Guard, Dynamic ARP Inspection |
| Access Control List |
Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, Standard Hybrid ACL, extended Hybrid ACL |
| Anti-attack |
Anti-attack detect|drop|flood|log |
| AAA |
Authentication, Authorization, Accounting, Radius, TACACS, 802.1x |
| QoS |
Flow Classification |
LP, 802.1P priority, DSCP priority |
