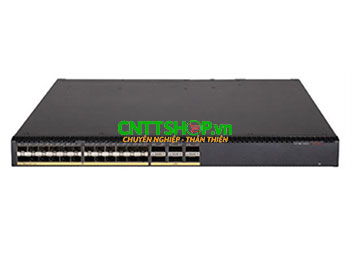

Switch Layer 3 H3C LS-6812-24X6C Data Center
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thiết bị chuyển mạch Layer 3 H3C LS-6812-24X6C chuyên dùng cho mạng Data Center, với 24 cổng 10G SFP+ và 6 cổng 100G QSFP28, 2 slots module nguồn AC. Tốc độ chuyển mạch lên đến 1680 Gbps, tốc độ chuyển tiếp gói tin lên đến 600 Mpps. Các tính năng chính IPv4/IPv6 routing, VxLAN, MPLS/VPLS, Multicast.
Thông số kỹ thuật switch H3C LS-6812-24X6C
| Datasheet H3C LS-6812-24X6C | |
| Specification | |
| SFP+ port | 24×10G SFP+ Ports |
| QSFP28 port | 6×100G QSFP28 Ports |
| Serial console port | 1 |
| Out-of-band management port | 1 |
| Fan tray slot | 3 Hot-swappable fans, fan speed adjustable and wind invertible |
| Power module slot | 2 |
| Air flow direction | Front to rear or rear to front |
| Hardware | |
| CPU | 2000MHz@ - 4Core |
| SDRAM | 4GB |
| Flash | 1GB |
| Performance | |
| Switching capacity | 1680 Gbps |
| Forwarding capacity | 600 Mpps |
| Buffer | 10Mb |
| Feature | |
| Device Virtualization | IRF2.0 M-LAG(DRNI) S-MLAG |
| Network Virtualization | BGP-EVPN VxLAN EVPN ES |
| VxLAN | L2 VxLAN gateway L3 VxLAN gateway Distributed VxLAN gateway Centralized VxLAN gateway EVPN VxLAN manual configured VxLAN IPv4 VxLAN tunnel IPv6 VxLAN tunnel |
| IPv4 routing | RIP(Routing Information Protocol) v1/2, OSPF (Open Shortest Path First) v1/v2, ISIS(Intermediate System to Intermediate system), BGP (Border Gateway Protocol), Routing policy, VRRP, PBR, RIPng |
| Specification Dimensions | |
| Dimensions (H × W × D) | 44 × 36 × 4.36 cm |
| Weight | ≤ 5.5 kg (12.13 lb) |
| Power | |
| Static power consumption | Single AC：29W Dual AC：35W |
| Typical power consumption | Single AC: 131W Dual AC: 134W |
| Maximum heat consumption (BTU/hour) | Single AC: 447 Dual AC: 457 |
| MTBF(day) | 63.4 |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity (noncondensing) | 5% to 95% |
