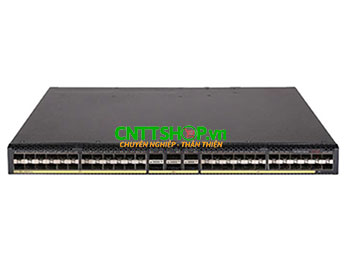

Layer 3 Data Center Switch H3C LS-6812-48X6C 48 Cổng Quang 10G
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thiết bị chuyển mạch lớp 3 H3C LS-6812-48X6C có 48 cổng 1/10G SFP+ và 6 cổng 100G QSFP28, với 2 slots module nguồn rời AC. Khả năng chuyển mạch lên đến 2160 Gbps, tốc độ chuyển gói lên đến 600 Mpps.
Thông số kỹ thuật switch H3C LS-6812-48X6C
| Datasheet H3C LS-6812-48X6C | |
| Specification LS-6812-48X6C | |
| SFP+ port | 48 × 10G SFP Plus ports |
| QSFP28 port | 6 × 100G QSFP28 ports |
| Console port | 1x Serial console port |
| Management port | 1x Out-of-band management port |
| Fan tray slot | 3 Hot-swappable fans, fan speed adjustable and wind invertible |
| Power module | 2x Power module slots |
| Air flow direction | Air flow direction |
| Performance | |
| CPU | CPU 4Core (2000MHz) |
| SDRAM | 4GB |
| Flash | 1GB |
| Switching capacity | 2160 Gbps |
| Forwarding capacity | 600 Mpps |
| Buffer | 10Mb |
| Feature | |
| VxLAN | IL2 VxLAN gateway, L3 VxLAN gateway, Distributed VxLAN gateway, Centralized VxLAN gateway, EVPN VxLAN, manual configured VxLAN, IPv4 VxLAN tunnel, IPv6 VxLAN tunnel |
| Lossless network | PFC and ECN, DCBX, RDMA and ROCE, ECN overlay |
| Traffic analysis | Sflow |
| Reliability | LACP, STP/RSTP/MSTP protocol, PVST compatible, STP Root Guard and BPDU Guard, RRPP and ERPS, Ethernet OAM, Smartlink, DLDP, BFD for OSPF/OSPFv3, BGP/BGP4, IS-IS/IS-ISv6, PIM/IPM for IPv6 and Static route, VRRP and VRRPE |
| Specification Dimensions | |
| Dimensions (H × W × D) | 44 × 36 × 4.36 cm |
| Weight | 6 kg (13.23 lb) |
| Power | |
| Static power consumption | Single AC：29W Dual AC：36W |
| Typical power consumption | Single AC: 163W Dual AC: 162W |
| Maximum heat consumption (BTU/hour) | Single AC: 556 Dual AC: 553 |
| MTBF(day) | 60.8 |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating humidity (noncondensing) | 5% to 95% |
