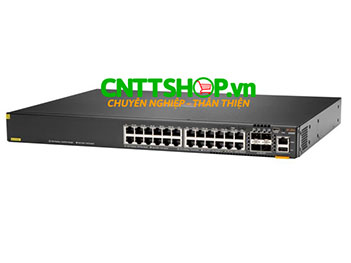

| Datasheet Aruba JL666A |
| Specifications |
| I/O ports and slots |
-
24x ports 10/100/1000 BASE-T PoE+ ports supporting up to 30W per port
-
4x 1/10/25/50G SFP ports
-
Supports PoE Standards IEEE 802.3af, 802.3at
|
| Additional |
|
| Ports And Slots |
1x OOBM
1x USB Type A host port
1x Bluetooth dongle to be used with CX Mobile App
|
| Power supplies |
Internal (fixed) power supply (900W)
Max PoE power: 370W
|
| Fan tray |
Fixed fans.
|
| Physical characteristics |
| Dimensions |
17.4 (w) x 12.9 (d) x 1.73 (h) in
(44.2 cm x 32.7 x 4.39 cm))
|
| Weight |
10.91 lbs (4.95 kg) |
| CPU, Memory And Flash |
| Processor |
Quad Core ARM Cortex™ A72 @ 1.8GHz |
| Memory |
8 GBytes DDR4
|
| Flash |
32 GBytes eMMC |
| Mounting and enclosure |
Rack Mount 1U |
| Performance |
| Packet Buffer |
8 MB packet buffer memory
|
| System switching capacity |
880 Gbps |
| System throughput capacity |
660 Mpps |
| Model switching capacity |
448 Gbps |
| Model throughput capacity |
334 Mpps |
|
Average latency
(LIFO, 64-byte packets)
|
-
1Gbps: 2.28µSec
-
10Gbps: 1.46µSec
-
25Gbps: 1.90µSec
-
50Gbps: 3.49µSec
|
| Stack size |
10 members |
| Max stacking distance |
Up to 10 kms with long range transceivers |
| Stacking bandwidth |
200 Gbps |
| Switched virtual interfaces (dual stack) |
1,000 |
| IPv4 host table (ARP) |
28,800 |
| IPv6 host table (ND) |
28,800 |
| IPv4 unicast routes |
64,000 |
| IPv6 unicast routes |
32,000 |
| IPv4 multicast routes |
8,000 |
| IPv6 multicast routes |
8,000 |
| MAC table capacity |
29,490 |
| IGMP groups |
8,000 |
| MLD groups |
4,000 |
| IPv4/IPv6/MAC ACL entries (ingress) |
5000/1250/5000 |
| IPv4/IPv6/MAC ACL entries (engress) |
2000/500/2000 |
| Environment |
| Operating temperature |
32°F to 113°F (0°C to 45°C), up to 5,000 feet
32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet
1°C de-rating per 1,000 feet above 5,000 feet
Can support excursion to 131°F (55°C) for short periods1 of time.
|
| Operating relative humidity |
15% to 95% relative humidity at 104°F (40°C), non-condensing |
| Non-operating temperature |
-40°F to 158°F ('-40°C to 70°C) |
| Non-operating humidity |
15% to 95% relative humidity at 149°F(65°C), non-condensing |
| Max operating altitude |
Up to 10,000ft (3.048 Km) |
| Max non-operating altitude |
Up to 15,000ft (3.048 Km) |
| Acoustic |
Sound power, LWAd = 5 Bel
Sound pressure, LpAm (bystander) = 31.0 dB
|
| Primary airflow |
Front and side-to-back |
| Electrical characteristics |
| Frequency |
50/60 Hz
|
| AC voltage |
Fixed PSU: 100V-120V/200V-240V |
|
Current (for voltages listed above)
|
Fixed PSU: 11A/6A |
| Power consumption (230VAC) |
Hibernation (0 rpm fan): 12W
Idle: 52W
100% traffic rate: 67W
|
