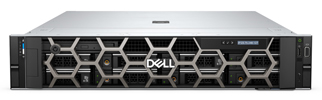

Datasheet Dell Precision 7960 Rack |
MODEL NUMBER |
Precision 7960 Rack |
Chipset |
Intel C741 |
PROCESSOR OPTIONS Optional
dual processsors: Up to 128 cores
(2 x 64 cores)
|
Intel® Xeon® Platinum 8592+ 320MB Cache, 64 cores, 128 threads, 1.9 GHz to 3.9 GHz Turbo, 350W
Intel® Xeon® Platinum 8580 300MB Cache, 60 cores, 112 threads, 2.1 GHz to 4.0 GHz Turbo, 350W
Intel® Xeon® Platinum 8568Y+ 300MB Cache, 48 cores, 96 threads, 2.3 GHz to 4.0 GHz Turbo, 350W
Intel® Xeon® Platinum 8562Y+ 60MB Cache, 32 cores, 64 threads, 2.8 GHz to 4.1 GHz Turbo, 300W
Intel® Xeon® Gold 6548Y+ 60MB Cache, 32 cores, 64 threads, 2.5 GHz to 4.1 GHz Turbo, 250W
Intel® Xeon® Gold 6542Y 60MB Cache, 24 cores, 48 threads, 2.9 GHz to 4.1 GHz Turbo, 250W
Intel® Xeon® Gold 6534 22.5MB Cache, 8 cores, 16 threads, 3.9 GHz to 4.2 GHz Turbo, 195W
Intel® Xeon® Gold 6526Y 37.5MB Cache, 16 cores, 32 threads, 2.8 GHz to 3.9 GHz Turbo, 195W
Intel® Xeon® Silver 4514Y 30MB Cache, 16 cores, 32 threads, 2.0 GHz to 3.4 GHz Turbo, 150W
Intel® Xeon® Silver 4510 30MB Cache, 12 cores, 24 threads, 2.4 GHz to 4.1 GHz Turbo, 150W
Intel® Xeon® Silver 4509Y 22.5MB Cache, 8 cores, 16 threads, 2.6 GHz to 4.1 GHz Turbo, 125W
Intel® Xeon® Silver 4410Y, 30MB cache, 12 cores, 24 threads, 2.0GHz to 3.9GHz Turbo, 150W
Intel® Xeon® Gold 5415+, 22.5MB cache, 8 cores, 16 threads, 2.9GHz to 4.1GHz Turbo, 150W
Intel® Xeon® Silver 4416+, 37.5MB cache, 20 cores, 40 threads, 2.0GHz to 3.9GHz Turbo, 165W
Intel® Xeon® Gold 5418Y, 45MB Cache, 24 cores, 48 threads, 2.0GHz to 3.8GHz Turbo, 185W
Intel® Xeon® Gold 5420+, 52.5MB cache, 28 cores, 56 threads, 2.0GHz to 4.1GHz Turbo, 205W
Intel® Xeon® Gold 6430, 60MB cache, 32 cores, 64 threads, 2.1GHz to 3.4GHz Turbo, 270W
Intel® Xeon® Gold 6434, 22.5MB cache, 8 cores, 16 threads, 3.7 GHz to 4.1GHz Turbo, 195W
Intel® Xeon® Gold 6426Y, 37.5MB cache, 16 cores, 32 threads, 2.6GHz to 4.0GHz Turbo, 185W
Intel® Xeon® Gold 6442Y, 60MB cache, 24 cores, 48 threads, 2.5GHz to 4.0GHz Turbo, 185W
Intel® Xeon® Gold 6448Y, 60MB cache, 32 cores, 64 threads, 2.1GHz to 4.1GHz Turbo, 225W
Intel® Xeon® Gold 6444Y, 45MB cache, 16 cores, 32 threads, 3.6GHz to 4.0GHz Turbo, 270W
Intel® Xeon® Platinum 8452Y, 67.5MB cache, 36 cores, 72 threads, 2.0GHz to 3.2GHz Turbo, 300W
Intel® Xeon® Platinum 8460Y+, 105MB cache, 40 cores, 80 threads, 2.0GHz to 3.7GHz Turbo, 300W
Intel® Xeon® Platinum 8462Y+, 60MB cache, 32 cores, 64 threads, 2.8GHz to 4.1GHz Turbo, 300W
Intel® Xeon® Platinum 8468, 105MB cache, 48 cores, 96 threads, 2.1GHz to 3.8GHz Turbo, 350W
Intel® Xeon® Platinum 8470, 105MB cache, 52 cores, 104 threads, 2.0GHz to 3.8GHz Turbo, 350W
Intel® Xeon® Platinum 8480+, 105MB cache, 56 cores, 112 threads, 2.0GHz to 3.8GHz Turbo, 350W |
OPERATING SYSTEM |
Windows 11 for Workstations
Ubuntu® 22.04, 64-bit
Red Hat® Linux® 8.6 Enterprise WS |
MEMORY OPTIONS |
16GB, 1 x 16GB, DDR5, 5600MT/s ECC
32GB, 1 x 32GB, DDR5, 5600MT/s ECC
32GB, 2 x 16GB, DDR5, 5600MT/s ECC
64GB, 1 x 64GB, DDR5, 5600MT/s ECC
64GB, 2 x 32GB, DDR5, 5600MT/s ECC
64GB, 4 x 16GB, DDR5, 5600MT/s ECC
96GB, 6 x 16GB, DDR5, 5600MT/s ECC
128GB, 1 x 128GB, DDR5, 5600MT/s ECC
128GB, 2 x 64GB, DDR5, 5600MT/s ECC
128GB, 4 x 32GB, DDR5, 5600MT/s ECC
128GB, 8 x 16GB, DDR5, 5600MT/s ECC
192GB, 6 x 32GB, DDR5, 5600MT/s ECC
192GB, 12 x 16GB, DDR5, 5600MT/s ECC
256GB, 1 x 256GB, DDR5, 5600MT/s, ECC
256GB, 2 x 128GB, DDR5, 5600MT/s,ECC
256GB, 4 x 64GB, DDR5, 5600MT/s ECC
256GB, 8 x 32GB, DDR5, 5600MT/s ECC
256GB, 16 x 16GB, DDR5, 5600MT/s ECC
384GB, 6 x 64GB, DDR5, 5600MT/s ECC
384GB, 12 x 32GB, DDR5, 5600MT/s ECC
384GB, 24 x 16GB, DDR5, 5600MT/s ECC
512GB, 2 x 256GB, DDR5, 5600MT/s, ECC
512GB, 4 x 128GB, DDR5, 5600MT/s,ECC
512GB, 8 x 64GB, DDR5, 5600MT/s ECC
512GB, 16 x 32GB, DDR5, 5600MT/s ECC
512GB, 32 x 16GB, DDR5, 5600MT/s ECC
768GB, 6 x 128GB, DDR5, 5600MT/s ECC
768GB, 12 x 64GB, DDR5, 5600MT/s ECC
768GB, 24 x 32GB, DDR5, 5600MT/s ECC
1 TB 4x 256GB, DDR5, 5600MT/s,ECC
1 TB, 8 x 128GB, DDR5, 5600MT/s,ECC
1 TB, 16 x 64GB, DDR5, 5600MT/s ECC
1 TB, 32 x 32GB, DDR5, 5600MT/s ECC
1.5 TB, 6 x 256GB, DDR5, 5600MT/s, ECC
1.5 TB, 12 x 128GB, DDR5, 5600MT/s ECC
1.5 TB, 24 x 64GB, DDR5, 5600MT/s ECC
2 TB 8 x 256GB, DDR5, 5600MT/s ECC
2 TB 16 x 128GB, DDR5, 5600MT/s ECC
2 TB, 32 x 64GB, DDR5, 5600MT/s ECC
3 TB, 12 x 256GB, DDR5, 5600MT/s,ECC
3 TB, 24 x 128GB, DDR5, 5600MT/s ECC
4 TB, 16 x 256GB, DDR5, 5600MT/s ECC
4 TB, 32 x 128GB, DDR5, 5600MT/s ECC
6 TB, 24 x 256GB, DDR5, 5600MT/s ECC
8 TB, 32 x 256GB, DDR5, 5600MT/s ECC |
GRAPHICS |
Up to 2x Double wide graphics cards in PCIe Gen 5 slots – requires dual CPU system with 1400/2400W PSU
NVIDIA:
NVIDIA® RTX™ A800 40GB GDDR6 - no display output - requires T1000 for display
NVIDIA® RTX™ 6000 Ada, 48 GB GDDR6
NVIDIA® RTX™ A6000, 48 GB GDDR6
NVIDIA® RTX™ A5500, 24 GB GDDR6
NVIDIA® RTX™ 5000 Ada, 32 GB GDDR6
NVIDIA® RTX™ 4500 Ada, 24 GB GDDR6
NVIDIA® RTX™ A4500, 20 GB GDDR6
NVIDIA® RTX™ 4000 Ada, 20 GB GDDR6
NVIDIA® RTX™ A4000, 16GB GDDR6
NVIDIA® RTX™ A2000, 12GB GDDR6
NVIDIA® T1000 LP/FH, 8GB GDDR6
NVIDIA® T400 LP/FH, 4GB GDDR6
AMD:
AMD Radeon™ W6400 LP/FH, 4GB GDDR6 |
STORAGE OPTIONS |
Support for up to (8) 2.5” or 3.5” SATA/SAS drives,
up to 8* x M.2 NVMe PCIe SSDs
PERC H755 motherboard PCIe HW RAID controller required for SAS
drive support
M.2 NVMe PCIe SSDs
Up to 8x 4TB drives on 2x Dell Precision Ultra-Speed Drive Quad x16
PCIe cards. |
BOOT DRIVES |
Boot from Dell Ultra Speed Drive Quad or Duo PCIe card
M.2 2280, 512GB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 1TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 2TB, PCIe NVMe Gen4 x4, SSD, Class 40
M.2 2280, 4TB, PCIe NVMe Gen4 x4, SSD, Class 40 |
DATA DRIVES |
2.5-inch, 600GB, 15,000RPM, SAS, Enterprise HDD
2.5-inch, 1.2TB, 10,000RPM, SAS, Enterprise HDD
2.5-inch, 2.4TB, 10,000RPM, SAS, Enterprise HDD
3.5-inch, 2TB, 7200RPM, SATA, Enterprise HDD
3.5-inch, 4TB, 7200RPM, SATA, Enterprise HDD
3.5-inch, 8TB, 7200RPM, SATA, Enterprise HDD
3.5-inch, 12TB, 7200RPM, SATA, Enterprise HDD
2.5-inch, 1.92TB, MU, SATA, Enterprise SSD |
STORAGE CONTROLLERS |
Integrated: 2x Intel chipset 6Gb/s SATA controllers with 4 ports each (total 8) for SATA HDD/SSD. 1 port for optical drive
Intel vROC SW SATA RAID 0,1,5,10 supported across 4 SATA ports on 1st controller only. (Maximum 4 drives in RAIDset)
Optional Intel vROC Standard SW NVMe RAID 0,1,10 option (motherboard activation key) for M.2 NVMe PCIe SSDs on 1st Dell
Ultra-Speed Drive Quad x16 or Duo x8 card (0,1).
Optional Intel vROC Premium SW NVMe RAID 0,1,5,10 option (motherboard activation key) for M.2 NVMe PCIe SSDs on 1st Dell
Ultra-Speed Drive Quad x16 or Duo x8 card (0,1).
Optional PERC H755P SATA/SAS Motherboard Hardware RAID
PCIe controller with 8GB cache (battery backup), RAID 0/1/5/10 (no JBOD with SATA drives) |
PRODUCTIVITY SOFTWARE |
Microsoft Office Home and Business Commercial
Microsoft Office 2021 Professional Commercial
Dell Optimizer for Precision |
SECURITY SOFTWARE |
McAfee® Small Business Security 30-day free trial
McAfee® Small Business Security 12-month subscription
McAfee® Small Business Security 36-month subscription
Dell Encryption Personal
Dell Encryption Enterprise |
ADD-IN CARDS |
Dell Precision Ultra-Speed Drive Quad (x16) and Duo (x8) low profile
PCIe cards support M.2 NVMe drives with active cooling up to 2 and 4 NVMe drives respectively
Dual display (full height and low profile) PCoIP remote workstation PCIe cards
Quad display (full height) PCoIP remote workstation PCIe cards
Serial port (full height, low profile) PCIe card - single port |
SECURITY OPTIONS |
Trusted Platform Module (TPM 2.0); Setup/BIOS Password, I/O
Interface Security, lockable top cover and lockable front bezel,
Dell Encryption Enterprise |
PORTS SLOTS AND CHASSIS |
Front Ports:
iDRAC Direct port (1x Micro USB 2.0)
USB 2.0 port
VGA Port intended for IDRAC use
Rear Ports:
USB 2.0 port
USB 3.0 Gen1 port
iDRAC Enterprise Dedicated Network connector
VGA port intended for IDRAC use
(2) RJ45 Ethernet ports 1GbE LOM standard and one of three OCP3 NIC cards options in dedicated slot)
(4) RJ45 Ethernet ports 1GbE (OCP3 card option)
(4) RJ45 Ethernet ports 10GbE (OCP3 card option)
(4) 10/25GbE SFP28 ports (OCP3 card option)
Slots:
7 Slots in riser cards with Dual CPUs
Single CPU has 1x Gen 4 x16 (FH/FL) slot, 1x Gen 5 x16 (FH/FL) slot, 1x Gen 4 x16 low profile (FL) slot (Reserved primarily for NVMe
boot with Dell Ultra-Speed Duo x8 LP PCIe card
Dual CPU has above slots plus 1x Gen 5 x16 double width slot, 2x Gen 4 x8 FH/HL slots, 1 Gen 4 x16 low profile (FL) slot
Up to 2x dual or single width graphics cards with dual CPUs.
|
OPTICAL DRIVE |
8x DVD-ROM 9.5mm optical drive
8x DVD+/-RW 9.5mm optical drive |
CHASSIS |
U.S.
Height: 3.39in
Width (front): 18.98in.
Width (rear): 17.08in.
Depth with bezel: 30.40in.
Weight:
Maximum: 65.36lbs.
Minimum: 46.25lbs.
Rest of the world
Height: 86.8mm
Width (front): 482mm
Width (rear): 434mm
Depth with bezel: 772.13mm
Weight:
Maximum: 29.64kg
Minimum: 20.98kg
|
POWER SUPPLIES |
One or two redundant, hot pluggable 800W (Platinum), 1100W (Titanium) and 1400W (120V) / 2400W (240V) (Platinum)
power supplies. |
NETWORK CARDS |
Entry: Broadcom 5720 Dual Port 2x 1GbE LOM default or OCP3 NIC options
OCP 3.0 NIC Options – consume OCP 3.0 NIC slot:
Intel i350 Quad Port 1GbE BASE-T, OCP NIC 3.0
Intel X710-T4L Quad Port 10GbE BASE-T, OCP NIC 3.0
Intel E810-XXVDA4 Quad Port 10/25GbE SFP28 Adapter, OCP NIC 3.0
Dedicated Broadcom® BCM54210 Ethernet LAN 10/100/1000 for iDRAC9 controller use with System Management tool suite |
