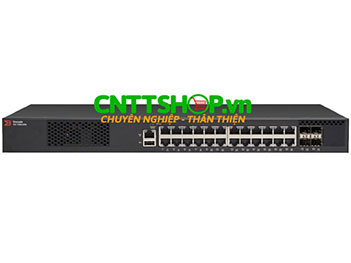

ICX7250-24G Ruckus ICX 7250 Switch, 24×10/100/1000 ports, 4×1 GbE SFP uplink
Ruckus ICX7250-24G ICX 7250 Switch, 24×10/100/1000 ports, 4×1 GbE SFP uplink ports (non-upgradable), Layer 2 only, front-toback airflow, no EPS connector
Mã sản phẩm:
ICX7250-24G
Tình trạng:
Còn hàng
Check Giá List
- Danh mục sản phẩm Ruckus ICX 7250
- Scenario
- Switch Type
- Số Cổng
-
Routing/Switching
- Layer 2
- Downlink Ports
- Uplink Ports
- Management
- Configurations
- Features
Ruckus ICX7250-24G ICX 7250 Switch, 24×10/100/1000 ports, 4×1 GbE SFP uplink
Ruckus Part Number : ICX7250-24G
List Price : $2,000
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ
Switch Ruckus ICX7250-24G dễ dàng triển khai, quản lý và tích hợp vào cả mạng mới và mạng hiện có. Thiết bị mạng Ruckus ICX7250-24G dễ dàng mở rộng khi nhu cầu tăng lên và các công nghệ mới xuất hiện.
| View Datasheet ICX7250-24G |
Switch Ruckus ICX7250-24G cung cấp khả năng tương tác liền mạch với các sản phẩm không dây Ruckus để cung cấp truy cập mạng không dây và có dây thống nhất, mang lại hiệu suất, tính linh hoạt và khả năng mở rộng cần thiết cho việc triển khai truy cập của doanh nghiệp.
Thông số kỹ thuật Switch Ruckus ICX7250-24G
| Performance and Scalability | |
| Switching capacity (data rate, full duplex) | 128 Gbps |
| Forwarding capacity (data rate, full duplex) | 96 Mpps |
| Fixed ports: 10/100/1000 Mbps RJ-45 (full duplex, only) | 24 |
| Fixed ports: 100/1000 Mbps SFP | 4 |
| Campus Fabric | Fabric Port Extender (PE) |
| Power | |
| Power inlet (AC) | C14 |
| Input voltage/frequency | AC: 100 to 240 VAC @ 50 to 60 Hz |
| Maximum current draw (at 100 VAC, one power supply) | 1.69 Amp |
| Power supply rated maximum (AC) | 135 W |
| PoE power budget (AC) (internal AC power supply only) | N/A |
| Switch heat dissipation (25°C) Idle (no PoE load) 10% traffic (full PoE load) 100% traffic (full PoE load) |
42.6 W 44.4 W |
| Airflow |
Front-to-back |
| Switch heat dissipation (25°C)3 Idle (no PoE load) 10% traffic2 (full PoE load) 100% traffic2 (full PoE load) |
114.6 BTU/hour |
| ENVIRONMENT | |
| Net Weight (Kg) | 3.58 |
| Dimensions (mm) | 440 mm (17.323 in.), W×280 mm (11.02 in.), D×43.7 mm (1.720 in.), H — 1U |
| Acoustics (25°C, min fan speed) | 40 dB |
| MTBF (25°C) | 767,718 |
| SPECIFICATIONS | |
| Connector options | • 10/100/1000 ports: RJ-45 • 1 GbE SFP ports • Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 • Console management: Mini-USB serial port (Mini-B plug) • File transfer: USB port (Standard-A plug) |
| DRAM | 1 GB |
| NVRAM (Flash) | 1 GB |
| Packet buffer size | 2 MB |
| Maximum MAC addresses | 16,384 |
| Maximum VLANs Maximum PVLANs |
• 4,095 • 32 |
| Maximum STP (spanning trees instances) | 254 |
| Maximum VEs | 255 |
| Maximum routes (in hardware) | • 12,000 (IPv4) • 2,048 (IPv6) • 7000 (Next Hop Addresses) |
| Trunking | • Maximum ports per trunk: 16 • Maximum trunk groups: 128 |
| Maximum jumbo frame size | 9,216 bytes |
| Average latency | 1.5 µs |
| QoS priority queues | 8 per port |
| Multicast groups | • 8,192 (Layer 2) |
| FEATURE SETS | |
| Layer 2 feature set | • 802.1s Multiple Spanning Tree • 802.1x Authentication • Auto MDI/MDIX • BPDU Guard, Root Guard • Dual-Mode VLANs • MAC-based VLANs, Dynamic MAC-based VLAN activation • Dynamic VLAN Assignment • Dynamic Voice VLAN Assignment • Fast Port Span • GVRP: GARP VLAN Registration Protocol • IGMP Snooping (v1/v2/v3) • IGMP Proxy for Static Groups • IGMP v2/v3 Fast Leave • IGMP Tracking • Inter-Packet Gap (IPG) adjustment • Link Fault Signaling (LFS) • MAC-Address Filtering • MAC Learning Disable • MLD Snooping (v1/v2) • Multi-device Authentication • Per-VLAN Spanning Tree (PVST/PVST+/PVRST) • Mirroring—Port-based, ACL-based, MAC Filter-based, and VLAN-based • PIM-SM v2 Snooping • Port Loop Detection • Private VLAN • Remote Fault Notification (RFN) • Single-instance Spanning Tree • Trunk Groups (static, LACP) • Uni-Directional Link Detection (UDLD) • Metro-Ring Protocol MRP (v1, v2) • Virtual Switch Redundancy Protocol (VSRP) • Topology Groups • Q-in-Q and selective Q-in-Q • VLAN Mapping |
| Quality of Service (QoS) | • ACL Mapping and Marking of ToS/DSCP • ACL Mapping and Marking of 802.1p • ACL Mapping to Priority Queue • Classifying and Limiting Flows Based on TCP Flags • DiffServ Support • Honoring DSCP and 802.1p • MAC Address Mapping to Priority Queue • Priority Queue Management using Weighted Round Robin (WRR), Strict Priority (SP), and a combination of WRR and SP • Priority Flow Control |
| Traffic management | • ACL-based inbound rate limiting and traffic policies • Broadcast, multicast, and unknown unicast rate limiting • Inbound rate limiting per port • Outbound rate limiting per port and per queue |
| Security | • 802.1X Accounting • MAC Authentication • Flexible authentication • Web authentication • DHCP snooping • Dynamic ARP inspection • ND Inspection (Neighbor Discovery) • Bi-level Access Mode (Standard and EXEC Level) • EAP pass-through support • IEEE 802.1X username export in sFlow • Protection against Denial of Service (DoS) attacks • Authentication, Authorization, and Accounting (AAA) • MAC Address Locking; MAC Port Security • Advanced Encryption Standard (AES) with SSHv2 • RADIUS/TACACS/TACACS+ • Secure Copy (SCP) • Secure Shell (SSHv2) • Protected Ports • Username/Password • Change of Authorization (CoA) RFC 5176 • RADSEC (RFC 6614) • Encrypted Syslog (RFC 5425) |
| SDN features | • Support for OpenFlow v1.0 and v1.3 • OpenFlow support with true hybrid port mode |
| STANDARD COMPLIANCE | |
| IEEE standards compliance | • 802.1AB LLDP/LLDP-MED • 802.1D-2004 MAC Bridging • 802.1p Mapping to Priority Queue • 802.1s Multiple Spanning Tree • 802.1w Rapid Reconfiguration of Spanning Tree (RSTP) • 802.1x Port-based Network Access Control (PNAC) • 802.3 Carrier Sense Multiple Access/Collision Detection (CSMA/CD) • 802.3ab 1000Base-T • 802.3 10Base-T • 802.3ad Link Aggregation (Dynamic and Static) • 802.1 AX-2008 Link Aggregation • 802.3ae 10 GbE • 802.3af Power over Ethernet • 802.3at Power over Ethernet Plus • 802.3u 100Base-TX • 802.3x Flow Control • 802.3z 1000Base-SX/LX • 802.3 MAU MIB (RFC 2239) • 802.3az-2010 – Energy Efficient Ethernet (EEE) • 802.1Q VLAN Tagging • 802.1BR Bridge Port Extension |
| ENVIRONMENT | |
| Temperature | Operating temperature: -5°C to 50°C/23°F to 122°F Storage temperature: −25°C to 70°C/−13°F to 158°F |
| Humidity | Operating relative humidity: 5% to 95% at 50°C, non-condensing Non-operating relative humidity: 0% to 95% at 70°C, non-condensing |
| Altitude | Operating altitude: 10,000 ft (3,000 m) maximum Storage altitude: 39,000 ft (12,000 m) maximum |
| COMPLIANCE/CERTIFICATION | |
| Electromagnetic emissions | FCC Class A (Part 15); EN 55022/CISPR-22 Class A; VCCI Class A; ICES-003 Electromagnetic Emission; AS/NZS 55022; EN 61000-3-2 Power Line Harmonics; EN 61000-3-3 Voltage Fluctuation and Flicker; EN 61000-6-3 Emission Standard (supersedes: EN 50081-1) |
| Safety | CAN/CSA-C22.2 NO. 60950-1-07; UL 60950-1 Second Edition; IEC 60950-1 Second Edition; EN 60950-1:2006 Safety of Information Technology Equipment; EN 60825-1 Safety of Laser Products—Part 1: Equipment Classification, Requirements and User’s Guide; EN 60825-2 Safety of Laser Products—Part 2: Safety of Optical Fibre Communication Systems |
| Immunity | EN 61000-6-1 Generic Immunity and Susceptibility (supersedes EN 50082-1); EN 55024 Immunity Characteristics (supersedes EN 61000-4-2 ESD); EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field; EN 61000-4-4 Electrical Fast Transient; EN 61000-4-5 Surge; EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-11 Voltage Dips and Sags |
| Environmental regulatory compliance | RoHS-compliant (6 of 6); WEEE-compliant |
| Vibration | IEC 68-2-36, IEC 68-2-6 |
| Shock and drop | IEC 68-2-27, IEC 68-2-32 |
Module quang sử dụng cho Switch Ruckus ICX7250-24G
| 1 GbE Fiber Optics | |
| E1MG-SX-OM | 1000BASE-SX SFP optic, MMF, LC connector, optical monitoring capable |
| E1MG-SX-OM-T | 1000BASE-SX SFP optic, MMF, LC connector, optical monitoring capable, industrial temperature (-40°C to 85°C) |
| E1MG-SX-A | 1000BASE-SX SFP Optic, MMF, (LC), TAA compliant |
| E1MG-LX-OM | 1000BASE-LX SFP optic, SMF, LC connector, optical monitoring capable |
| E1MG-LX-OM-T | 1000BASE-LX SFP optic, SMF, LC connector, optical monitoring capable, industrial temperature (-40°C to 85°C) |
| E1MG-LX-A | 1000BASE-LX SFP Optic, SMF, LC connector, TAA compliant |
| E1MG-LHA-OM-T | 1000BASE-LHA SFP optic, SMF, LC connector, optical monitoring capable, industrial temperature (-40°C to 85°C) |
| E1MG-BXD | 1000BASE-BXD SFP optic SMF, transmits at 1490nm and receives at 1310nm, LC connector, single strand SMF fiber. This optic should only be connected to an E1MG-BXU at the far end. |
| E1MG-BXU | 1000BASE-BXU SFP optic SMF, transmits at 1310nm and receives at 1490nm, LC connector, single strand SMF fiber. This optic should only be connected to an E1MG-BXD at the far end. |
| E1MG-TX | 1000BASE-TX SFP Copper, RJ-45 connector |
| E1MG-TX-A | 1000BASE-TX SFP Copper, RJ-45, TAA compliant |
| 1G-SFP-TWX-0101 | 1GbE Direct Attach SFP to SFP active copper cable, 1m |
| 1G-SFP-TWX-0501 | 1GbE Direct Attach SFP to SFP active copper cable, 5m |
Option cho Switch Ruckus ICX7250-24G
| ICX7000-RMK | FRU, rack mount kit, two-post, Ruckus ICX 7250/7450/7750 |
| XBR-R000295 | FRU, rack mount kit, four-post, 24 in. to 32 in. depth rack |
