Juniper Part Number : EX9251-8X4C-DC
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ

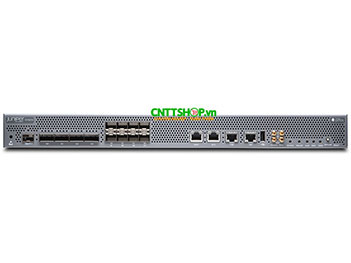

Thiết bị chuyển mạch EX9251-8X4C-DC là thiết bị core với kích thước nhỏ gọn, có thể lập trình và mở rộng cho môi trường doanh nghiệp, giảm chi phí và độ phức tạp. Juniper EX9251-8X4C-DC đơn giản hóa đáng kể các kiến trúc trung tâm dữ liệu với Junos Fusion Enterprise và Ethernet VPN, tạo đường dẫn core 100GbE.
View Datasheet EX9251-8X4C-DC |
EX9251-8X4C-DC hỗ trợ các ứng dụng lớp 2 hoặc lớp 3 bằng cách kết hợp các công nghệ Ethernet VPN (EVPN) và LAN mở rộng ảo (VXLAN). Sử dụng các công nghệ mở này cho phép doanh nghiệp tạo ra một mạng kết nối chặt chẽ, xuyên suốt từ khắp các địa điểm phân tán nhưng vẫn có thể phân khúc lưu lượng.
Features at a Glance | |
Architecture | Single data, control, and management plane |
Power |
• -40 to -72 V DC (1+1 redundancy)
• Autosensing 120/240 V AC (1+1 redundancy)
• Maximum power draw: 312 W (DC), 300 W (AC)
|
Cooling | Internally redundant fan tray with front-to-back airflow |
Routing Engine (RE) |
•Integrated single RE
•1.6 GHz, 8 core Intel Xeon processor
•Up to 32 gigabytes DRAM
•Solid-state drive (SSD) (up to 100 GB)
•Console, auxiliary serial, and Ethernet management ports
•USB storage interface
|
Operating system | Operating system |
High availability |
• Secure, modular architecture that isolates faults
• Separate control and forwarding planes that enhance scalability and resiliency
|
Layer 2 features |
•Up to 1 million MAC addresses
•Up to 512,000 Address Resolution Protocol (ARP) entries with mid-scale (ML) license (256,000 entries without ML license)
•Up to 512,000 forwarding information base (FIB) entries with ML license (256,000 entries without ML license)
•Jumbo frames (9192 bytes maximum)
•32,000 VLANs
•VLAN Registration Protocol
•802.3ad—Link Aggregation Control Protocol (LACP)
•802.1D—Spanning Tree Protocol (STP)
•802.1w—Rapid Spanning Tree Protocol (RSTP)
•802.1s—Multiple Spanning Tree Protocol (MSTP)
•VLAN Spanning Tree Protocol (VSTP)
•Layer 2 Protocol Tunneling (L2PT)
|
Layer 3 features |
•1 million IPv4 routing information base (RIB)
•1 million IPv6 RIB
•Static routing
•RIP v1/v2
•OSPF v1/v2
•OSPF v3
•Filter-based forwarding
•Virtual Router Redundancy Protocol (VRRP) IPv6 Bidirectional Forwarding Detection (BFD)
•Virtual routers
•BGP (Advanced Feature license)
•IS-IS (Advanced Feature license)
|
Hardware tunneling |
•GRE tunnels
•MPLS capabilities (Advanced Feature License)
•VPLS
•BGP/MPLS VPNs
•Ethernet VPNs
|
Multicast |
•Up to 256,000 IPv4 multicast routes
•Up to 256,000 IPv6 multicast routes
•Internet Group Management Protocol (IGMP) v1/v2/v3
•IGMP snooping
•Multicast Listener Discovery (MLD) v1/v2
•MLD snooping
•Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM
•Multicast Source Discovery Protocol (MSDP)
|
Firewall filters |
Ingress and egress L2-L4 access control lists (ACLs):
•Port ACLs
•VLAN ACLs
•Router ACLs
•Control plane denial-of-service (DoS) protection
|
Quality of service (QoS) |
•16,000 policers per chassis
•8 egress queues per port
•Weighted random early detection (WRED) scheduling
•Weighted round-robin (WRR) queuing
•Strict priority queuing
|
Virtualization |
•Integration with Juniper Contrail Platform •Integration with VMware NSX vSphere
•Network virtualization protocols such as
•VXLAN VXLAN L2 and L3 gateway
•EVPN and VPLS for DCI
|
Management |
•Junos OS CLI
•Junos XML management protocol
•SNMP v1/v2/v3
•RADIUS
•TACACS+
•Extensive MIB support
•Firewall-based port mirroring
•Link Layer Discovery Protocol (LLDP)
•Advanced Insight Solutions (AIS)
|
Maximum Power Consumption | |
100-120 V AC Input | 300 W |
200-240 V AC Input | 300 W |
-40 to -72 V DC Input | 312 W |
System Capacity | |
Maximum throughput bandwidth/slot |
•800 Gbps
•400 Gbps full duplex
|
Maximum 10GbE port density (wire speed) | 24 |
Maximum 40GbE port density (wire speed) | 4 |
Maximum 100GbE port density (wire speed) | 4 |
Chassis Specifications | |
Dimensions (W x H x D) | 17.6 x 1.75 x 18.7 in. (44.7 x 4.45 x 47.5 cm) |
Rack units | 1U |
Weight (fully loaded) | 23.15 lb (10.5 kg) |
Total number of slots | N/A |
Slots available for line cards | N/A |
Feature Specifications IEEE Compliance |
• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
• IEEE 802.1D-2004: Spanning Tree Protocol (STP) • IEEE 802.1p: Class-of-service (CoS) prioritization • IEEE 802.1Q: Virtual Bridged Local Area Networks • IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.3: 10BASE-T
• IEEE 802.3u: 100BASE-T
• IEEE 802.3ab: 1000BASE-T
• IEEE 802.3z: 1000BASE-X
• IEEE 802.3ae: 10-Gigabit Ethernet
• IEEE 802.3ba: 40-Gigabit/100-Gigabit Ethernet
• IEEE 802.3ah: Operation, Administration, and Maintenance (OAM)
• IEEE 802.3ad: Link Aggregation Control Protocol (LACP)
• IEEE 802.1ae: Media Access Control Security
|
EX-SFP-10GE-SR | Small form-factor pluggable transceiver (SFP transceiver) 10GbE (SFP+ transceiver) short reach (SR) optics |
EX-SFP-10GE-LR | SFP transceiver 10GbE (SFP+ transceiver) long reach (LR) optics |
EX-SFP-10GE-LRM | SFP transceiver 10GbE (SFP+ transceiver) long reach multimode (LRM) optics |
EX-SFP-10GE-ER | SFP+ 10GBASE-ER 10GbE optics module, 1550 nm for 40 km transmission |
EX-SFP-10GE-ZR | SFP+ 10GBASE-ZR 10GbE optics, 1550 nm for 80 km transmission on single-mode fiber-optic (SMF) |
JNP-SFP-10G-BX10D | 10G BX optics over SMF,1330 nm up to 10 km |
JNP-SFP-10G-BX10U | 10G BX optics over SMF, 1270 nm up to 10 km |
EX-SFP-10GE-USR | SFP+ 10GbE ultra short reach; 850 nm; 10 m on OM1, 20 m on OM2, 100 m on OM3 multi-mode fiber-optic (MMF) |
JNP-QSFP-4X10GELR | Quad small form-factor pluggable transceiver plus (QSFP+ transceiver) 40GBase optics, up to 10 km transmission on parallel single mode (4X10GbE LR up to 10 km) |
JNP-QSFP-4X10GE-IR | QSFP+ 40GBASE-LR4 40 gigabit optics for up to 1 km transmission over parallel SMF |
JNP-QSFP-40GE-IR4 | QSFP+ 40GBASE-LR4 40 gigabit optics for up to 1 km transmission over SMF |
QFX-QSFP-40G-SR4 | QSFP+ 40GBASE-SR4 40 gigabit optics, 850 nm for up to 150 m transmission on MMF |
JNP-QSFP-40G-LR4 | QSFP+ 40GBASE-LR4 40 gigabit optics for up to 10 km transmission on SMF |
QFX-QSFP-40GESR4 | QSFP+ 40GBASE-eSR4 40 gigabit optics, 850 nm for up to 300 m transmission on MMF |
JNP-QSFP-40GE-ER4 | QSFP+ 40GBASE-ER4 40 gigabit optics, 1310 nm for up to 40 km transmission on SMF |
JNP-QSFP-40G-LX4 | QSFP+ 40GBASE-LX4 40 gigabit optics for up to 150 m transmission with OM4 over duplex MMF |
JNP-QSFP-100G-LR4 | QSFP28 100GBASE-L4 optics for up to 10 km transmission over serial SMF |
JNP-QSFP-100G-SR4 | QSFP28 100GBASE-SR4 optics for up to 100 m transmission over parallel MMF |
JNP-QSFP-100G-CWDM | QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF |
JNP-QSFP-100G-PSM4 | QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF |
EX-SFP-10GE-DAC-3M | SFP+ 10GbE direct attach copper (twinax copper cable), 3 M |
EX-SFP-10GE-DAC-1M | SFP+ 10GbE direct attach copper (twinax copper cable), 1 M |
EX-SFP-10GE-DAC-5M | SFP+ 10GbE direct attach copper (twinax copper cable) 5 m |
QFX-QSFP-DAC-1M | QSFP+ Cable Assy, 1 m, 30 AWG, passive, programmable ID |
JNP-QSFP-DAC-2M | QSFP+ 40GBASE direct attach copper Cable 2-meter |
QFX-QSFP-DAC-3M | QSFP+ Cable Assembly, 3 m, 30 AWG, passive, programmable ID |
JNP-QSFP-DAC-5M | QSFP+ 40GBase direct attach copper Cable 5-meter, passive |
EX-QSFP-40GE-DAC-50CM | QSFP+ 40GbE direct attach copper (twinax copper cable) for 50 cm transmission |
JNP-100G-DAC-1M | QSFP28 to QSFP28 Ethernet direct attach copper (twinax copper cable) 1 m |
JNP-100G-DAC-3M | QSFP28 to QSFP28 Ethernet direct attach copper (twinax copper cable) 3 m, active |
QFX-QSFP-DACBO-1M | QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 1 m |
QFX-QSFP-DACBO-3M | QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 3 m |
JNP-QSFP-DACBO-10M | QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 10 m, active |
QFX-SFP-DAC-1MA | SFP+ 10GbE direct attach copper (active twinax copper cable) 1 m |
QFX-SFP-DAC-3MA | SFP+ 10GbE direct attach copper (active twinax copper cable) 3 m |
QFX-SFP-DAC-5MA | SFP+ 10GbE direct attach copper (active twinax copper cable) 5 m |
QFX-SFP-DAC-7MA | SFP+ 10GbE direct attach copper (active twinax copper cable) 7 m |
QFX-SFP-DAC-10MA | SFP+ 10GbE direct attach copper (active twinax copper cable) 10 m |
JNP-QSFP-DAC-5MA | QSFP+ 40GBASE direct attach copper cable 5 m, active |
JNP-QSFP-DAC-7MA | QSFP+ 40GBASE direct attach copper cable 7 m, active |
JNP-QSFP-DAC-10MA | QSFP+ 40GBASE direct attach copper cable 10 m, active |
JNP-QSFP-DACBO-5MA | QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 5 m, active |
JNP-QSFP-DACBO-7MA | QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 7 m, active |
EX9251-AFL | EX9251 Advanced Feature License |
EX9251-ML | Mid-scale license to enable 512,000 FIB and ARP entries on EX9251 chassis (one required per chassis) |
