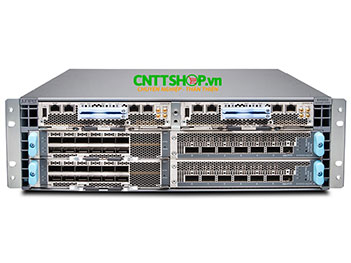

Switch Juniper EX9253-BASE-AC 3-slot EX9253-CHAS-3RU chassis.

Name: EX9253-BASE-AC
Brand: Juniper
SKU: EX9253-BASE-AC
Availability: InStock
Rating: 5 (45 reviews)

Juniper Part Number : EX9253-BASE-AC
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ

Thiết bị chuyển mạch EX9253-BASE-AC là thiết bị core với kích thước nhỏ gọn, có thể lập trình và mở rộng cho môi trường doanh nghiệp, giảm chi phí và độ phức tạp. Juniper EX9253-BASE-AC đơn giản hóa đáng kể các kiến trúc trung tâm dữ liệu với Junos Fusion Enterprise và Ethernet VPN, tạo đường dẫn core 100GbE.

View Datasheet EX9253-BASE-AC

EX9253-BASE-AC hỗ trợ các ứng dụng lớp 2 hoặc lớp 3 bằng cách kết hợp các công nghệ Ethernet VPN (EVPN) và LAN mở rộng ảo (VXLAN). Sử dụng các công nghệ mở này cho phép doanh nghiệp tạo ra một mạng kết nối chặt chẽ, xuyên suốt từ khắp các địa điểm phân tán nhưng vẫn có thể phân khúc lưu lượng.

Switch Juniper EX9253-BASE-AC 3-slot EX9253-CHAS-3RU chassis.

Thông số kỹ thuật

Features at a Glance
Architecture	Single data, control, and management plane
Power	• -40 to -72 V DC (1+1 redundancy) • Autosensing 120/240 V AC (1+1 redundancy) • Maximum power draw: 312 W (DC), 300 W (AC)
Cooling	Internally redundant fan tray with front-to-back airflow
Routing Engine (RE)	•Integrated single RE •1.6 GHz, 8 core Intel Xeon processor •Up to 32 gigabytes DRAM •Solid-state drive (SSD) (up to 100 GB) •Console, auxiliary serial, and Ethernet management ports •USB storage interface
Operating system	Operating system
High availability	• Secure, modular architecture that isolates faults • Separate control and forwarding planes that enhance scalability and resiliency
Layer 2 features	•Up to 1 million MAC addresses •Up to 512,000 Address Resolution Protocol (ARP) entries with mid-scale (ML) license (256,000 entries without ML license) •Up to 512,000 forwarding information base (FIB) entries with ML license (256,000 entries without ML license) •Jumbo frames (9192 bytes maximum) •32,000 VLANs •VLAN Registration Protocol •802.3ad—Link Aggregation Control Protocol (LACP) •802.1D—Spanning Tree Protocol (STP) •802.1w—Rapid Spanning Tree Protocol (RSTP) •802.1s—Multiple Spanning Tree Protocol (MSTP) •VLAN Spanning Tree Protocol (VSTP) •Layer 2 Protocol Tunneling (L2PT)
Layer 3 features	•1 million IPv4 routing information base (RIB) •1 million IPv6 RIB •Static routing •RIP v1/v2 •OSPF v1/v2 •OSPF v3 •Filter-based forwarding •Virtual Router Redundancy Protocol (VRRP) IPv6 Bidirectional Forwarding Detection (BFD) •Virtual routers •BGP (Advanced Feature license) •IS-IS (Advanced Feature license)
Hardware tunneling	•GRE tunnels •MPLS capabilities (Advanced Feature License) •VPLS •BGP/MPLS VPNs •Ethernet VPNs
Multicast	•Up to 256,000 IPv4 multicast routes •Up to 256,000 IPv6 multicast routes •Internet Group Management Protocol (IGMP) v1/v2/v3 •IGMP snooping •Multicast Listener Discovery (MLD) v1/v2 •MLD snooping •Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM •Multicast Source Discovery Protocol (MSDP)
Firewall filters	Ingress and egress L2-L4 access control lists (ACLs): •Port ACLs •VLAN ACLs •Router ACLs •Control plane denial-of-service (DoS) protection
Quality of service (QoS)	•16,000 policers per chassis •8 egress queues per port •Weighted random early detection (WRED) scheduling •Weighted round-robin (WRR) queuing •Strict priority queuing
Virtualization	•Integration with Juniper Contrail Platform •Integration with VMware NSX vSphere •Network virtualization protocols such as •VXLAN VXLAN L2 and L3 gateway •EVPN and VPLS for DCI
Management	•Junos OS CLI •Junos XML management protocol •SNMP v1/v2/v3 •RADIUS •TACACS+ •Extensive MIB support •Firewall-based port mirroring •Link Layer Discovery Protocol (LLDP) •Advanced Insight Solutions (AIS)
Maximum Power Consumption
100-120 V AC Input	2692 W
200-240 V AC Input	2692 W
-40 to -72 V DC Input	2692 W
System Capacity
Maximum throughput bandwidth/slot	•2.4 Tbps/slot •1.2 Tbps full duplex
Maximum 10GbE port density (wire speed)	144 (with break out cables)
Maximum 40GbE port density (wire speed)	36
Maximum 100GbE port density (wire speed)	24
Chassis Specifications
Dimensions (W x H x D)	19 x 5.217 x 30 in. (48.26 x 13.25 x 76.2 cm) Total depth includes standard cable manager measurements
Rack units	3 U
Weight (fully loaded)	120 lb (54.43 kg)
Total number of slots	3
Slots available for line cards	2
Feature Specifications IEEE Compliance	• IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) • IEEE 802.1D-2004: Spanning Tree Protocol (STP) • IEEE 802.1p: Class-of-service (CoS) prioritization • IEEE 802.1Q: Virtual Bridged Local Area Networks • IEEE 802.1s: Multiple Spanning Tree Protocol (MSTP) • IEEE 802.1w: Rapid Spanning Tree Protocol (RSTP) • IEEE 802.3: 10BASE-T • IEEE 802.3u: 100BASE-T • IEEE 802.3ab: 1000BASE-T • IEEE 802.3z: 1000BASE-X • IEEE 802.3ae: 10-Gigabit Ethernet • IEEE 802.3ba: 40-Gigabit/100-Gigabit Ethernet • IEEE 802.3ah: Operation, Administration, and Maintenance (OAM) • IEEE 802.3ad: Link Aggregation Control Protocol (LACP) • IEEE 802.1ae: Media Access Control Security

Module sử dụng cho EX9253-BASE-AC.

EX-SFP-10GE-SR	Small form-factor pluggable transceiver (SFP transceiver) 10GbE (SFP+ transceiver) short reach (SR) optics
EX-SFP-10GE-LR	SFP transceiver 10GbE (SFP+ transceiver) long reach (LR) optics
EX-SFP-10GE-LRM	SFP transceiver 10GbE (SFP+ transceiver) long reach multimode (LRM) optics
EX-SFP-10GE-ER	SFP+ 10GBASE-ER 10GbE optics module, 1550 nm for 40 km transmission
EX-SFP-10GE-ZR	SFP+ 10GBASE-ZR 10GbE optics, 1550 nm for 80 km transmission on single-mode fiber-optic (SMF)
JNP-SFP-10G-BX10D	10G BX optics over SMF,1330 nm up to 10 km
JNP-SFP-10G-BX10U	10G BX optics over SMF, 1270 nm up to 10 km
EX-SFP-10GE-USR	SFP+ 10GbE ultra short reach; 850 nm; 10 m on OM1, 20 m on OM2, 100 m on OM3 multi-mode fiber-optic (MMF)
JNP-QSFP-4X10GELR	Quad small form-factor pluggable transceiver plus (QSFP+ transceiver) 40GBase optics, up to 10 km transmission on parallel single mode (4X10GbE LR up to 10 km)
JNP-QSFP-4X10GE-IR	QSFP+ 40GBASE-LR4 40 gigabit optics for up to 1 km transmission over parallel SMF
JNP-QSFP-40GE-IR4	QSFP+ 40GBASE-LR4 40 gigabit optics for up to 1 km transmission over SMF
QFX-QSFP-40G-SR4	QSFP+ 40GBASE-SR4 40 gigabit optics, 850 nm for up to 150 m transmission on MMF
JNP-QSFP-40G-LR4	QSFP+ 40GBASE-LR4 40 gigabit optics for up to 10 km transmission on SMF
QFX-QSFP-40GESR4	QSFP+ 40GBASE-eSR4 40 gigabit optics, 850 nm for up to 300 m transmission on MMF
JNP-QSFP-40GE-ER4	QSFP+ 40GBASE-ER4 40 gigabit optics, 1310 nm for up to 40 km transmission on SMF
JNP-QSFP-40G-LX4	QSFP+ 40GBASE-LX4 40 gigabit optics for up to 150 m transmission with OM4 over duplex MMF
JNP-QSFP-100G-LR4	QSFP28 100GBASE-L4 optics for up to 10 km transmission over serial SMF
JNP-QSFP-100G-SR4	QSFP28 100GBASE-SR4 optics for up to 100 m transmission over parallel MMF
JNP-QSFP-100G-CWDM	QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF
JNP-QSFP-100G-PSM4	QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF
EX-SFP-10GE-DAC-3M	SFP+ 10GbE direct attach copper (twinax copper cable), 3 M
EX-SFP-10GE-DAC-1M	SFP+ 10GbE direct attach copper (twinax copper cable), 1 M
EX-SFP-10GE-DAC-5M	SFP+ 10GbE direct attach copper (twinax copper cable) 5 m
QFX-QSFP-DAC-1M	QSFP+ Cable Assy, 1 m, 30 AWG, passive, programmable ID
JNP-QSFP-DAC-2M	QSFP+ 40GBASE direct attach copper Cable 2-meter
QFX-QSFP-DAC-3M	QSFP+ Cable Assembly, 3 m, 30 AWG, passive, programmable ID
JNP-QSFP-DAC-5M	QSFP+ 40GBase direct attach copper Cable 5-meter, passive
EX-QSFP-40GE-DAC-50CM	QSFP+ 40GbE direct attach copper (twinax copper cable) for 50 cm transmission
JNP-100G-DAC-1M	QSFP28 to QSFP28 Ethernet direct attach copper (twinax copper cable) 1 m
JNP-100G-DAC-3M	QSFP28 to QSFP28 Ethernet direct attach copper (twinax copper cable) 3 m, active
QFX-QSFP-DACBO-1M	QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 1 m
QFX-QSFP-DACBO-3M	QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 3 m
JNP-QSFP-DACBO-10M	QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 10 m, active
QFX-SFP-DAC-1MA	SFP+ 10GbE direct attach copper (active twinax copper cable) 1 m
QFX-SFP-DAC-3MA	SFP+ 10GbE direct attach copper (active twinax copper cable) 3 m
QFX-SFP-DAC-5MA	SFP+ 10GbE direct attach copper (active twinax copper cable) 5 m
QFX-SFP-DAC-7MA	SFP+ 10GbE direct attach copper (active twinax copper cable) 7 m
QFX-SFP-DAC-10MA	SFP+ 10GbE direct attach copper (active twinax copper cable) 10 m
JNP-QSFP-DAC-5MA	QSFP+ 40GBASE direct attach copper cable 5 m, active
JNP-QSFP-DAC-7MA	QSFP+ 40GBASE direct attach copper cable 7 m, active
JNP-QSFP-DAC-10MA	QSFP+ 40GBASE direct attach copper cable 10 m, active
JNP-QSFP-DACBO-5MA	QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 5 m, active
JNP-QSFP-DACBO-7MA	QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 7 m, active

Software Feature Licenses

EX9253-AFL	EX9253 Advanced Feature License
EX9253-ML	Mid-scale license to enable 512,000 FIB and ARP entries on EX9253 chassis (one required per chassis)
EX9253-SFL	Security feature license for EX9250 to enable MACsec on EX9253-6Q12C-M
