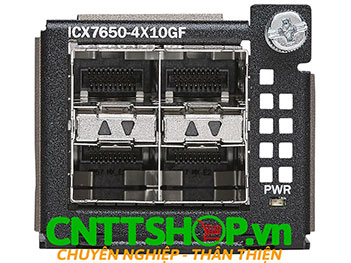

Ruckus ICX7650-4X10GF ICX 7650 4 Ports 1/10GbE SFP+ Module
Ruckus Part Number : ICX7650-4X10GF
List Price : $1,000
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ
Thông số kỹ thuật Ruckus ICX7650-4X10GF Module
| General Information | |
| Product Name | Icx 7650 4 Port 1/10GbE SFP+ Module |
| Manufacturer Part Number | ICX7650-4X10GF |
| Product Type | Expansion Module |
| I/O Expansions | |
| Number of Total Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Miscellaneous | |
| Compatibility | Brocade ICX 7650 Switch |
| Other Information | |
| Maximum Data Transfer Rate | 10 Gbit/s |
| Stock Details | |
| Manufacturer | Brocade Communications |
| Manuf Part# | ICX7650-4X10GF |
Module quang sử dụng cho Ruckus ICX7650-4X10GF Module
| 1 GbE Fiber Optics | |||
| Data link | Stacking links | ||
| E1MG-SX-OM | 1000BASE-SX SFP optic, MMF, LC connector, optical monitoring capable | √ | x |
| E1MG-SX-OM-T | 1000BASE-SX SFP optic, MMF, LC connector, optical monitoring capable, industrial temperature (-40°C to 85°C) | √ | x |
| E1MG-SX-A | 1000BASE-SX SFP Optic, MMF, (LC), TAA compliant | √ | x |
| E1MG-LX-OM | 1000BASE-LX SFP optic, SMF, LC connector, optical monitoring capable | √ | x |
| E1MG-LX-OM-T | 1000BASE-LX SFP optic, SMF, LC connector, optical monitoring capable, industrial temperature (-40°C to 85°C) | √ | x |
| E1MG-LX-A | 1000BASE-LX SFP Optic, SMF, LC connector, TAA compliant | √ | x |
| E1MG-LHA-OM-T | 1000BASE-LHA SFP optic, SMF, LC connector, optical monitoring capable, industrial temperature (-40°C to 85°C) | √ | x |
| E1MG-BXD | 1000BASE-BXD SFP optic SMF, transmits at 1490nm and receives at 1310nm, LC connector, single strand SMF fiber. This optic should only be connected to an E1MG-BXU at the far end. | √ | x |
| E1MG-BXU | 1000BASE-BXU SFP optic SMF, transmits at 1310nm and receives at 1490nm, LC connector, single strand SMF fiber. This optic should only be connected to an E1MG-BXD at the far end. | √ | x |
| E1MG-TX | 1000BASE-TX SFP Copper, RJ-45 connector | √ | x |
| E1MG-TX-A | 1000BASE-TX SFP Copper, RJ-45, TAA compliant | √ | x |
| 1G-SFP-TWX-0101 | 1GbE Direct Attach SFP to SFP active copper cable, 1m | √ | x |
| 1G-SFP-TWX-0501 | 1GbE Direct Attach SFP to SFP active copper cable, 5m | √ | x |
| 10 GbE Fiber Optics | |||
| 10G-SFPP-USR | 10GBASE-USR, SFP+ optic (LC), target range 100m over MMF | √ | √ |
| 10G-SFPP-USR-SA | 10GBASE-USR, SFP+ Optic (LC), Range 100m MMF, standard temperature (0°C to 70°C), TAA compliant | √ | √ |
| 10G-SFPP-SR | 10GBASE-SR, SFP+ optic (LC), target range 300m over MMF | √ | √ |
| 10G-SFPP-SR-SA | 10GBASE-SR, SFP+ optic (LC), target range 300m over MMF, standard temperature (0°C to 70°C), TAA compliant | √ | √ |
| 10G-SFPP-SR-S | 10GBASE-SR, SFPP MMF LC connector, standard temperature (0°C to 70°C) | √ | √ |
| 10G-SFPP-LR | 10GBASE-LR, SFP+ optic (LC), for up to 10Km over SMF | √ | √ |
| 10G-SFPP-LR-SA | 10GBASE-LR, SFP+ optic (LC), for up to 10Km over SMF, standard temperature (0°C to 70°C), TAA compliant | √ | √ |
| 10G-SFPP-LR-S | 10GBASE-LR, SFPP SMF (LC), for up to 10Km over SMF, standard temperature (0°C to 70°C) | √ | √ |
| 10G-SFPP-ER | 10GBASE-ER SFP+ optic (LC), for up to 40Km over SMF | √ | x |
| 10G-SFPP-ZR | 10GBASE-ZR SFP+ optic (LC), for up to 80Km over SMF | √ | x |
| 10G-SFPP-LRM | 10GBASE-LRM SFP+ optic (LC), for up to 220m over MMF | √ | x |
| 10G-SFPP-BXD-S | 10GBASE-LR SFP+ Optic (LC) bidirectional downstream, standard temperature (0°C to 70°C) | √ | √ |
| 10G-SFPP-BXU-S | 10GBASE-LR SFP+ Optic (LC) bidirectional upstream, standard temperature (0°C to 70°C) | √ | √ |
| 10G-SFPP-TWX-0101 | 10GbE Direct Attach SFP+ to SFP+ Active copper cable, 1m | √ | √ |
| 10G-SFPP-TWX-0108 | 10GbE Direct Attach SFP+ to SFP+ Active copper cable, 1m, 8-pack | √ | √ |
| 10G-SFPP-TWX-0301 | 10GbE Direct Attach SFP+ to SFP+ Active copper cable, 3m | √ | √ |
| 10G-SFPP-TWX-0308 | 10GbE Direct Attach SFP+ to SFP+ Active copper cable, 3m, 8-pack | √ | √ |
| 10G-SFPP-TWX-0501 | 10GbE Direct Attach SFP+ to SFP+ Active copper cable, 5m | √ | √ |
| 10G-SFPP-TWX-0508 | 10GbE Direct Attach SFP+ to SFP+ Active copper cable, 5m, 8-pack | √ | √ |
| 10G-SFPP-TWX-P-0101 | 10GbE Direct Attach SFP+ to SFP+ Passive copper cable, 1m | √ | √ |
| 10G-SFPP-TWX-P-0108 | 10GbE Direct Attach SFP+ to SFP+ Passive copper cable, 1m, 8-pack | √ | √ |
| 10G-SFPP-TWX-P-0301 | 10GbE Direct Attach SFP+ to SFP+ Passive copper cable, 3m | √ | √ |
| 10G-SFPP-TWX-P-0308 | 10GbE Direct Attach SFP+ to SFP+ Passive copper cable, 3m, 8-pack | √ | √ |
| 10G-SFPP-TWX-P-0501 | 10GbE Direct Attach SFP+ to SFP+ Passive copper cable, 5m | √ | √ |
| 10G-SFPP-TWX-P-0508 | 10GbE Direct Attach SFP+ to SFP+ Passive copper cable, 5m, 8-pack | √ | √ |
| 10GE-SFPP-AOC-0701 | 10GbE Direct Attach SFP+ to SFP+ Active Optical Cable, 7m | √ | √ |
| 10GE-SFPP-AOC-1001 | 10GbE Direct Attach SFP+ to SFP+ Active Optical Cable, 10m | √ | √ |
