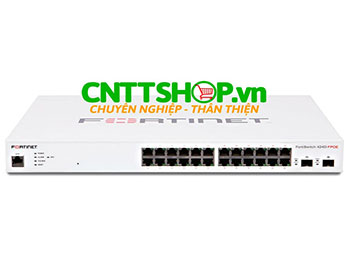

FS-424D-FPOE Fortinet FortiSwitch 424D-FPOE 24 Ports GE PoE+, 2x 10GE SFP+

Phân phối Fortinet FS-424D-FPOE FortiSwitch 424D-FPOE FortiGate switch Layer 2 và layer 3 controller compatible switch with 24 GE RJ45 Ports PoE+ 370W, 2x 10 GE SFP+ ports, chính hãng giá tốt, FortiSwitch FS-424D-FPOE datasheet
✓ Mã sản phẩm: FS-424D-FPOE
✓ Tình trạng: Còn Hàng
Check Giá List
Phụ kiện dùng cho Fortinet

Cam Kết Bán Hàng

✓ Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

✓ Giá Cạnh Tranh Rẻ Nhất Thị Trường

✓ Ưu Đãi Lớn Cho Đại Lý Và Dự Án

✓ Bảo Hành, Đổi Trả Nhanh Chóng

✓ Giao Hàng Trên Toàn Quốc

✓ Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

✓ Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

CNTTShop.vn - 19 năm Uy tín cung cấp Thiết bị mạng & Dịch vụ Mạng trên toàn quốc.

NTT03, Thống Nhất Complex, Thanh Xuân, Hà Nội. Số 31B, Đường 1, Phường An Phú, Quận 2 (Thủ Đức), TP HCM.

FS-424D-FPOE Fortinet FortiSwitch 424D-FPOE 24 Ports GE RJ45 PoE+ 370W, 2x 10 GE SFP+ ports

Fortinet SKU        : FS-424D-FPOE
Fortinet Product  : FortiSwitch 424D-FPOE
List Price              : $2000.00
Bảo hành             : 12 tháng
Made In               : China
Stock                    : Liên hệ

Mô tả tổng quan

FortiSwitch FS-424D-FPOE cung cấp các giải pháp kết nối mạng an toàn, đơn giản, khả năng mở rộng cao với các tính năng bảo mật, hiệu suất và khả năng quản lý các mối đe dọa như virut, DDOS... đến các doanh nghiệp vừa và nhỏ, chi nhánh doanh nghiệp hoặc văn phòng làm việc.

View Datasheet FS-424D-FPOE

FortiSwitch FS-424D-FPOE có thể được quản lý trực tiếp từ giao diện FortiGate quen thuộc giống như các thiết bị Firewall của Fortigate thường dùng. Giao diện quản lý của Fortinet FS-424D-FPOE cung cấp khả năng hiển thị và kiểm soát hoàn toàn tất cả người dùng và thiết bị trên mạng, bất kể họ kết nối như thế nào.

FS-424D-FPOE Fortinet FortiSwitch 424D-FPOE 24 Ports GE RJ45 PoE+ 370W, 2x 10 GE SFP+ ports

Thông số kỹ thuật FortiSwitch FS-424D-FPOE

Hardware Specifications
Total Network Interfaces 24x GE RJ45 and 2x10 GE SFP+ ports Note: SFP+ ports are compatlble with 1 GE SFP
Dedicated Management 10/100 Port 1
RJ-45 Serial Console Port 1
Form Factor 1 RU Rack Mount
Power over Ethernet (PoE) Ports 24 (802.3af/at)
PoE Power Budget 370 W
Mean Time Between Failures > 10 years
System Specifications
Switching Capacity (Duplex) 88 Gbps
Packets Per Second (Duplex) 131 Mpps
MAC Address Storage 16 K
Network Latency < 1µs
VLANs Supported 4 K
Link Aggregation Group Size 8
Total Link Aggregation Groups Up to number of ports
Packet Buffers 1.5 MB
DRAM 1 GB
FLASH 128 MB
Dimensions
Height x Depth x Width (inches) 1.73 x 12.2 x 17.5
Height x Depth x Width (mm) 44 x 310 x 440
Weight 10.64 lbs (4.83 kg)
Environment
Power Required 100–240V AC, 50–60 Hz
Power Supply AC Built in
Redundant Power Optional FRPS-740
Power Consumption (Average / Maximum) 397 W / 403 W
Heat Dissipation 100 BTU/h
Operating Temperature 32–122°F (0–50°C)
Storage Temperature -4–158°F (-20–70°C)
Humidity 10–90% non-condensing
Certification and Compliance FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Nguồn sử dụng cho Switch Fortinet FS-424D-FPOE

External Redundant AC Power Supply FRPS-740 Redundant AC power supply for up to 2 units: FS-224D-FPOE, FS-248D-FPOE, FS-424D-FPOE-FPOE, FS-448D-POE and FS-424D-FPOE-POE

License cho Switch Fortinet FS-424D-FPOE

FortiSwitch Advanced Features License FS-SW-LIC-400 SW License for FS-400 Series Switches to activate Advanced Features.

Các loại Module quang sử dụng cho Switch Fortinet FS-424D-FPOE

Product

SKU

Description

1 GE SFP LX transceiver module

FG-TRAN-LX

1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots

1 GE SFP RJ45 transceiver module

FG-TRAN-GC

1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots

1 GE SFP SX transceiver module

FG-TRAN-SX

1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots

1 GE SFP RJ45 transceiver module

FS-TRAN-GC

1 GE SFP RJ45 transceiver module for systems with SFP/SFP+ slots

1 GE SFP SX transceivers, MMF, -40–85°C operation

FR-TRAN-SX

1 GE SFP SX transceiver module, -40–85°C, over MMF, for all systems with SFP and SFP/SFP+ slots

1 GE SFP LX transceivers, SMF, -40–85°C operation

FR-TRAN-LX

1 GE SFP LX transceiver module, -40–85°C, over SMF, for all systems with SFP and SFP/SFP+ slots

1 GE SFP transceivers, 90 km range, -40–85°C operation

FR-TRAN-ZX

1 GE SFP transceivers, -40–85°C operation, 90 km range for all systems with SFP slots

10 GE SFP+ transceiver module, short range

FG-TRAN-SFP+SR

10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots

10 GE XFP transceiver module, short range

FG-TRAN-XFPSR

10 GE XFP transceiver module, short range for all systems with XFP slots

10 GE SFP+ transceiver module, long range

FG-TRAN-SFP+LR

10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots

10 GE XFP transceiver module, long range

FG-TRAN-XFPLR

10 GE XFP transceiver module, long range for all systems with XFP slots

10 GE SFP+ active direct attach cable, 10m / 32.8 ft

SP-CABLE-ADASFP+

10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots

10 GE copper SFP+ transceiver module, up to 30m

FS-TRAN-SFP+GC

10 GE copper SFP+ RJ45 transceiver, up to 30m

10 GE SFP+ transceiver module, short range

FS-TRAN-SFP+SR

10 GE SFP+ transceiver module, short range for SFP/SFP+ slots

10 GE SFP+ transceivers, extended range

FS-TRAN-SFP+ER

10 GE SFP+ transceiver module, extended range for Fortinet systems with SFP+ slots

10 GE SFP+ transceivers, long range multimode

FS-TRAN-SFP+LRM

10 GE SFP+ transceiver module, long range multimode for Fortinet systems with SFP+ slots

10 GE SFP+ passive direct attach cable

SP-CABLE-FS-SFP+1

10 GE SFP+ passive direct attach cable, 1 m for systems with SFP+ and SFP/SFP+ slots

10 GE SFP+ passive direct attach Cable

SP-CABLE-FS-SFP+3

10 GE SFP+ passive direct attach cable, 3 m for systems with SFP+ and SFP/SFP+ slots

10 GE SFP+ passive direct attach cable

SP-CABLE-FS-SFP+5

10 GE SFP+ passive direct attach cable, 5 m for systems with SFP+ and SFP/SFP+ slots

10 GE SFP+ passive direct attach cable

SP-CABLE-FS-SFP+7

10 GE SFP+ passive direct attach cable, 7 m for systems with SFP+ and SFP/SFP+ slot

Bạn đang cần tư vấn về sản phẩm: FS-424D-FPOE ?

Có 4 bình luận:
Q
Quế
Băng thông chuyển mạch con FS-424D-FPOE Fortinet FortiSwitch 424D-FPOE 24 Ports GE PoE+, 2x 10GE SFP+ là bao nhiêu shop? có CO, CQ không
V
Quang VinhQuản trị viên

Băng thông chuyển mạch của thiết bị chuyển mạch Fortinet FortiSwitch FS-424D-FPOE là 88Gbps. Sản phẩm do CNTTShop phân phối có đầy đủ CO, CQ kèm theo nhé bạn.

V
Vượng
Mình cần mua thiết bị cũng như hỗ trợ triển khai và cấu hình, shop gửi giúp mình báo giá của switch Fortinet FS-424D-FPOE và chi phí hỗ trợ nhé
P
Thanh PhongQuản trị viên

Báo giá của switch Fortinet FS-424D-FPOE đã được gửi vào mail của bạn. Bạn vui lòng check mail nhé. Nếu cần tư vấn hay có thắc mắc gì khác, bạn vui lòng liên hệ với shop nhé.

T
Thư
Shop cho tôi xin datasheet của switch Fortinet FS-424D-FPOE với, tôi cần xem thông số chi tiết và các tính năng của thiết bị
P
Thanh PhongQuản trị viên

Datasheet của switch Fortinet FS-424D-FPOE đã được gửi vào mail của bạn, bạn vui lòng check giúp shop nha. Nếu có thắc mắc gì khác, hãy liên hệ với shop qua hotline 0906.051.599 để được tư vấn một cách chi tiết hơn bạn nhé

V
Switch Fortinet FS-424D-FPOE này có tính năng routing không vậy shop
P
Thanh PhongQuản trị viên

Switch Fortinet FS-424D-FPOE có tính năng routing bạn nhé
