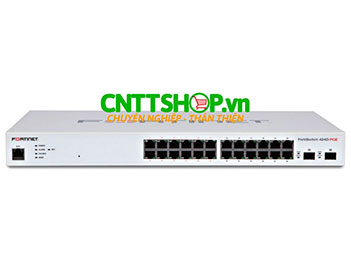

FS-424D-POE Fortinet FortiSwitch 424D-POE 24 Ports GE RJ45 PoE+ 185W, 2x 10 GE SFP+ ports
Fortinet SKU : FS-424D-POE
Fortinet Product : FortiSwitch 424D-POE
List Price : $1550.00
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ
Mô tả tổng quan
FortiSwitch FS-424D-POE cung cấp các giải pháp kết nối mạng an toàn, đơn giản, khả năng mở rộng cao với các tính năng bảo mật, hiệu suất và khả năng quản lý các mối đe dọa như virut, DDOS... đến các doanh nghiệp vừa và nhỏ, chi nhánh doanh nghiệp hoặc văn phòng làm việc.
| View Datasheet FS-424D-POE |
FortiSwitch FS-424D-POE có thể được quản lý trực tiếp từ giao diện FortiGate quen thuộc giống như các thiết bị Firewall của Fortigate thường dùng. Giao diện quản lý của Fortinet FS-424D-POE cung cấp khả năng hiển thị và kiểm soát hoàn toàn tất cả người dùng và thiết bị trên mạng, bất kể họ kết nối như thế nào.
Thông số kỹ thuật FortiSwitch FS-424D-POE
| Hardware Specifications | |
| Total Network Interfaces | 24x GE RJ45 and 2x10 GE SFP+ ports Note: SFP+ ports are compatlble with 1 GE SFP |
| Dedicated Management 10/100 Port | 1 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 24 (802.3af/at) |
| PoE Power Budget | 185 W |
| Mean Time Between Failures | > 10 years |
| System Specifications | |
| Switching Capacity (Duplex) | 88 Gbps |
| Packets Per Second (Duplex) | 131 Mpps |
| MAC Address Storage | 16 K |
| Network Latency | < 1µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | Up to number of ports |
| Packet Buffers | 1.5 MB |
| DRAM | 1 GB |
| FLASH | 128 MB |
| Dimensions | |
| Height x Depth x Width (inches) | 1.75 x 10.12 x 17.3 |
| Height x Depth x Width (mm) | 44 x 250 x 440 |
| Weight | 8.42 lbs (3.82 kg) |
| Environment | |
| Power Required | 100–240V AC, 50–60 Hz |
| Power Supply | AC Built in |
| Redundant Power | Optional FRPS-740 |
| Power Consumption (Average / Maximum) | 208 W / 210 W |
| Heat Dissipation | 89 BTU/h |
| Operating Temperature | 32–122°F (0–50°C) |
| Storage Temperature | -4–158°F (-20–70°C) |
| Humidity | 10–90% non-condensing |
| Certification and Compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Nguồn sử dụng cho Switch Fortinet FS-424D-POE
| External Redundant AC Power Supply | FRPS-740 | Redundant AC power supply for up to 2 units: FS-224D-FPOE, FS-248D-FPOE, FS-424D-POE-FPOE, FS-448D-POE and FS-424D-POE-POE |
License cho Switch Fortinet FS-424D-POE
| FortiSwitch Advanced Features License | FS-SW-LIC-400 | SW License for FS-400 Series Switches to activate Advanced Features. |
Các loại Module quang sử dụng cho Switch Fortinet FS-424D-POE
|
Product |
SKU |
Description |
|
1 GE SFP LX transceiver module |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP RJ45 transceiver module |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP SX transceiver module |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP RJ45 transceiver module |
1 GE SFP RJ45 transceiver module for systems with SFP/SFP+ slots |
|
|
1 GE SFP SX transceivers, MMF, -40–85°C operation |
1 GE SFP SX transceiver module, -40–85°C, over MMF, for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP LX transceivers, SMF, -40–85°C operation |
1 GE SFP LX transceiver module, -40–85°C, over SMF, for all systems with SFP and SFP/SFP+ slots |
|
|
1 GE SFP transceivers, 90 km range, -40–85°C operation |
1 GE SFP transceivers, -40–85°C operation, 90 km range for all systems with SFP slots |
|
|
10 GE SFP+ transceiver module, short range |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
|
|
10 GE XFP transceiver module, short range |
10 GE XFP transceiver module, short range for all systems with XFP slots |
|
|
10 GE SFP+ transceiver module, long range |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
|
|
10 GE XFP transceiver module, long range |
10 GE XFP transceiver module, long range for all systems with XFP slots |
|
|
10 GE SFP+ active direct attach cable, 10m / 32.8 ft |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
|
|
10 GE copper SFP+ transceiver module, up to 30m |
FS-TRAN-SFP+GC |
10 GE copper SFP+ RJ45 transceiver, up to 30m |
|
10 GE SFP+ transceiver module, short range |
10 GE SFP+ transceiver module, short range for SFP/SFP+ slots |
|
|
10 GE SFP+ transceivers, extended range |
10 GE SFP+ transceiver module, extended range for Fortinet systems with SFP+ slots |
|
|
10 GE SFP+ transceivers, long range multimode |
10 GE SFP+ transceiver module, long range multimode for Fortinet systems with SFP+ slots |
|
|
10 GE SFP+ passive direct attach cable |
SP-CABLE-FS-SFP+1 |
10 GE SFP+ passive direct attach cable, 1 m for systems with SFP+ and SFP/SFP+ slots |
|
10 GE SFP+ passive direct attach Cable |
SP-CABLE-FS-SFP+3 |
10 GE SFP+ passive direct attach cable, 3 m for systems with SFP+ and SFP/SFP+ slots |
|
10 GE SFP+ passive direct attach cable |
SP-CABLE-FS-SFP+5 |
10 GE SFP+ passive direct attach cable, 5 m for systems with SFP+ and SFP/SFP+ slots |
|
10 GE SFP+ passive direct attach cable |
SP-CABLE-FS-SFP+7 |
10 GE SFP+ passive direct attach cable, 7 m for systems with SFP+ and SFP/SFP+ slot |
