JQ074A HPE FlexFabric 5945 48SFP28 8QSFP28 Switch
HPE JQ074A FlexFabric 5945 48 SFP28, 8 QSFP28 Switch
HPE Part Number : JQ074A
Bảo hành : 12 tháng
List Price : $
Made In : China
Stock : Liên hệ
Mô tả sản phẩm
Thiết bị chuyển mạch HPE JQ074A là là dòng sản phẩm có công suất lớn, độ trễ cực thấp và top-of-rack (ToR) connectivity là một phần của giải pháp HPE FlexFabric (Tham khảo kiến trúc Cloud-First của HPE).
| View Datasheet JQ074A |
Với sự gia tăng các ứng dụng ảo hóa và lưu lượng từ máy chủ đến máy chủ, khách hàng yêu cầu các thiết bị chuyển mạch trung tâm và ToR có thể đáp ứng các yêu cầu về thông lượng của họ. Với switch HPE JQ074A, các trung tâm dữ liệu hiện có thể hỗ trợ tới 100 Gb trên mỗi cổng, cho phép kết nối máy chủ hiệu năng cao và khả năng xử lý các môi trường ảo. Điều này có sẵn trong Bộ chuyển mạch HPE FlexFabric JQ074A có độ trễ thấp.

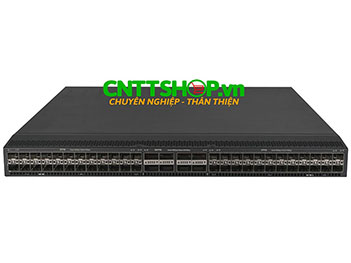

Hình ảnh switch HPE JQ074A do CNTTShop cung cấp
Thông số kỹ thuật chi tiết của thiết bị chuyển mạch HPE JQ074A :
| I/O ports and slots |
48 x 25G SFP28 ports 8 x 100G QSFP28 ports 2 x 1G SFP ports Supports 48 x 10/25GbE and 8 x 100GbE fixed ports, or up to 80 x 10GbE ports when using splitter cables |
| Additional ports and slots |
1 x console port 1 x mini USB port 1 x USB port 2 x out-of-band management ports (one fiber port and one copper port) |
| Power supplies |
2 power supply slots 1 minimum power supply required (ordered separately) |
| Fan tray |
5 fan tray slots The customer must order fan trays, as they are not included with the switch. This system requires same-direction airflow fan trays to function properly. The system should not be operated with only five fan trays for more than 24 hours. The system should not be operated without a fan tray for more than two minutes. The system should not be operated outside of the temperature range of 32°F (0°C) to 113°F (45°C). Failure to comply with these operating requirements may void the product warranty. |
| Physical characteristics |
Dimensions: 43.6 x 440 x 460 mm (1.72 x 17.32 x 18.11 in) |
| Memory and processor | 1 GB flash; packet buffer size: 32 MB, 8 GB SDRAM |
| Mounting and enclosure | Rack Mount 1U |
| Performance |
Latency < 1 µs (64-byte packets) up to 2003 Mpps |
| Environment |
Operating temperature: 32°F to 113°F (0°C to 45°C) |
| Electrical characteristics |
Frequency: 50/60 Hz
Maximum power rating: 650 W |
| Safety | UL 60950-1, CAN/CSA C22.2 No 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 60950-1, FDA 21 CFR Subchapter J |
| Emissions | FCC Part 15 (CFR 47) CLASS A, ICES-003 CLASS A, VCCI CLASS A, CISPR 32 CLASS A , EN 55032 CLASS A, AS/NZS CISPR32 CLASS A, EN 61000-3-2, EN 61000-3-3, ETSI EN 300 386 |
| Immunity | CISPR 24, EN 55024, ETSI EN 300 386 |
| Management | IMC; CLI; out-of-band management; SNMP Manager; Telnet; FTP |
| Services | Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
Các loại Module quang sử dụng cho Switch HPE JQ074A
| JD102B | HPE X115 100M SFP LC FX Transceiver |
| JD120B | HPE X110 100M SFP LC LX Transceiver |
| JD089B | HPE X120 1G SFP RJ45 T Transceiver |
| JD118B | HPE X120 1G SFP LC SX Transceiver |
| JD119B | HPE X120 1G SFP LC LX Transceiver |
| JL437A | HPE X130 10G SFP+ LC SR Data Center Transceiver |
| JL439A | HPE X130 10G SFP+ LC LR Data Center Transceiver |
| JD095C | HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable |
| JD096C | HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable |
| JD097C | HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable |
| HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable | |
| HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable | |
| HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable | |
| HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable | |
| HPE X190 25G SFP28 LC SR 100m MM Transceiver | |
| HPE X240 25G SFP28 to SFP28 1m Direct Attach Copper Cable | |
| HPE X240 25G SFP28 to SFP28 3m Direct Attach Copper Cable | |
| HPE X140 40G QSFP+ MPO SR4 Transceiver | |
| HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver | |
| JL251A | HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver |
| JG661A | HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver |
| JL286A | HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver |
| JG326A | HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable |
| JG327A | HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable |
| JG328A | HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable |
| JG329A | HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable |
| JG330A | HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
| JG331A | HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable |
| JL287A | HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable |
| JL288A | HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable |
| JL289A | HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable |
| JL274A | HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver |
| JH420A | HPE X150 100G QSFP28 MPO PSM4 500m SM Transceiver |
| JL275A | HPE X150 100G QSFP28 LC LR4 10km SM Transceiver |
| JH673A | HPE X150 100G QSFP28 CWDM4 2km SM Transceiver |
| JL271A | HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable |
| JL272A | HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable |
| JL273A | HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable |
| JL276A | HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable |
| JL277A | HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable |
| JL278A | HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable |
| JL282A | HPE X240 QSFP28 4xSFP28 1m Direct Attach Copper Cable |
| JL283A | HPE X240 QSFP28 4xSFP28 3m Direct Attach Copper Cable |
| JL284A | HPE X240 QSFP28 4xSFP28 5m Direct Attach Copper Cable |
Nguồn và quạt sử dụng cho switch HPE JQ074A
| JC680A | HPE 58x0AF 650W AC Power Supply |
| JH336A | HPE SW 650W 48V NEBS DC PSU |
| JH389A | HPE X712 Bck(pwr)-Frt(prt) HV2 Fan Tray |
| JH388A | HPE X711 Frt(prt)-Bck(pwr) HV2 Fan Tray |
