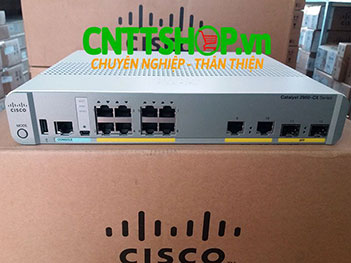

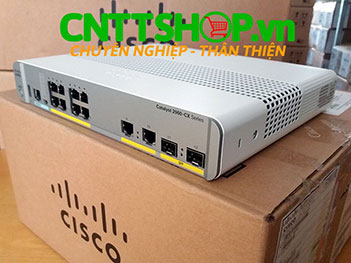

Switch Cisco WS-C2960CX-8TC-L

Performance

Forwarding Bandwidth

12 Gbps

Switching Bandwidth (full-duplex capacity)

24 Gbps

Flash memory

128 MB

Memory DRAM

512 MB

Max VLANs

255

VLAN IDs

4000

Maximum transmission unit (MTU)

Up to 9000 bytes

Jumbo frames

9198 bytes

Forwarding rate 64 Byte Packet Cisco Catalyst WS-C3560CX-8PT-S

2960CX-8TC-L

17.9 mpps

Connectors and cabling

Cisco Catalyst 3560-CX and 2960-CX Ethernet Interfaces:

- 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

- 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

- 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

- 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Cisco Catalyst 3560-CX and 2960-CX SFP and SFP+ interfaces:

For information about supported SFP/SFP+ modules, refer to the Transceiver Compatibility matrix tables at http://www.cisco.com/c/en/us/support/interfaces-modules/transceiver-modules/products-device-support-tables-list.html

Power connectors

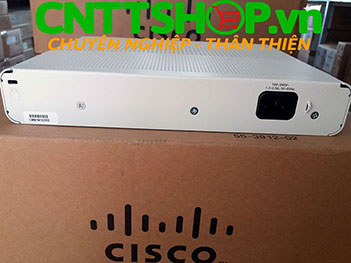

- Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit

- The internal power supply supports input voltages between 100 and 240VAC

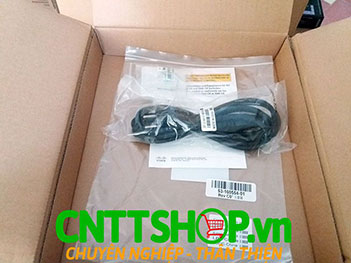

- Use the supplied AC power cord to connect the AC power connector to an AC power outlet

Per-port status: Link integrity, disabled, activity, speed, full-duplex

System status: System, link status, link duplex, link speed

Dimensions
(H x W x D)

2960-CX

Inches

Centimeters

2960CX-8TC-L

1.75 x 10.6 x 8.4

4.44 x 26.9 x 21.3

Weight

Cisco Catalyst 3560-CX

Pounds

Kilograms

2960CX-8TC-L

3.8

1.72

Environmental ranges

Cisco Catalyst 2960CX

Operating* temperature up to 5000 ft (1524 m)

-5°C to +45°C**

+23°F to +113°F

Operating* temperature up to 10,000 ft (3048 m)

-5°C to +45°C

+23°F to +113°F

Storage temperature up to 15,000 ft (4572 m)

-25°C to +70°C

-13°F to +158°F

Operating altitude

Up to 3048 m

Up to 10,000 ft

Storage altitude

Up to 4000 m

Up to 15,000 ft

Operating relative humidity

5% to 95% noncondensing

Storage relative humidity

5% to 95% noncondensing

Mean time between failure (MTBF)

Cisco Catalyst 3560-CX

MTBF

WS-C2960CX-8TC-L

756,260
