Juniper QFX10002-60C QFX10002 system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+

Name: QFX10002-60C
Brand: Juniper
SKU: QFX10002-60C
Availability: InStock
Rating: 5 (45 reviews)

Juniper Part Number : QFX10002-60C
Bảo hành : 12 tháng
List Price : $170,000
Made In : China
Stock : Liên hệ

Lưu ý: Giấy phép phần mềm Base Services không được bao gồm trong phần cứng QFX10002-60C và được bán riêng. Để xem các tính năng hỗ trợ trên switch vui lòng xem chi tiết trong license software.

Mô tả tổng quan

Switch Juniper QFX10002-60C cung cấp các tùy chọn 100GbE, 40GbE và 10GbE trong 2 U form factor. Thiết bị chuyển mạch QFX10002-60C hỗ trợ các quad small form-factor với bộ thu phát (QSFP +) và cổng QSFP28 cho tốc độ 40GbE và 100GbE tương ứng, hỗ trợ 10GbE, 40GbE và 100GbE trong một nền tảng duy nhất,phù hợp với trung tâm dữ liệu ngày nay.

View Datasheet QFX10002-60C

QFX10002-60C cho phép thiết kế mạng đơn giản, hợp nhất và cho phép khách hàng phát triển liên tục các mạng trung tâm dữ liệu từ các kiến trúc 10GbE và 40GbE hiện tại lên 100GbE để theo kịp nhu cầu phát triển.

Phân phối Switch Juniper QFX10002-60C QFX10002 system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+ chính hãng giá tốt

Thông số kỹ thuật Switch Juniper QFX10002-60C

Hardware
System throughput	Up to 12 Tbps
Forwarding capacity	Up to 4 Bpps
Maximum 10GbE port density	192
Maximum 40GbE port density	60
Maximum 100GbE port density	60
Dimensions (W x H x D)	17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)
Weight	80.5 lbs. (36.5 kgs)
Operating System	Junos OS
CPU	Intel Ivy Bridge 4C/2.3GHz processor
Management and Precision Time Protocol (PTP) interfaces	• 1 small form-factor pluggable transceiver (SFP/SFP +) port for PTP Grandmaster • Fiber (SFP) or 10/100/1000BASE-T (RJ-45) Ethernet management port • SMB In, SMB Out, 10 MHz In, 10 MHz Out • One Console port • USB 2.0 storage interface
Power	4x 1600 AC/ DC power supply
Cooling	• Front-to-back airflow • 3 hot-swappable fan modules with redundant fans
Total packet buffer	24 GB
Latency	• As low as 2.5 microseconds within a PFE • As low as 5.5 microseconds across PFEs
Warranty	Juniper standard one-year warranty

QFX10002-60C Scale (Unidimensional)

Media access control (MAC) addresses	Up to 1 million
ARP entries	Up to 340,000, or 64,000 per PFE
Jumbo frames	9,216 bytes maximum
VLANs	4,000
Forwarding information base (FIB) (IPv4/IPv6)	Up to 2 million
Routing Information Base (RIB) (v4)	10 million
Routing Information Base (RIB) (v6)	6 million
Host routes	Up to 2 million
ECMP	64-way
IPv4 multicast routes	Up to 128,000
IPv6 multicast routes	Up to 128,000
Multicast groups	Up to 128,000
Filters	Up to 8,000
Filter terms	Up to 64,000
Policers	Up to 8,000
Output queues per port	8
VOQs	192,000 per PFE
LAGs	192
Members per LAG	64
BGP neighbors (Premium Feature License)	1,024
Generic routing encapsulation (GRE) tunnels	3000
MPLS L3 VPNs (Advanced Feature License)	4,000
LSPs (ingress/ egress/transit) (Advanced Feature License)	16,000

Power Supply và Fans có thể sử dụng cho Switch Juniper QFX10002-60C

JPSU-1600W-DC-AFO	QFX10002 1600 W DC power supply
JPSU-1600W-AC-AFO	QFX10002 1600 W AC power supply

License Software sử dụng cho Switch Juniper QFX10002-60C

QFX10002-60C-PFL	QFX10002-60C Premium Feature License
QFX10002-60C-AFL	QFX10002-60C Advanced Feature License
QFX10002-60C-LFIB	QFX10002-60C 1 million FIB license
QFX10002-60C-XLFIB	QFX10002-60C 2 million FIB license

Module quang Juniper có thể sử dụng cho Switch Juniper QFX10002-60C

JNP-QSFP-100G-SR4	QSFP28 100GBASE-SR4 optics for up to 100 m transmission over parallel multimode fiber-optic (MMF)
JNP-QSFP-100G-LR4	QSFP28 100GBASE-LR4 optics for up to 10 km transmission over serial single- mode fiber-optic (SMF)
JNP-QSFP-100G-PSM4	QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF
JNP-QSFP-100G-CWDM	QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF
JNP-QSFP28-AOC-10M	100GbE QSFP28 to QSFP28 active optical cables, 10 m
JNP-QSFP-40GE-IR4	QSFP+ 40GBASE-IR4 40 gigabit optics, 1,310 nm for up to 2 km transmission on SMF
JNP-QSFP-40G-LR4	QSFP+ 40GBASE-LR4 40 gigabit optics, 1,310 nm for up to 10 km transmission on SMF
JNP-QSFP-40G-LX4	QSFP+ 40GBASE-LX4 40 gigabit optics, 100 m (150 m) with OM3 (OM4) duplex MMF fiber
JNP-QSFP-4X10GE-IR	QSFP+ 40GBASE optics, up to 1.4 km transmission on parallel single mode (4X10GbE long reach up to 1.4 km)
JNP-QSFP-4X10GE-LR	QSFP+ 40GBASE optics, up to 10 km transmission on parallel single mode (4X10GbE long reach up to 10 km)
QFX-QSFP-40G-ESR4	QSFP+ 40GBASE-ESR4 40 gigabit optic. 300 m (400 m) with OM3 (OM4) MMF
QFX-QSFP-40G-SR4	QSFP+ 40GBASE-SR4 40 gigabit optics, 850 nm for up to 150 m transmission on MMF
JNP-QSFP-DAC-10MA	QSFP+ to QSFP+ Ethernet direct attach copper (DAC) (twinax copper cable) 10 m active
JNP-QSFP-DAC-7MA	QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 7 m active
JNP-QSFP-DAC-5M	QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 5 m passive
JNP-QSFP-DAC-5MA	QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 5 m active
QFX-QSFP-DAC-3M	QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 3 m passive
QFX-QSFP-DAC-1M	QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 1 m passive
JNP-QSFP-DACBO-10M	QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 10 m active
JNP-QSFP-DACBO-7MA	QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 7 m active
JNP-QSFP-DACBO-5MA	QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 5 m active
QFX-QSFP-DACBO-3M	QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 3 m
QFX-QSFP-DACBO-1M	QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 1 m
QFX-SFP-10GE-ER	SFP+ 10GBASE-ER 10-Gigabit Ethernet optics, 1,550 nm for 40 km transmission on SMF
QFX-SFP-10GE-LR	SFP+ 10GBASE-LR 10-Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF
QFX-SFP-10GE-SR	SFP+ 10GBASE-SR 10-Gigabit Ethernet optics, 850 nm for up to 300 m transmission on MMF
QFX-SFP-10GE-USR	SFP+ 10-Gigabit Ethernet ultra-short reach optics, 850 nm for 10 m on OM1, 20 m on OM2, 100 m on OM3 multimode fiber
QFX-SFP-DAC-10MA	SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 10 m
QFX-SFP-DAC-7MA	SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 7 m
QFX-SFP-DAC-5MA	SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 5 m
QFX-SFP-DAC-3M	SFP+ 10-Gigabit Ethernet DAC (twinax copper cable) 3 m
QFX-SFP-DAC-3MA	SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 3 m
QFX-SFP-DAC-1M	SFP+ 10-Gigabit Ethernet DAC (twinax copper cable) 1 m
QFX-SFP-DAC-1MA	SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 1 m
QFX-SFP-1GE-LX	SFP 1000BASE-LX Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF
QFX-SFP-1GE-SX	SFP 1000BASE-SX Gigabit Ethernet optics, 850 nm for up to 550 m transmission on MMF
QFX-SFP-1GE-T	SFP 1000BASE-T copper transceiver module for up to 100 m transmission on Cat5

Để có cấu hình, yêu cầu kỹ thuật chi tiết của Switch Juniper QFX10002-60C cho vào hồ sơ tư vấn, thiết kế kỹ thuật hoặc cho vào hồ sơ mời thầu, quý khách vui lòng gửi email yêu cầu đến kd@cnttshop.vn

Bạn đang cần tư vấn về sản phẩm: QFX10002-60C ?

Bạn đang cần tư vấn về sản phẩm QFX10002-60C và giải pháp mạng? Vui lòng để lại số điện thoại hoặc lời nhắn, nhân viên cnttshop.vn sẽ liên hệ trả lời bạn sớm nhất.

Có 0 bình luận:

Thông tin liên hệ

Hỗ trợ kinh doanh

Ms. Huyền

0979 925 386

Ms. Tuyên

0369 832 657

Ms. Hằng

0862.323.559

Ms. Quỳnh Anh

0966 658 525

Ms. Lan Anh

0862 158 859

Ms. Quý

096 350 6565

Ms. Thảo

0358 265 666

Hỗ trợ kỹ thuật

Mr. Hiếu

0981 264 462

Mr. Đạt

0369 402 427

Mr. Vinh

0973 805 082

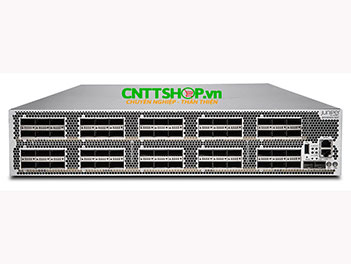

QFX10002-60C Juniper QFX10002 with 60-port 100GbE QSFP28/60-port 40GbE QSFP+/192-port 10GbE SFP+
