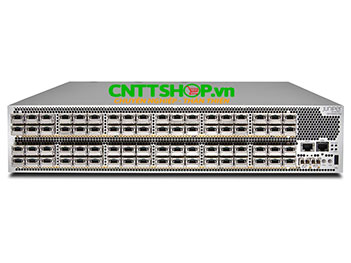

Juniper QFX10002-72Q-DC QFX10002 system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+
Juniper Part Number : QFX10002-72Q-DC
Bảo hành : 12 tháng
List Price : $170,000
Made In : China
Stock : Liên hệ
Lưu ý: Giấy phép phần mềm Base Services không được bao gồm trong phần cứng QFX10002-72Q-DC và được bán riêng. Để xem các tính năng hỗ trợ trên switch vui lòng xem chi tiết trong license software.
Mô tả tổng quan
Switch Juniper QFX10002-72Q-DC cung cấp các tùy chọn 100GbE, 40GbE và 10GbE trong 2 U form factor. Thiết bị chuyển mạch QFX10002-72Q-DC hỗ trợ các quad small form-factor với bộ thu phát (QSFP +) và cổng QSFP28 cho tốc độ 40GbE và 100GbE tương ứng, hỗ trợ 10GbE, 40GbE và 100GbE trong một nền tảng duy nhất,phù hợp với trung tâm dữ liệu ngày nay.
QFX10002-72Q-DC cho phép thiết kế mạng đơn giản, hợp nhất và cho phép khách hàng phát triển liên tục các mạng trung tâm dữ liệu từ các kiến trúc 10GbE và 40GbE hiện tại lên 100GbE để theo kịp nhu cầu phát triển.
Thông số kỹ thuật Switch Juniper QFX10002-72Q-DC
| Hardware |
| System throughput |
Up to 12 Tbps |
| Forwarding capacity |
Up to 4 Bpps |
| Maximum 10GbE port density |
192 |
| Maximum 40GbE port density |
60 |
| Maximum 100GbE port density |
60 |
| Dimensions (W x H x D) |
17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm) |
| Weight |
80.5 lbs. (36.5 kgs) |
| Operating System |
Junos OS |
| CPU |
Intel Ivy Bridge 4C/2.3GHz processor |
| Management and Precision Time Protocol (PTP) interfaces |
• 1 small form-factor pluggable transceiver (SFP/SFP +) port for PTP Grandmaster
• Fiber (SFP) or 10/100/1000BASE-T (RJ-45) Ethernet management port
• SMB In, SMB Out, 10 MHz In, 10 MHz Out
• One Console port
• USB 2.0 storage interface
|
| Power |
4x 1600 AC/ DC power supply |
| Cooling |
• Front-to-back airflow
• 3 hot-swappable fan modules with redundant fans
|
| Total packet buffer |
24 GB |
| Latency |
• As low as 2.5 microseconds within a PFE
• As low as 5.5 microseconds across PFEs
|
| Warranty |
Juniper standard one-year warranty |
QFX10002-72Q-DC Scale (Unidimensional)
| Media access control (MAC) addresses |
512,000; up to 96,000 learned per PFE |
| ARP entries |
Up to 340,000, or 64,000 per PFE |
| Jumbo frames |
9,216 bytes maximum |
| VLANs |
4,000 |
| Forwarding information base (FIB) (IPv4/IPv6) |
Up to 2 million |
| Routing Information Base (RIB) (v4) |
10 million |
| Routing Information Base (RIB) (v6) |
4 million |
| Host routes |
Up to 2 million |
| ECMP |
64-way |
| IPv4 multicast routes |
Up to 128,000 |
| IPv6 multicast routes |
Up to 128,000 |
| Multicast groups |
Up to 128,000 |
| Filters |
Up to 8,000 |
| Filter terms |
Up to 64,000 |
| Policers |
Up to 8,000 |
| Output queues per port |
8 |
| VOQs |
384,000 per PFE |
| LAGs |
144 |
| Members per LAG |
64 |
| BGP neighbors (Premium Feature License) |
1,024 |
| Generic routing encapsulation (GRE) tunnels |
2,000 |
| MPLS L3 VPNs (Advanced Feature License) |
4,000 |
| LSPs (ingress/ egress/transit) (Advanced Feature License) |
4,000 |
Power Supply và Fans có thể sử dụng cho Switch Juniper QFX10002-72Q-DC
| JPSU-1600W-DC-AFO |
QFX10002 1600 W DC power supply |
| JPSU-1600W-AC-AFO |
QFX10002 1600 W AC power supply |
License Software sử dụng cho Switch Juniper QFX10002-72Q-DC
| QFX10002-72Q-DC-PFL |
QFX10002-72Q-DC Premium Feature License |
| QFX10002-72Q-DC-AFL |
QFX10002-72Q-DC Advanced Feature License |
| QFX10002-72Q-DC-LFIB |
QFX10002-72Q-DC 1 million FIB license |
| QFX10002-72Q-DC-XLFIB |
QFX10002-72Q-DC 2 million FIB license |
Module quang Juniper có thể sử dụng cho Switch Juniper QFX10002-72Q-DC
|
JNP-QSFP-100G-SR4
|
QSFP28 100GBASE-SR4 optics for up to 100 m transmission over parallel multimode fiber-optic (MMF)
|
|
JNP-QSFP-100G-LR4
|
QSFP28 100GBASE-LR4 optics for up to 10 km transmission over serial single- mode fiber-optic (SMF)
|
|
JNP-QSFP-100G-PSM4
|
QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF
|
|
JNP-QSFP-100G-CWDM
|
QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF
|
|
JNP-QSFP28-AOC-10M
|
100GbE QSFP28 to QSFP28 active optical cables, 10 m
|
|
JNP-QSFP-40GE-IR4
|
QSFP+ 40GBASE-IR4 40 gigabit optics, 1,310 nm for up to 2 km transmission on SMF
|
|
JNP-QSFP-40G-LR4
|
QSFP+ 40GBASE-LR4 40 gigabit optics, 1,310 nm for up to 10 km transmission on SMF
|
|
JNP-QSFP-40G-LX4
|
QSFP+ 40GBASE-LX4 40 gigabit optics, 100 m (150 m) with OM3 (OM4) duplex MMF fiber
|
|
JNP-QSFP-4X10GE-IR
|
QSFP+ 40GBASE optics, up to 1.4 km transmission on parallel single mode (4X10GbE long reach up to 1.4 km)
|
|
JNP-QSFP-4X10GE-LR
|
QSFP+ 40GBASE optics, up to 10 km transmission on parallel single mode (4X10GbE long reach up to 10 km)
|
|
QFX-QSFP-40G-ESR4
|
QSFP+ 40GBASE-ESR4 40 gigabit optic. 300 m (400 m) with OM3 (OM4) MMF
|
|
QFX-QSFP-40G-SR4
|
QSFP+ 40GBASE-SR4 40 gigabit optics, 850 nm for up to 150 m transmission on MMF
|
|
JNP-QSFP-DAC-10MA
|
QSFP+ to QSFP+ Ethernet direct attach copper (DAC) (twinax copper cable) 10 m active
|
|
JNP-QSFP-DAC-7MA
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 7 m active
|
|
JNP-QSFP-DAC-5M
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 5 m passive
|
|
JNP-QSFP-DAC-5MA
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 5 m active
|
|
QFX-QSFP-DAC-3M
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 3 m passive
|
|
QFX-QSFP-DAC-1M
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 1 m passive
|
|
JNP-QSFP-DACBO-10M
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 10 m active
|
|
JNP-QSFP-DACBO-7MA
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 7 m active
|
|
JNP-QSFP-DACBO-5MA
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 5 m active
|
|
QFX-QSFP-DACBO-3M
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 3 m
|
|
QFX-QSFP-DACBO-1M
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 1 m
|
|
QFX-SFP-10GE-ER
|
SFP+ 10GBASE-ER 10-Gigabit Ethernet optics, 1,550 nm for 40 km transmission on SMF
|
|
QFX-SFP-10GE-LR
|
SFP+ 10GBASE-LR 10-Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF
|
|
QFX-SFP-10GE-SR
|
SFP+ 10GBASE-SR 10-Gigabit Ethernet optics, 850 nm for up to 300 m transmission on MMF
|
|
QFX-SFP-10GE-USR
|
SFP+ 10-Gigabit Ethernet ultra-short reach optics, 850 nm for 10 m on OM1, 20 m on OM2, 100 m on OM3 multimode fiber
|
|
QFX-SFP-DAC-10MA
|
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 10 m
|
|
QFX-SFP-DAC-7MA
|
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 7 m
|
|
QFX-SFP-DAC-5MA
|
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 5 m
|
|
QFX-SFP-DAC-3M
|
SFP+ 10-Gigabit Ethernet DAC (twinax copper cable) 3 m
|
|
QFX-SFP-DAC-3MA
|
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 3 m
|
| QFX-SFP-DAC-1M |
SFP+ 10-Gigabit Ethernet DAC (twinax copper cable) 1 m |
| QFX-SFP-DAC-1MA |
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 1 m |
| QFX-SFP-1GE-LX |
SFP 1000BASE-LX Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF |
| QFX-SFP-1GE-SX |
SFP 1000BASE-SX Gigabit Ethernet optics, 850 nm for up to 550 m transmission on MMF |
| QFX-SFP-1GE-T |
SFP 1000BASE-T copper transceiver module for up to 100 m transmission on Cat5 |
Để có cấu hình, yêu cầu kỹ thuật chi tiết của Switch Juniper QFX10002-72Q-DC cho vào hồ sơ tư vấn, thiết kế kỹ thuật hoặc cho vào hồ sơ mời thầu, quý khách vui lòng gửi email yêu cầu đến kd@cnttshop.vn
Juniper QFX10002-72Q-DC QFX10002 system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+
Juniper Part Number : QFX10002-72Q-DC
Bảo hành : 12 tháng
List Price : $170,000
Made In : China
Stock : Liên hệ
Lưu ý: Giấy phép phần mềm Base Services không được bao gồm trong phần cứng QFX10002-72Q-DC và được bán riêng. Để xem các tính năng hỗ trợ trên switch vui lòng xem chi tiết trong license software.
Mô tả tổng quan
Switch Juniper QFX10002-72Q-DC cung cấp các tùy chọn 100GbE, 40GbE và 10GbE trong 2 U form factor. Thiết bị chuyển mạch QFX10002-72Q-DC hỗ trợ các quad small form-factor với bộ thu phát (QSFP +) và cổng QSFP28 cho tốc độ 40GbE và 100GbE tương ứng, hỗ trợ 10GbE, 40GbE và 100GbE trong một nền tảng duy nhất,phù hợp với trung tâm dữ liệu ngày nay.
QFX10002-72Q-DC cho phép thiết kế mạng đơn giản, hợp nhất và cho phép khách hàng phát triển liên tục các mạng trung tâm dữ liệu từ các kiến trúc 10GbE và 40GbE hiện tại lên 100GbE để theo kịp nhu cầu phát triển.
Thông số kỹ thuật Switch Juniper QFX10002-72Q-DC
| Hardware |
| System throughput |
Up to 5.76 Tbps |
| Forwarding capacity |
Up to 2 Bpps |
| Maximum 10GbE port density |
288 |
| Maximum 40GbE port density |
72 |
| Maximum 100GbE port density |
24 |
| Dimensions (W x H x D) |
17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm) |
| Weight |
68.6 lbs. (31 Kg) |
| Operating System |
Junos OS |
| CPU |
Intel Quad Core Ivy Bridge 2.5 GHz CPU, 16 GB SDRAM |
| Management and Precision Time Protocol (PTP) interfaces |
• 1 small form-factor pluggable transceiver (SFP/SFP +) port for PTP Grandmaster
• Fiber (SFP) or 10/100/1000BASE-T (RJ-45) Ethernet management port
• SMB In, SMB Out, 10 MHz In, 10 MHz Out
• One Console port
• USB 2.0 storage interface
|
| Power |
4x 1600 AC/ DC power supply |
| Cooling |
• Front-to-back airflow
• 3 hot-swappable fan modules with redundant fans
|
| Total packet buffer |
24 GB |
| Latency |
• As low as 2.5 microseconds within a PFE
• As low as 5.5 microseconds across PFEs
|
| Warranty |
Juniper standard one-year warranty |
Power Supply và Fans có thể sử dụng cho Switch Juniper QFX10002-72Q-DC
| QFX10002-72Q-PFL |
QFX10002 1600 W DC power supply |
| JPSU-1600W-AC-AFO |
QFX10002 1600 W AC power supply |
License Software sử dụng cho Switch Juniper QFX10002-72Q
| QFX10002-72Q-PFL |
QFX10002-72Q Premium Feature License |
| QFX10002-72Q-AFL |
QFX10002-72Q Advanced Feature License |
| QFX10002-72Q-LFIB |
1 million FIB license for QFX10002 72-port 40GbE QSFP+/24-port 100GbE QDFP28 switch |
Module quang Juniper có thể sử dụng cho Switch Juniper QFX10002-72Q
|
JNP-QSFP-100G-SR4
|
QSFP28 100GBASE-SR4 optics for up to 100 m transmission over parallel multimode fiber-optic (MMF)
|
|
JNP-QSFP-100G-LR4
|
QSFP28 100GBASE-LR4 optics for up to 10 km transmission over serial single- mode fiber-optic (SMF)
|
|
JNP-QSFP-100G-PSM4
|
QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF
|
|
JNP-QSFP-100G-CWDM
|
QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF
|
|
JNP-QSFP28-AOC-10M
|
100GbE QSFP28 to QSFP28 active optical cables, 10 m
|
|
JNP-QSFP-40GE-IR4
|
QSFP+ 40GBASE-IR4 40 gigabit optics, 1,310 nm for up to 2 km transmission on SMF
|
|
JNP-QSFP-40G-LR4
|
QSFP+ 40GBASE-LR4 40 gigabit optics, 1,310 nm for up to 10 km transmission on SMF
|
|
JNP-QSFP-40G-LX4
|
QSFP+ 40GBASE-LX4 40 gigabit optics, 100 m (150 m) with OM3 (OM4) duplex MMF fiber
|
|
JNP-QSFP-4X10GE-IR
|
QSFP+ 40GBASE optics, up to 1.4 km transmission on parallel single mode (4X10GbE long reach up to 1.4 km)
|
|
JNP-QSFP-4X10GE-LR
|
QSFP+ 40GBASE optics, up to 10 km transmission on parallel single mode (4X10GbE long reach up to 10 km)
|
|
QFX-QSFP-40G-ESR4
|
QSFP+ 40GBASE-ESR4 40 gigabit optic. 300 m (400 m) with OM3 (OM4) MMF
|
|
QFX-QSFP-40G-SR4
|
QSFP+ 40GBASE-SR4 40 gigabit optics, 850 nm for up to 150 m transmission on MMF
|
|
JNP-QSFP-DAC-10MA
|
QSFP+ to QSFP+ Ethernet direct attach copper (DAC) (twinax copper cable) 10 m active
|
|
JNP-QSFP-DAC-7MA
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 7 m active
|
|
JNP-QSFP-DAC-5M
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 5 m passive
|
|
JNP-QSFP-DAC-5MA
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 5 m active
|
|
QFX-QSFP-DAC-3M
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 3 m passive
|
|
QFX-QSFP-DAC-1M
|
QSFP+ to QSFP+ Ethernet DAC (twinax copper cable) 1 m passive
|
|
JNP-QSFP-DACBO-10M
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 10 m active
|
|
JNP-QSFP-DACBO-7MA
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 7 m active
|
|
JNP-QSFP-DACBO-5MA
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 5 m active
|
|
QFX-QSFP-DACBO-3M
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 3 m
|
|
QFX-QSFP-DACBO-1M
|
QSFP+ to SFP+ 10-Gigabit Ethernet direct attach break out copper (twinax copper cable) 1 m
|
|
QFX-SFP-10GE-ER
|
SFP+ 10GBASE-ER 10-Gigabit Ethernet optics, 1,550 nm for 40 km transmission on SMF
|
|
QFX-SFP-10GE-LR
|
SFP+ 10GBASE-LR 10-Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF
|
|
QFX-SFP-10GE-SR
|
SFP+ 10GBASE-SR 10-Gigabit Ethernet optics, 850 nm for up to 300 m transmission on MMF
|
|
QFX-SFP-10GE-USR
|
SFP+ 10-Gigabit Ethernet ultra-short reach optics, 850 nm for 10 m on OM1, 20 m on OM2, 100 m on OM3 multimode fiber
|
|
QFX-SFP-DAC-10MA
|
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 10 m
|
|
QFX-SFP-DAC-7MA
|
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 7 m
|
|
QFX-SFP-DAC-5MA
|
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 5 m
|
|
QFX-SFP-DAC-3M
|
SFP+ 10-Gigabit Ethernet DAC (twinax copper cable) 3 m
|
|
QFX-SFP-DAC-3MA
|
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 3 m
|
| QFX-SFP-DAC-1M |
SFP+ 10-Gigabit Ethernet DAC (twinax copper cable) 1 m |
| QFX-SFP-DAC-1MA |
SFP+ 10-Gigabit Ethernet DAC (active twinax copper cable) 1 m |
| QFX-SFP-1GE-LX |
SFP 1000BASE-LX Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF |
| QFX-SFP-1GE-SX |
SFP 1000BASE-SX Gigabit Ethernet optics, 850 nm for up to 550 m transmission on MMF |
| QFX-SFP-1GE-T |
SFP 1000BASE-T copper transceiver module for up to 100 m transmission on Cat5 |
Để có cấu hình, yêu cầu kỹ thuật chi tiết của Switch Juniper QFX10002-72Q-DC cho vào hồ sơ tư vấn, thiết kế kỹ thuật hoặc cho vào hồ sơ mời thầu, quý khách vui lòng gửi email yêu cầu đến kd@cnttshop.vn
Switch
.png){kind=icon}
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: QFX10002-72Q-DC ?
