Hardware Specifications
10/100/1000 Ethernet Ports	24 PoE+
Fixed Uplinks	4 x Gigabit Ethernet with Small Form‑Factor Pluggable (SFP)
Default AC Power Supply	640 WAC
Available PoE Power	390 W
Performance Specifications
Switching capacity	92 Gbps
Stacking bandwidth	160 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	24,000
FNF entries	24,000 flows
DRAM	4 GB
Flash	2 GB
VLAN IDs	4,094
Total switched virtual interfaces (SVIs)	1,000
Jumbo frame	9198 bytes
Total routed ports per 3650 stack	208
Wireless
Number of access points per switch/stack	25
Number of wireless clients per switch/stack	1000
Total number of WLANs per switch	64
Wireless bandwidth per switch	Up to 20 Gbps
Supported Aironet access point series	3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Forwarding Rate	41.66 Mpps
Dimensions
Dimensions (H x W x D) (Inches/Centimeters)	1.73 x 17.5 x 17.625 / 4.4 x 44.5 x 44.8
Weight (Pounds/Kilograms)	16.00/7.26
MTBF Hours	528,280
Environmental Ranges
With AC Power Supply Operating Environment and Altitude	-5ºC to +45ºC, up to 5000 feet (1500m) -5ºC to +40ºC, up to 10,000 feet (3000m) -5ºC to +35ºC, up to 13,000 feet (4000m) -5ºC to +30ºC, up to 16,400 feet (5000m)
With DC Power Supply Operating Environment and Altitude (NEBS)	-5ºC to +45ºC, up to 6000 feet (1800m) -5ºC to +40ºC, up to 10,000 feet (3000m) -5ºC to +35ºC, up to 13,000 feet (4000m) -5ºC to +30ºC, up to 16,400 feet (5000m)
Safety and Compliance
Safety Certifications	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, GOST, NOM (obtained by partners and distributors)
Electromagnetic Emissions Certifications	47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A), AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2 ,EN61000-3-3, KN22 Class A, KCC, CNS13438 Class A, EN55024, CISPR24, KN24

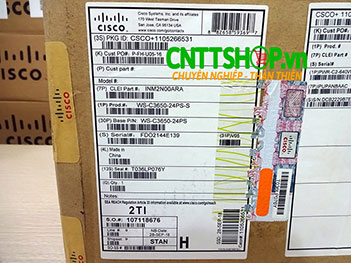

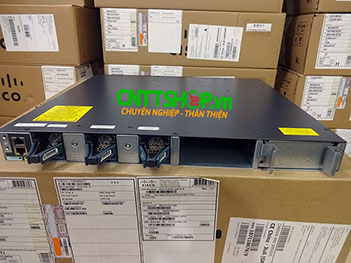

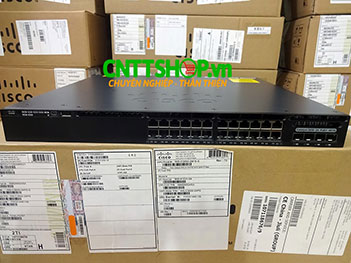

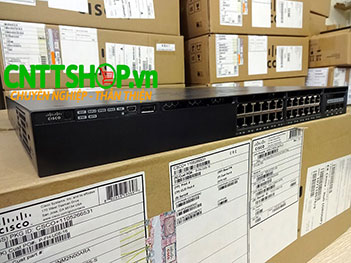

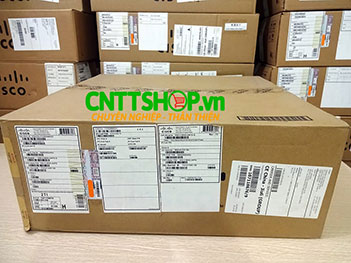

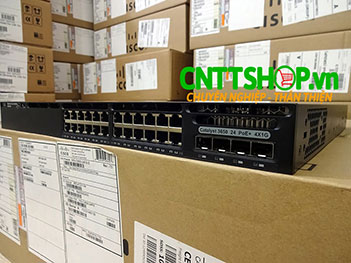

Switch Cisco WS-C3650-24PS-S 24 Ports GE PoE+ 4x1G Uplink IP Base
