Switch Cisco WS-C2960X-24TS-LL 24 GigE, 2 x 1G SFP, LAN Lite

Phân phối Thiết bị mạng Switch Cisco WS-C2960X-24TS-LL (WS C2960X 24TS LL) Catalyst 2960-X 24 GigE, 2 x 1G SFP, LAN Lite chính hãng giá tốt, sẵn hàng

Mã sản phẩm: WS-C2960X-24TS-LL



CHI TIẾT

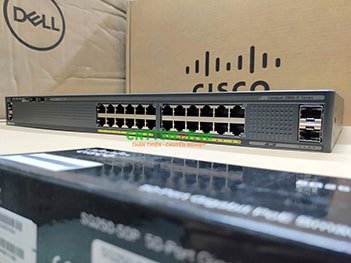

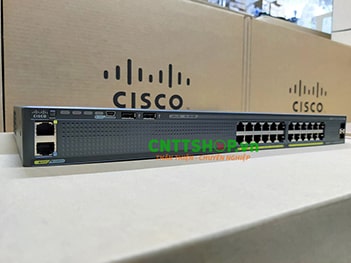

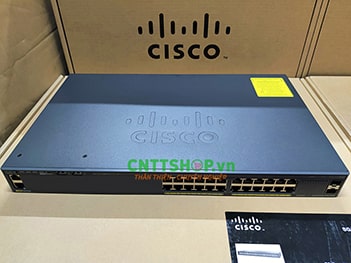

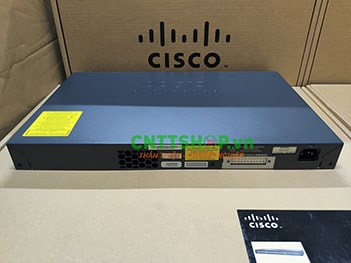

Switch Cisco WS-C2960X-24TS-LL Catalyst 2960-X 24 GigE, 2 x 1G SFP, LAN Lite

Cisco Part Number     : WS-C2960X-24TS-LL, WS-C2960X-24TS-LL​=
Bảo hành                       : 12 tháng
Made In                          : China
Stock                              : Hàng có sẵn

 View Datasheet

Thiết bị mạng Cisco 2960X WS-C2960X-24TS-LL được thiết kế để phù hợp với lớp Accees (lớp truy nhập mạng đầu cuối) với chi phí đầu tư là thấp nhất trong dòng Switch 2960X Series. Switch Cisco WS-C2960X-24TS-LL cung cấp 24 cổng Giga 10/100/1000 Mps Base-T với 02 Uplink GE SFP để kết nối đường quang Multimode hoặc Single Mode. WS-C2960X-24TS-LL sử dụng điện AC 220V.

Switch Cisco WS-C2960X-24TS-LL Catalyst 2960-X 24 GigE, 2 x 1G SFP, LAN Lite

Thông số kỹ thuật chi tiết của WS-C2960X-24TS-LL

Hardware specifications

Flash Memory

64 MB

DRAM

256 MB

CPU

APM86392 600 MHz dual core

Console ports

USB (Type B), Ethernet (RJ-45)

Storage interface

USB (Type A) for external flash storage

Network management interface

10/100 Mbps Ethernet (RJ-45)

Interface

24 10/100/1000 Ethernet ports

Uplink interfaces

2 x 1Gb SFP

Performance and scalability

Forwarding bandwidth

50 Gbps

Switching bandwidth

100 Gbps

Maximum active VLANs

64

VLAN IDs available

4096

Maximum Transmission Unit (MTU)-L3 packet

9198 bytes

Jumbo frame - Ethernet frame

9216 bytes

Forwarding rate: 64-byte Layer 3 packets

68.5 Mpps

Resource

Unicast MAC

16,000

ARP Entries

8000

IPv4 unicast direct routes

320

IPv4 unicast indirect routes

32

IPv6 unicast direct routes

256

IPv6 unicast indirect routes

0

IPv4 multicast routes and IGMP groups

1000

IPv6 multicast groups

1000

IPv4 QoS ACEs

384

IPv6 QoS ACEs

256

IPv4 security ACEs

256

IPv6 Security ACEs

256

Voltage and power ratings

Predicted reliability (MTBF in hours**)

622,350

Power rating

0.035KVA

DC input voltages

12V - 3A / 53V - 8A

Input voltage and current

100 to 240 VAC/1A to 0.5A/50 to 60 Hz

Dimensions

Inches (H x D x W)

1.73 x 11.03 x 17.5

Centimeters (H x D x W)

4.45 x 28.0 x 44.5

Pounds

12.8

Kilograms

5.8

Environmental ranges

Operating temperature up to 10,000 ft (3000 m)

23º to 113ºF / -5º to 45ºC

Operating altitude (Feet/Meters)

Up to 10,000/Up to 3000

Operating relative humidity

10% to 95% noncondensing

Safety and compliance (Safety)

UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1

Các module quang dưới đây có thể sử dụng cho Switch WS-C2960X-24TS-LL

Các module quang 1G Cisco cho WS-C2960X-24TS-LL

GLC-T

Module quang Cisco GLC-T 1000BASE-T, RJ-45 connector

GLC-TE

Module quang Cisco GLC-TE 1000BASE-T, RJ-45 connector

GLC-SX-MMD

Module quang Cisco GLC-SX-MMD 1000BASE-SX, MMF, DOM, 850 nm, 550m, Dual LC

GLC-LH-SMD

Module quang Cisco GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC

GLC-EX-SMD

Module quang Cisco GLC-EX-SMD 1000BASE-EX, SMF, DOM, 1310 nm, 40km, Dual LC

GLC-ZX-SMD

Module quang Cisco GLC-ZX-MMD 1000BASE-ZX, SMF, DOM, 1550 nm, 80km, Dual LC

GLC-SX-MM

Module quang Cisco GLC-SX-MM 1000BASE-SX, MMF, 850 nm, 550m, Dual LC

GLC-LH-SM

Module quang Cisco GLC-LH-SM 1000BASE-LX/LH, MMF/SMF, 1310 nm, 10km, Dual LC

GLC-ZX-SM

Module quang Cisco GLC-ZX-SM 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC

GLC-BX-D

Module quang Cisco GLC-BX-D 1000BASE-BX, SMF, 1490TX 1310RX, Single LC

GLC-BX-U

Module quang Cisco GLC-BX-D 1000BASE-BX, SMF, 1310TX 1490RX, Single LC

GLC-BX40-D-I

Module quang Cisco 1000BASE-BX40 SFP, 1550NM

GLC-BX40-U-I

Module quang Cisco 1000BASE-BX40 SFP, 1310NM

GLC-BX40-DA-I

Module quang Cisco 1000BASE-BX40 SFP, 1490NM

GLC-BX80-D-I

Module quang Cisco 1000BASE-BX80 SFP, 1570NM

GLC-BX80-U-I

Module quang Cisco 1000BASE-BX80 SFP, 1490NM

GLC-2BX-D

Module quang Cisco GLC-2BX-D 1000BASE-BX10, SMF, 1310TX 1490RX, 2 single LC/PC

SFP-GE-T

Module quang Cisco GLC-T 1000BASE-T, RJ-45 connector

SFP-GE-S

Module quang CiscoSFP-GE-S 1000BASE-SX, MMF, DOM, 850 nm, 550m

SFP-GE-L

Module quang Cisco SFP-GE-L 1000BASE-LX/LH, MMF/SMF DOM, 1300 nm, 10km, Dual LC

SFP-GE-Z

Module quang Cisco SFP-GE-Z 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC

GLC-SX-MM-RGD

Module quang Cisco GLC-SX-MM-RGD 1000BASE-SX, MMF, 850 nm, 550m, Dual LC, industrial

GLC-LX-SM-RGD

Module quang Cisco GLC-LX-SM-RGD 1000BASE-LX/LH, MMF/SMF, 1300 nm, 10km, Dual LC, industrial

GLC-ZX-SM-RGD

Module quang Cisco GLC-ZX-SM-RGD 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC, industrial

SFP-GPON-B

Module quang SFP-GPON-B GPON Class B+ SFP OLT, 1490TX 1310RX

SFP-GPON-C

Module quang SFP-GPON-C GPON Class C+ SFP OLT 1490TX 1310RX

SFP-GPON-B-I

Module quang SFP-GPON-B GPON Class B+ SFP OLT, 1490TX 1310RX, industrial

SFP-GPON-C-I

Module quang SFP-GPON-C GPON Class C+ SFP OLT 1490TX 1310RX, industrial

Các module quang OEM cho WS-C2960X-24TS-LL:

Part Depcription
GLC-LH-SMD-CL OEM GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC
GLC-SX-MMD-CL OEM GLC-SX-MMD 1000BASE-SX, MMF, DOM, 850 nm, 550m, Dual LC
GLC-EX-SMD-CL OEM GLC-EX-SMD 1000BASE-EX, SMF, DOM, 1310 nm, 40km, Dual LC
GLC-T-CL OEM GLC-T 1000BASE-T, RJ-45 connector
GLC-LH-SM-CL OEM GLC-T 1000BASE-T, RJ-45 connector
GLC-LH-SM-CL OEM GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC
GLC-SX-MM-CL OEM GLC-SX-MM 1000BASE-SX, MMF, 850 nm, 550m, Dual LC

Các Stack Module, Stack  dùng cho Switch Cisco C2960X – C2960XR:

Part Number

Description

C2960X-STACK

FlexStack-Plus hot-swappable stacking module

C2960X-FIBER-STK

FlexStack-Extended Fiber stacking module

C2960X-HYBRID-STK

FlexStack-Extended Hybrid module, with one copper and one fiber port

CAB-STK-E-0.5M

Stacking cable with a 0.5 m length

CAB-STK-E-1M

Stacking cable with a 1.0 m length

CAB-STK-E-3M

Stacking cable with a 3.0 m length
